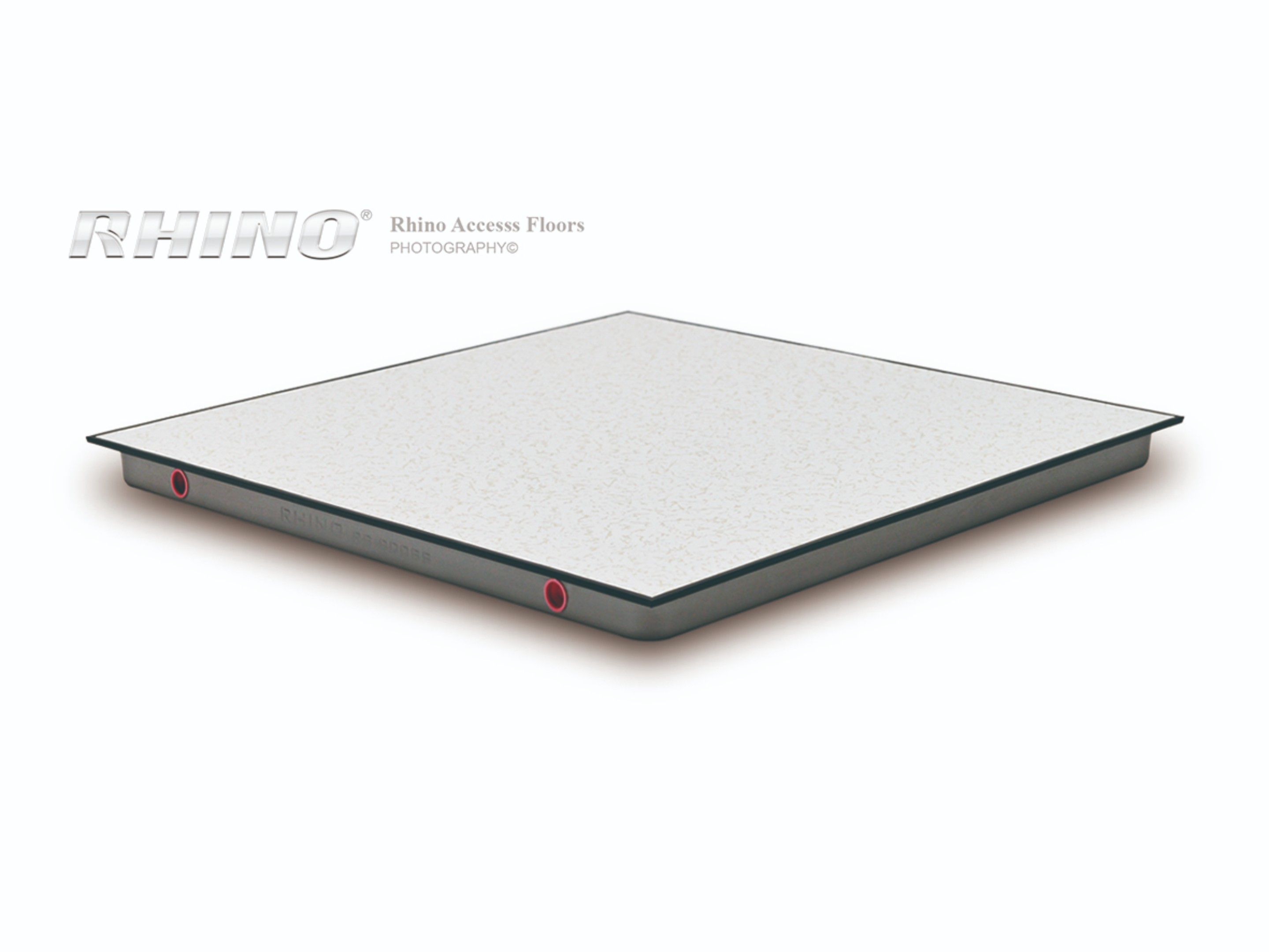

RhinoROC® Covered Panel w/ C-trim has the same welded structural steel technology found in the Roc bare finish panel making the two interchangeable, high-strength but with various finishes are the premier choice for computer room and data centers.

Technical Specs

	ROC100C	ROC200C	ROC300C	ROC400C	ROC500C
Panel Size	600mm x 600mm	600mm x 600mm	600mm x 600mm	600mm x 600mm	600mm x 600mm
Panel Thickness (nominal)	35.00 mm	35.00 mm	36.00 mm	36.00 mm	36.00 mm
Panel Weight	13.00 kgs	14.00 kgs	15.00 kgs	16.00 kgs	17.00 kgs
System Weight (typical)	45.00 kgs	48.00 kgs	51.00 kgs	53.00 kgs	55.00 kgs
Point load 25x25mm sq	3.56 kN	4.45 kN	5.56 kN	6.67 kN	8.90 kN
UDL/SQM	14.00 kN	17.00 kN	19.00 kN	22.00 kN	26.00 kN
Ultimate load	10.68 kN	13.34 kN	16.68 kN	20.02 kN	26.70 kN

Features

1.Accommodates maximum dynamic loads to 20.01kN

2.Interchangeable with other Roc panels

3.Quiet, with a solid feel underfoot

4.Powder-coated, protective epoxy finish

5.Wide range of covering options

Download Brochures

RhinoROC Bare.pdf (PDF; 424.1kb)
