RhinoROC® Airflow
The add to cart button will appear once you select the values above
Rhino Raised Flooring / Product information

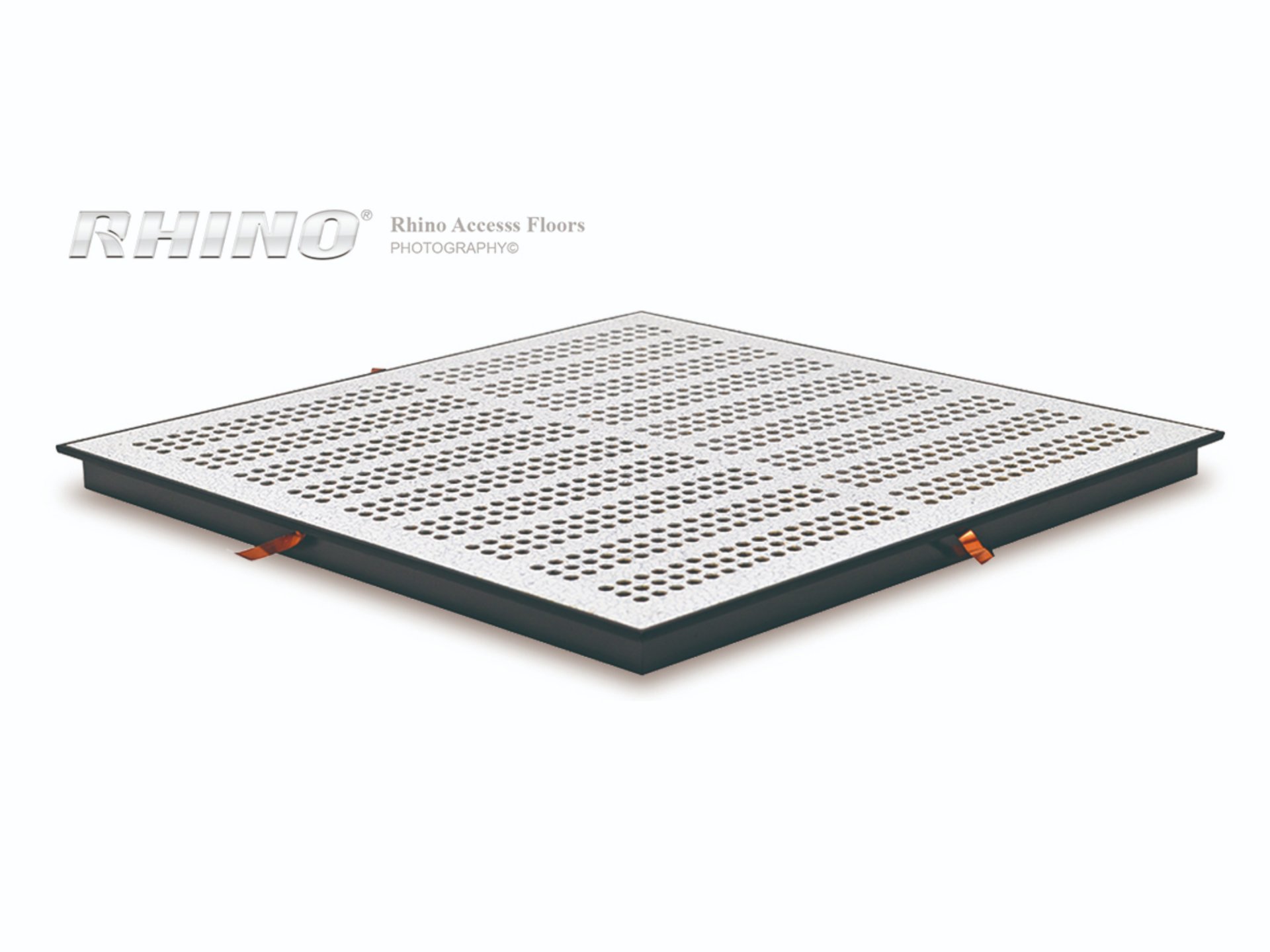

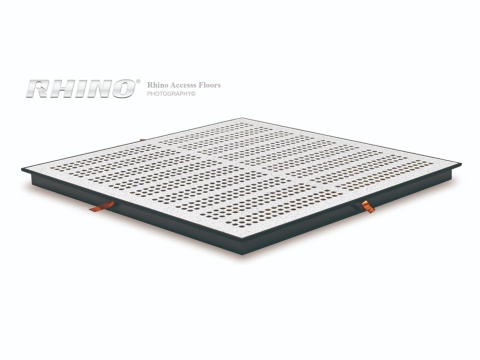

RhinoROC® Airflow panels are manufactured from structural steel technology makes the size and thickness same as Roc Covered panels but light weight. The top surface of the panel is laminated with anti-static HPL or conductive vinyl tiles with numbers of different airflow rates, this resistance welded all-steel panels are the premier choice for computer rooms and data centers.

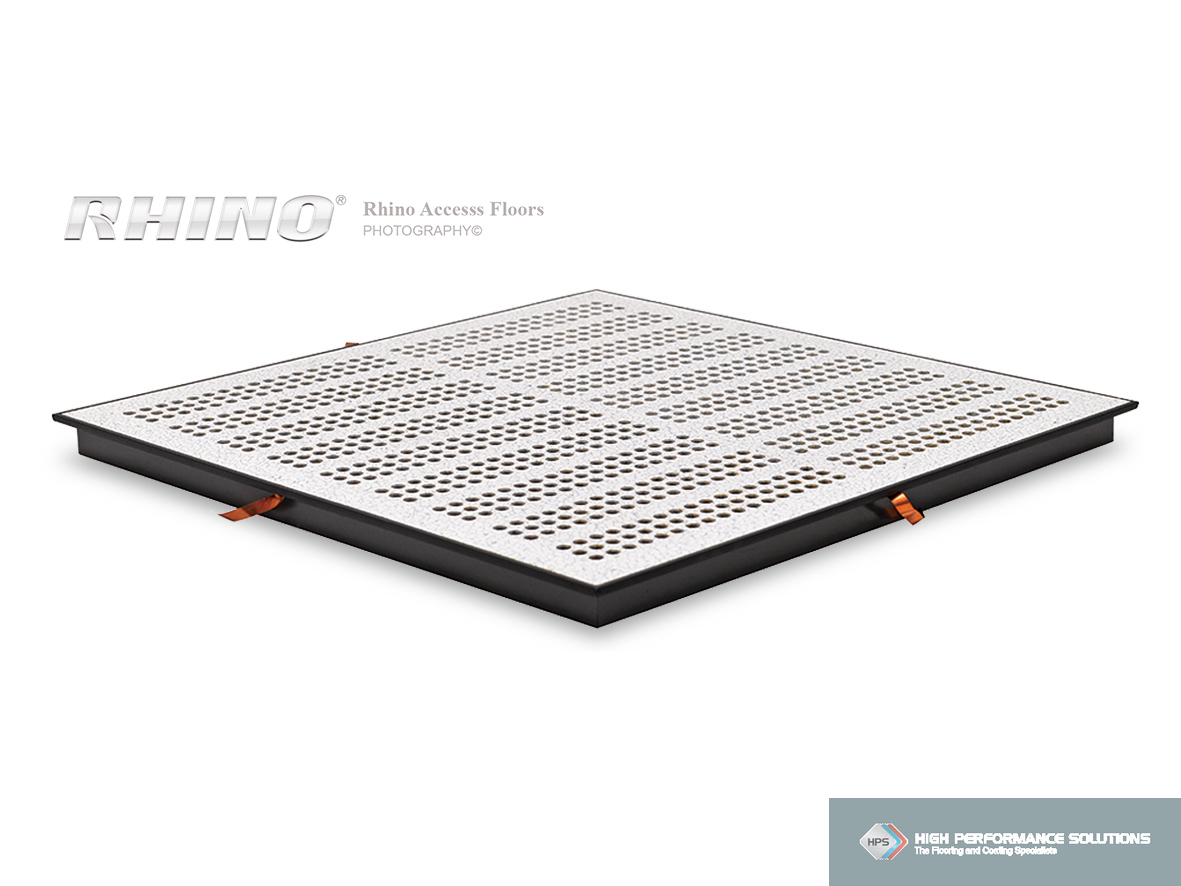

Technical Specs
| Perf 800 | Perf 1000 | |
|---|---|---|
| Panel Size | 600mm x 600mm | 600mm x 600mm |
| Panel Thickness (nominal) | 35.00 mm | 35.00 mm |
| Panel Weight | 9.00 kgs | 10.00 kgs |
| System Weight (typical) | 28.00 kgs | 34.00 kgs |
| Point load 25x25mm sq | 3.56 kN | 4.45 kN |
| UDL/SQM | 10.00 kN | 12.00 kN |
| Ultimate load | 10.68 kN | 13.34 kN |
Features

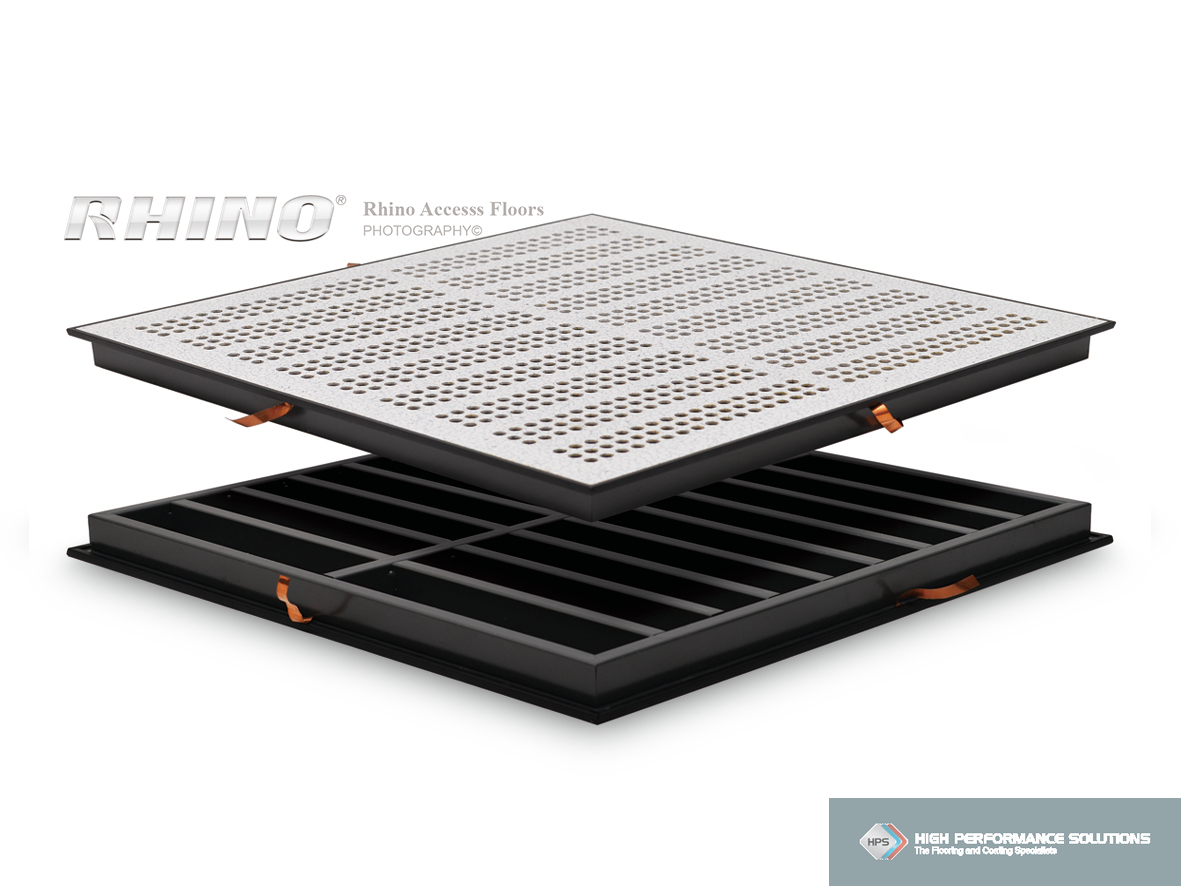

1. All-steel structural design
2. 90% recyclable
3. Light weight easy install and removal
4. Powder-coated, protective epoxy finish
5. Fully interchangeable with other Roc panels
Download Brochures
Specify it for your project.
Contact HPS for current technical documentation and guidance on your project requirements.
Request technical information
