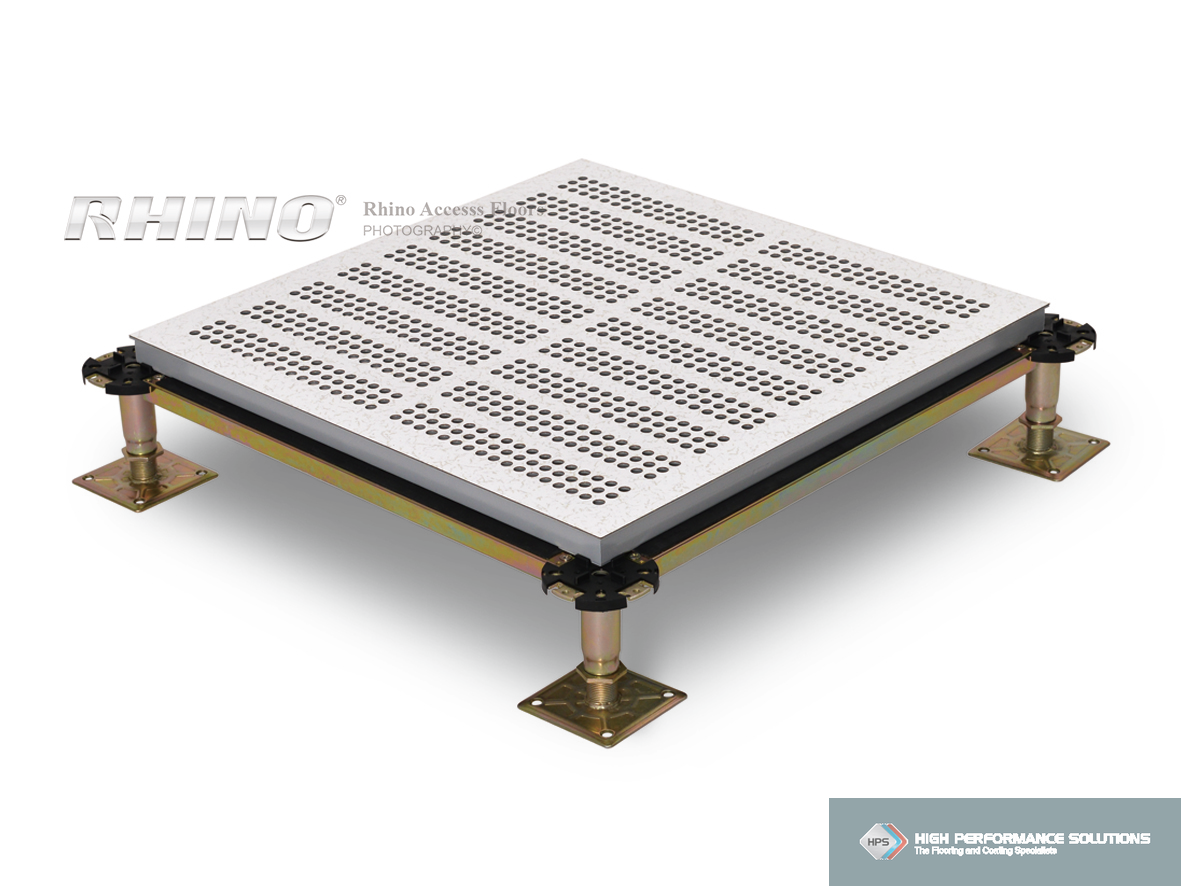

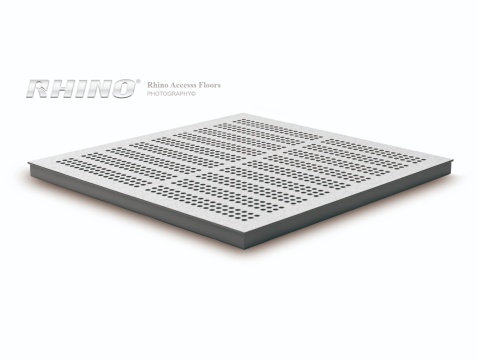

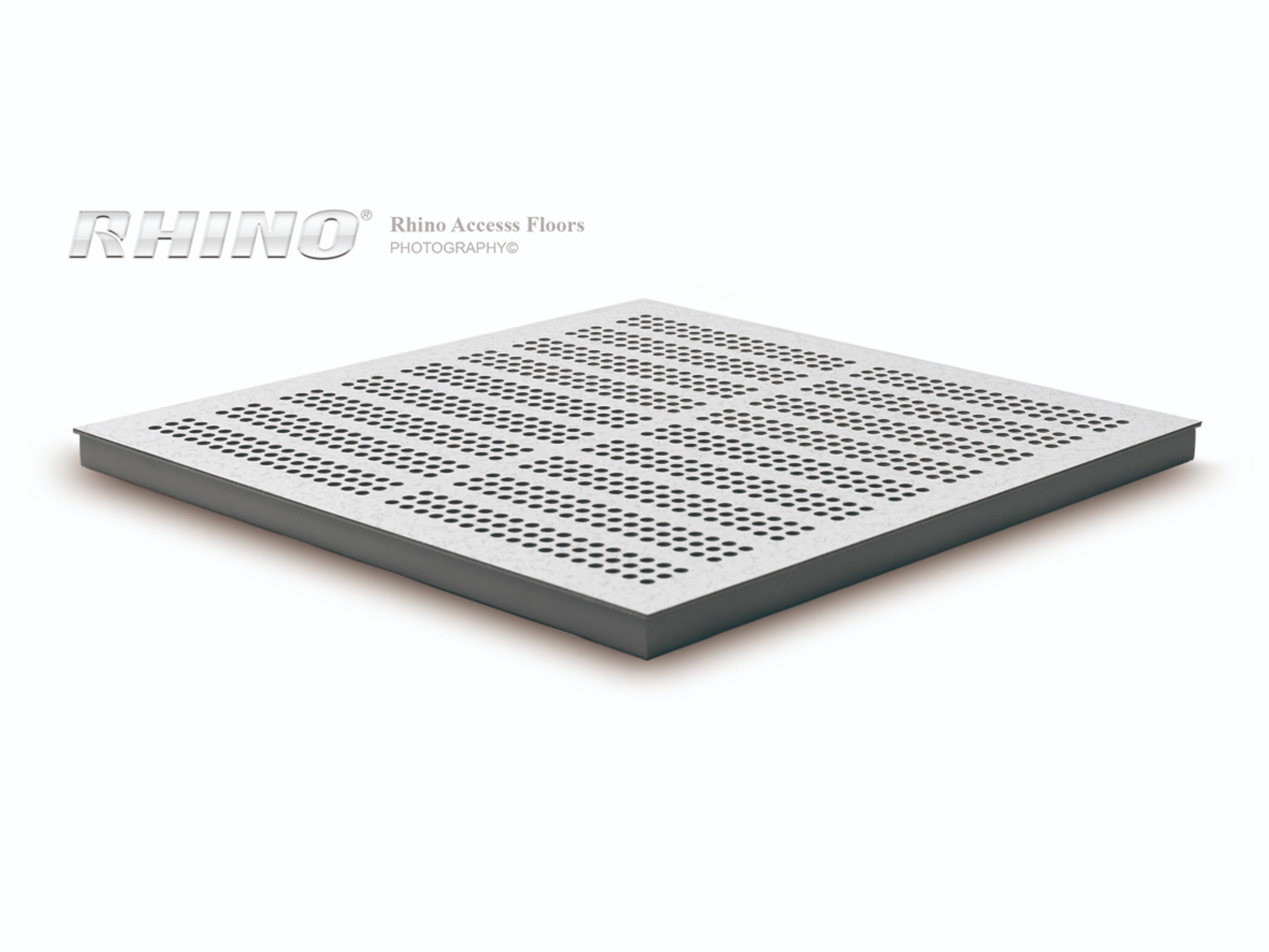

RhinoFLOR® Airflow panels are manufactured from structural steel technology makes the size and thickness same as RhinoFLOR® panels but light weight. The top surface of the panel is laminated with anti-static HPL or conductive vinyl tiles with numbers of different airflow rates, this resistance welded all-steel panels are the premier choice for computer rooms and data centers.

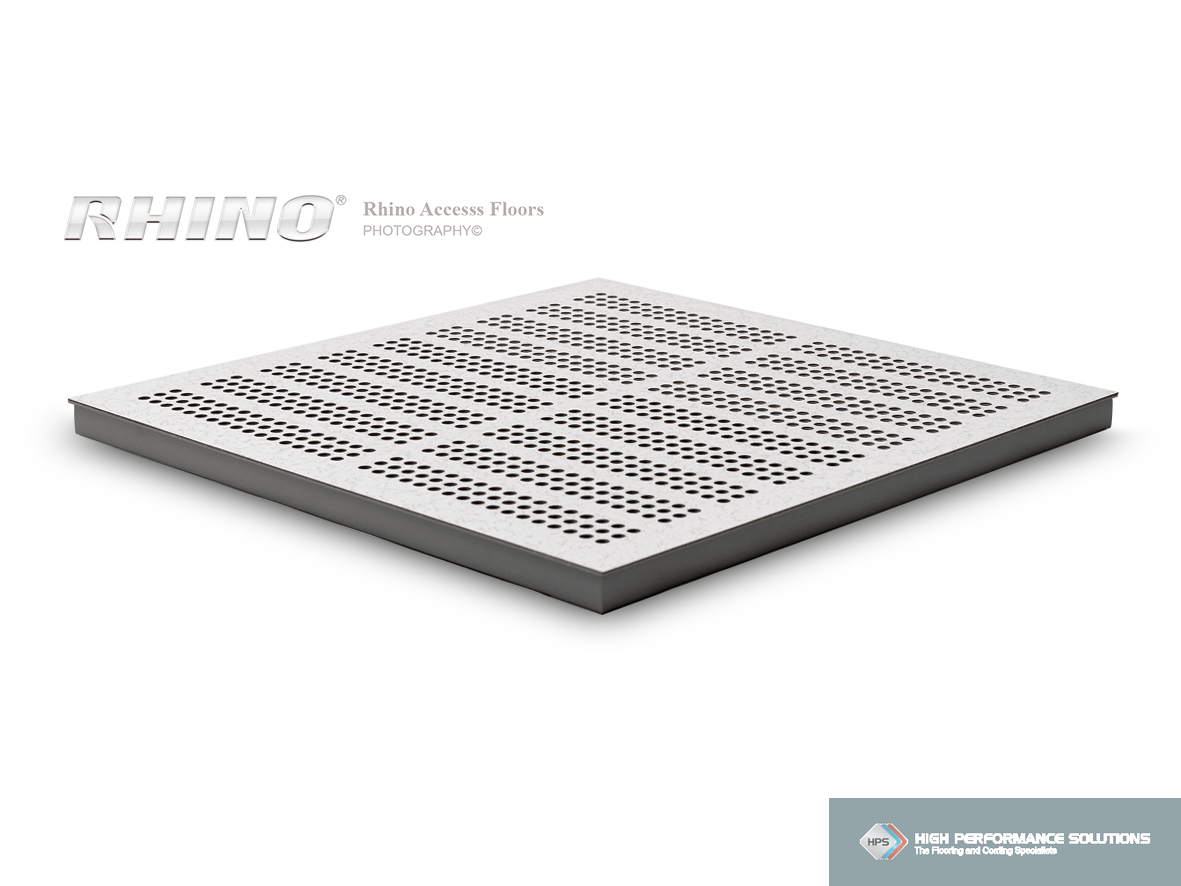

Technical Specs

	RSP 800F	RSP 1000F
Panel Size	600mm x 600mm	600mm x 600mm
Panel Thickness (nominal)	32.00 mm	32.00 mm
Panel Weight	9.00 kgs	10.00 kgs
System Weight (typical)	31.07 kgs	33.85 kgs
Point load 25x25mm sq	3.00 kN	4.50 kN
UDL/SQM	8.00 kN	12.00 kN
Ultimate load	9.00 kN	13.50 kN

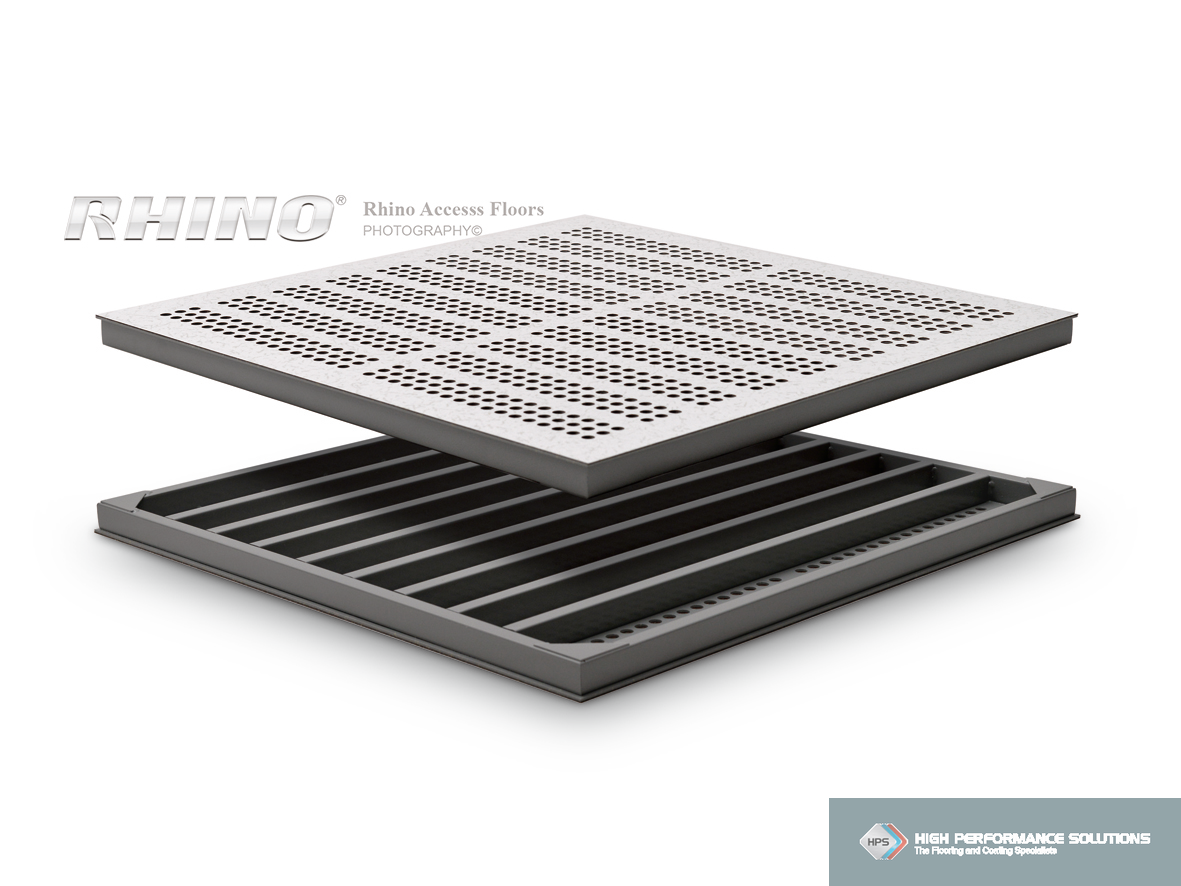

Features

1. All-steel structural design

2. 90% recyclable

3. Light weight easy install and removal

4. Powder-coated, protective epoxy finish

5. Fully interchangeable with other RhinoEU® panels

Download Brochures

RhinoFLOR® Airflow.pdf (PDF; 417.6kb)
