RhinoEU® Covered

Category: RhinoEU®
Price: 1,00 Php
  • RhinoEU® Covered

    RhinoEU® Covered

  • 1

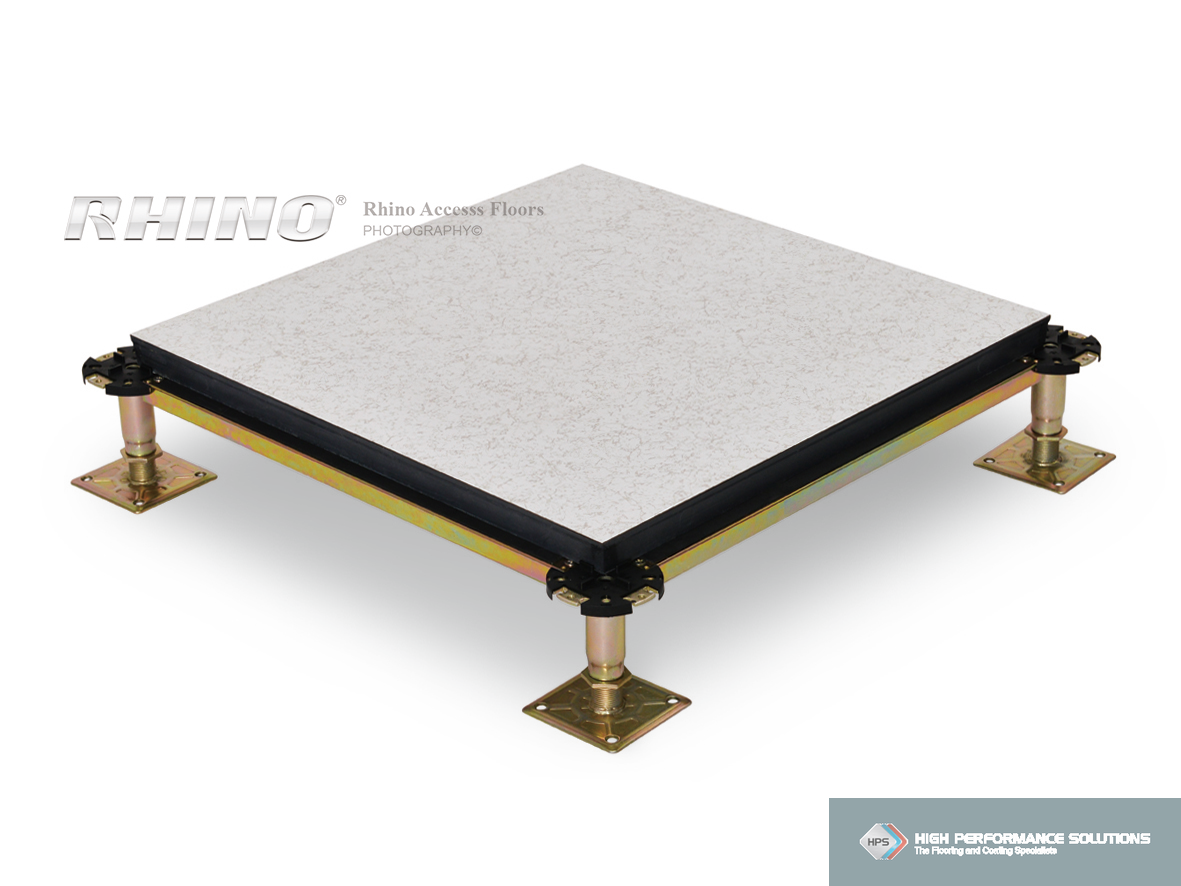

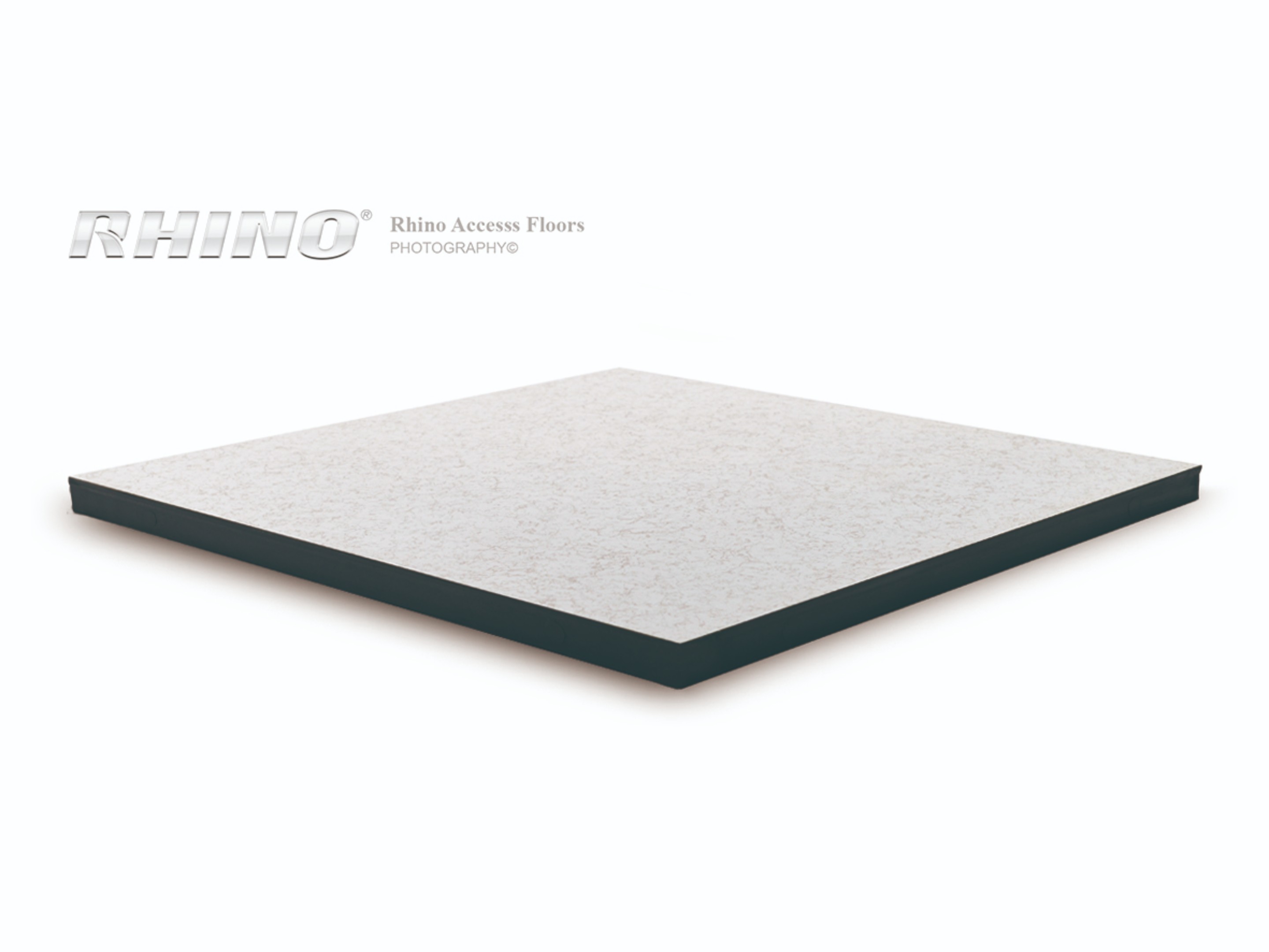

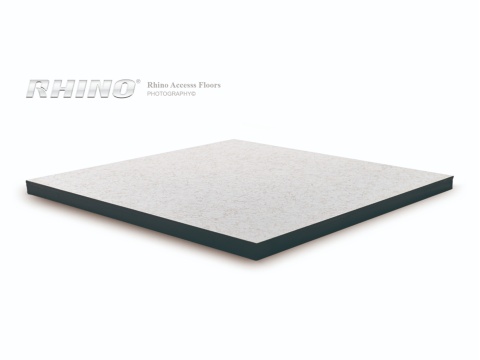

RhinoEU® Covered panels are manufactured from a high density of calcium sulphate (approx. 1,650 kg/m³) non-toxic and non-combustible material. The top surface of the core is laminated with Anti-static High Pressure Laminate (HPL) or Conductive Vinyl (PVC) tiles and the base surface is laminated with galvanized steel sheet. The panel edges are then laminated with an ABS/PVC edge band which provides protection to the calcium sulphate core.

Technical Specs
Raised Flooring Philippines - RhinoEU Covered Technical Specs pix
  EU800C EU1000C
Panel Size 600mm x 600mm 600mm x 600mm
Panel Thickness (nominal) 30.00 mm 31.00 mm
Panel Weight 18.00 kgs 19.00 kgs
System Weight (typical) 56.12 kgs 58.90 kgs
Point load 25x25mm sq 3.00 kN 4.50 kN
UDL/SQM 8.00 kN 12.00 kN
Ultimate load 9.00 kN 13.50 kN
Raised Flooring Philippines - RhinoEU Covered Features pix

1. Non-toxic

2. Non-combustible

3. Impressive acoustic performance

4. Superb underfoot comfort

5. Low air leakage rate

6. Wide range of covering options
