RhinoCross® Triangle
The add to cart button will appear once you select the values above
Rhino Raised Flooring / Product information

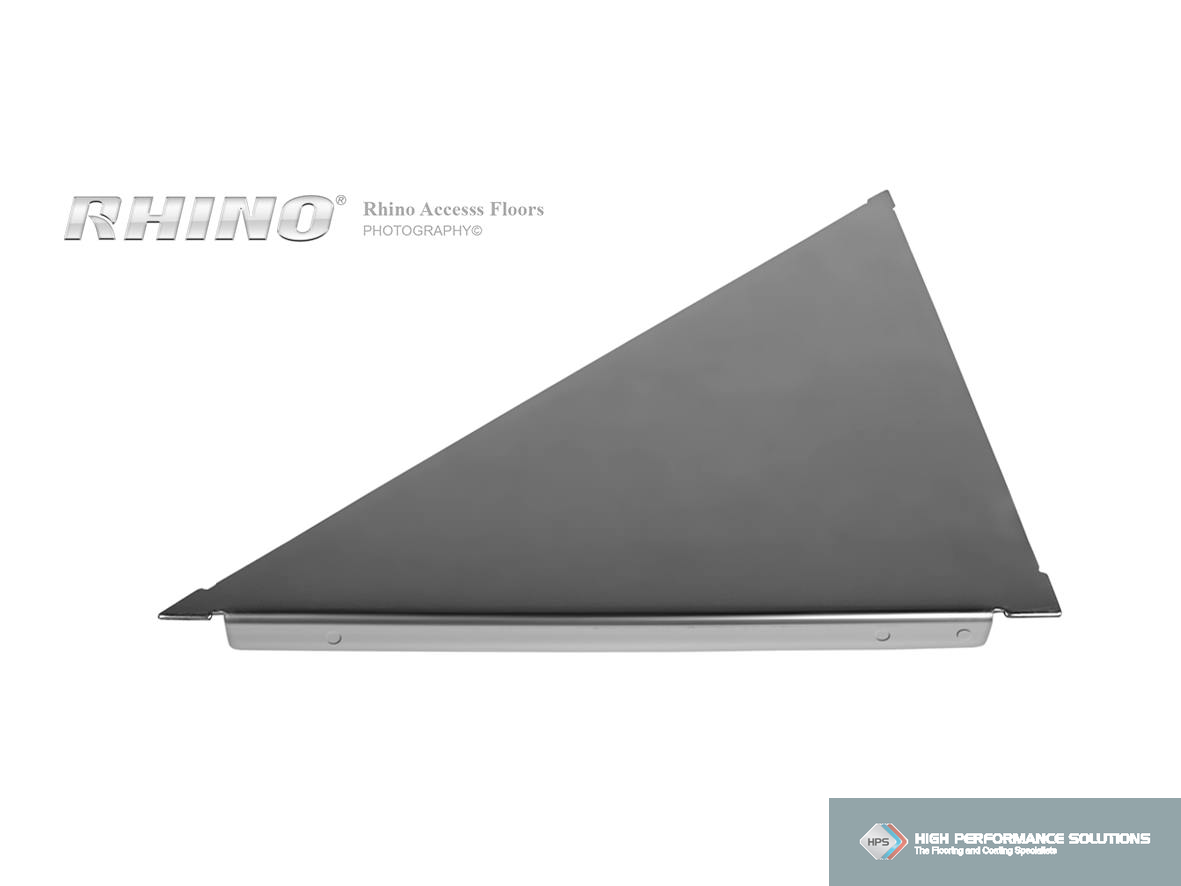

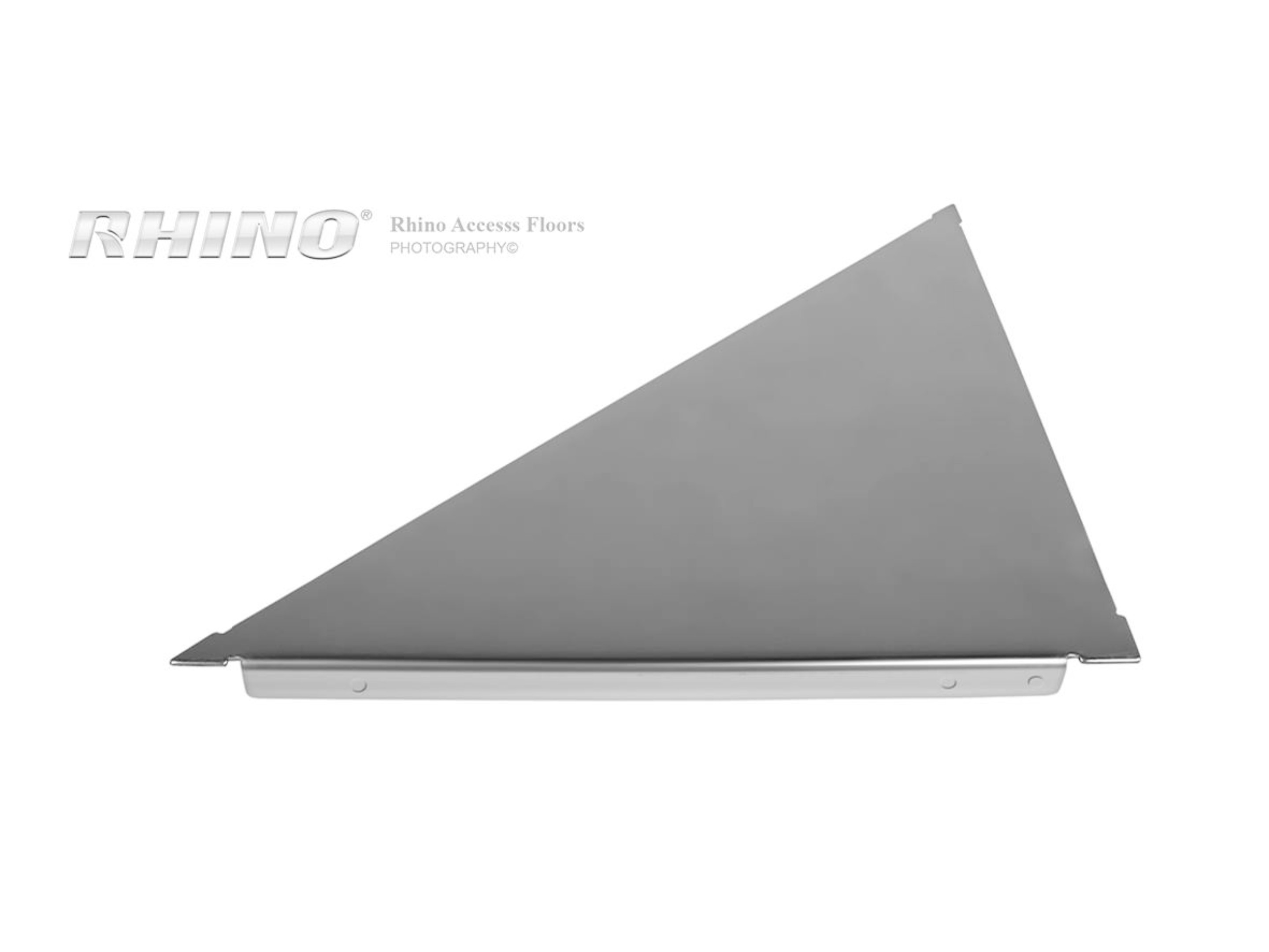

Cross low-profile floor tiles are manufactured from high quality galvanized steel formed in a triangle structure, is the primary tile used for low ceiling areas available from 40mm to 60mm height perfect for existing buildings that were not designed for traditional access floors, the galvanized steel modular tiles snap-in together very easily, and strictly for voice and data applications. This user-friendly series is readily installed and removed.
Technical Specs
| CS501 | CS502 | |
|---|---|---|
| Panel Size | Rt△ (21 mm) | Rt△ (21 mm) |
| Panel Thickness (nominal) | 1.50 mm | 2.00 mm |
| Panel Weight | 0.35 kgs | 0.50 kgs |
| System Weight (typical) | 18.60 kgs | 23.88 kgs |
| Point load 25x25mm sq | 3.00 kN | 4.50 kN |
| UDL/SQM | 8.00 kN | 12.00 kN |
| Ultimate load | 6.00 kN | 9.00 kN |

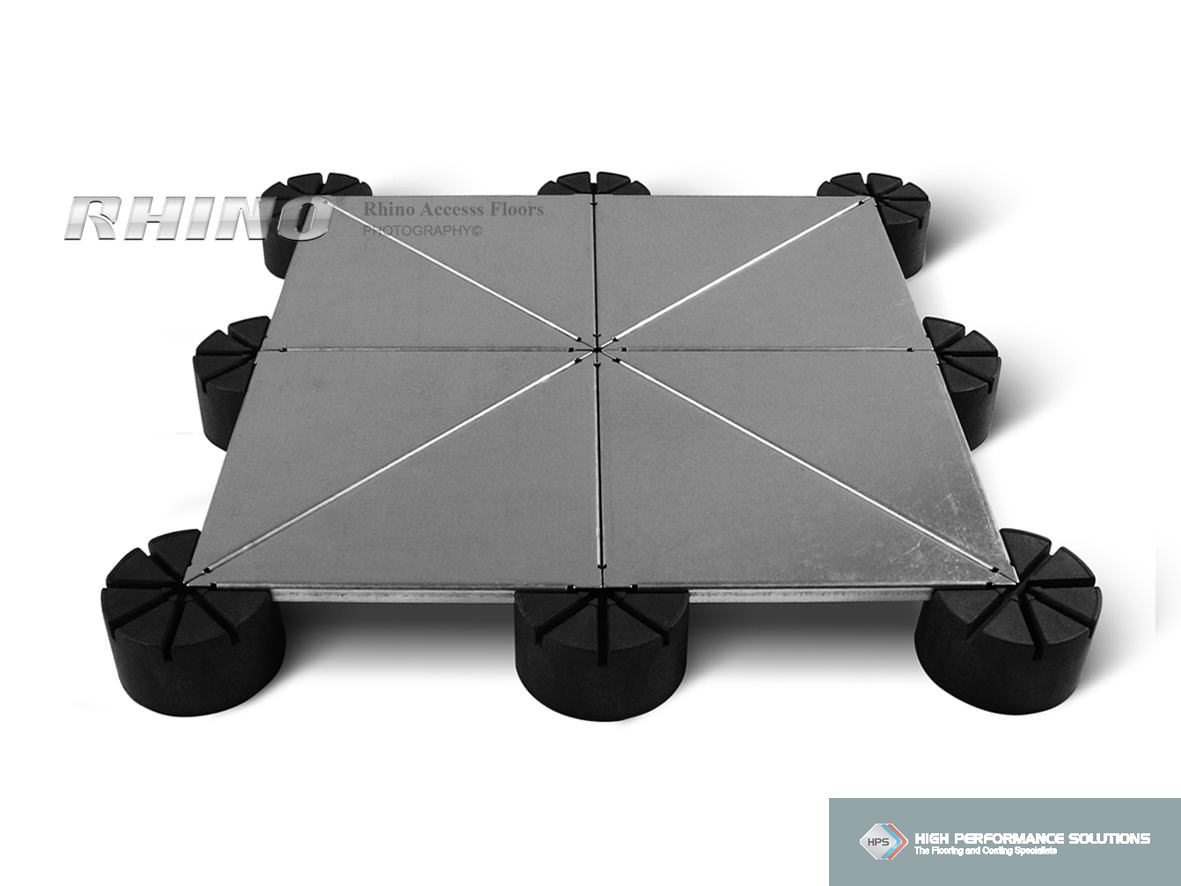

Features
1. Easy to assemble and remove
2. Quiet, with a solid feel underfoot
3. Galvanized steel for 100% rust corrosion protection
4. 100% recyclable and eco-friendly
Download Brochures
Specify it for your project.
Contact HPS for current technical documentation and guidance on your project requirements.
Request technical information
