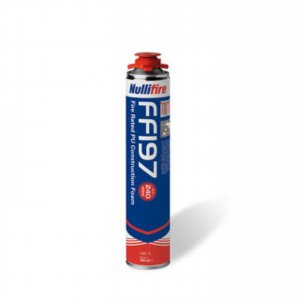

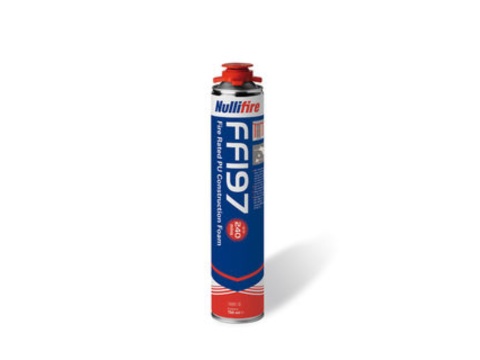

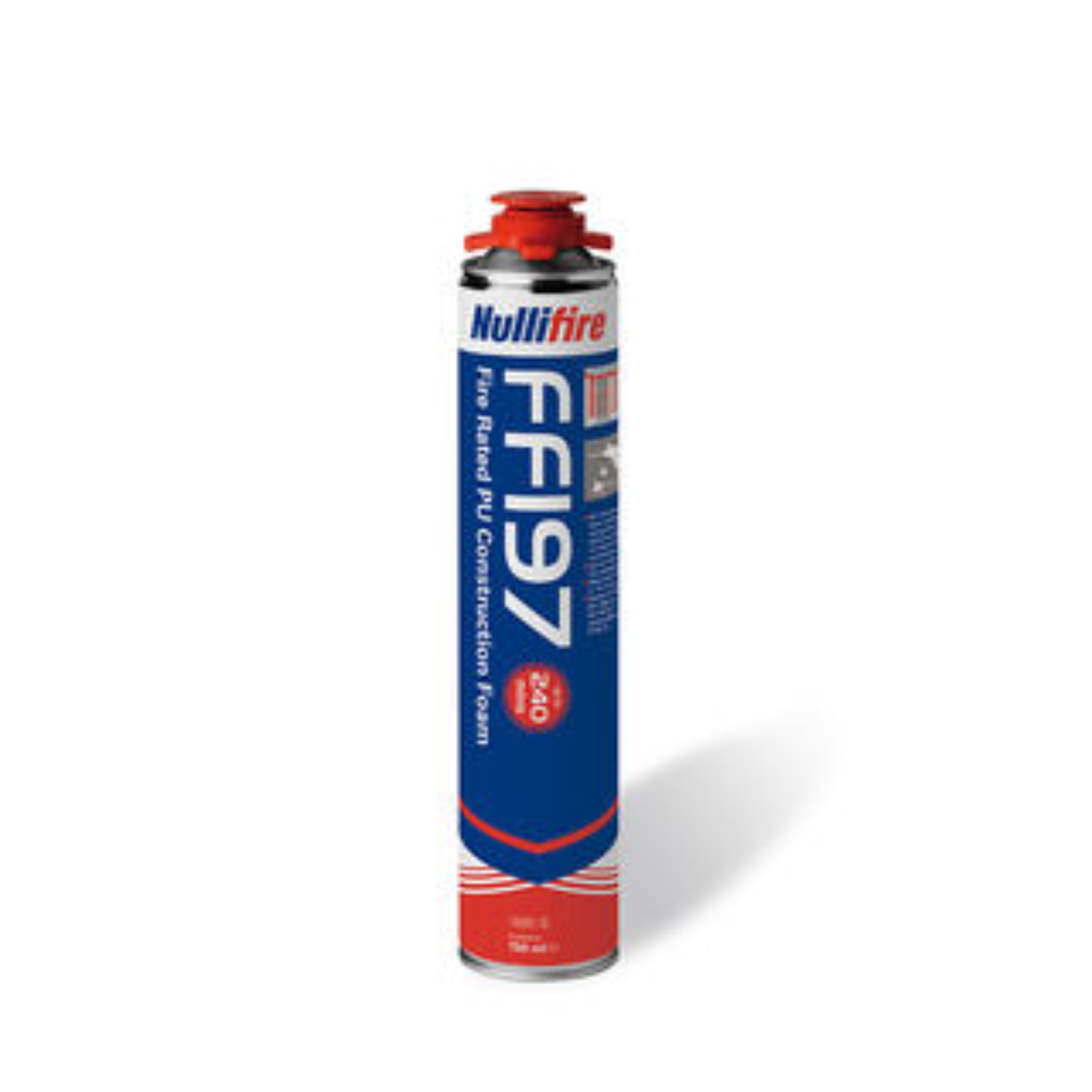

FF197 Gun Grade Fire Rated PU Foam
Fire Stopping
FF197 is a modified, single component, fire rated polyurethane foam.
FF197 is used to seal door frames, window frames and linear gaps throughout the fire rated areas of a building.
Typical areas of use include: health and leisure facilities, schools, universities, commercial buildings, retail and industrial units.
Benefits
- Tested to BS EN 1634-1 (fire door) : FD60 performance achieved
- Gaps up to 35 mm (fire door)
- Tested without architrave (fire door)
- Tested with plastic packers (fire door)
- Tested to BS EN 1366-4 (linear gaps) : up to 4 hours fire resistance
- Pink coloured foam for easy identification
- Tack free in 10 minutes
- 2-in-1 gun & nozzle canister
Technical Data
| Property | Test Method | Result |
|---|---|---|
| Composition | Polyurethane foam | |
| Fire Performance* | Tested to BS EN 1366-4 | Up to 4 hours |
| Tested to BS EN 1634-1 | 60 minutes | |
| Classification | DIN4102: Part 1 | B1 |
| Canister Temperature Limits | +10°C to +30°C | |
| Ambient Temperature Limits | +5°C to +35°C | |
| Density | LAB014 - 3 cm in width at 23°C and 50% RH | 20-30 kg/m3 |
| Yield | FEICA TM 1003 | 45 litres |
| Tack Free Time | FEICA TM 1014 | 10 minutes |
| Cutting Time | FEICA TM 1005 | 60 minutes |
| Tensile Strengthh | FEICA TM 1018 | 81 kPa |
| Shear Strength | FEICA TM 1012 | 57 kPa |
| Compression Strength (10% | FEICA TM 1011 | 47 kPa |
| Thermal Conductivity | EN 12667 | 0.036 W/m.K |
| Continuous Operating Temperature | Peak: -40°C to +130°C Continuous: -40°C to +90°C |
|
| Storage | Store between +5°C and +25°C in dry conditions. | |
| Shelf Life | 12 months when stored in its original unopened containers. | |
Preparation
- Ensure suitablility of product prior to use.
- Protect floor coverings with tremco illbruck self-adhesive floor protection
- The surfaces must be solid and stable.
- Remove all loose particles, dust and grease.
- A speedier cure can be attained by moistening the substrates if needed.
Application
For full application details, refer to product data sheet.
