RhinoFLOR® Airflow

Category: RhinoFLOR®
Price: 1,00 Php
  • RhinoAlutec® Solid

    RhinoAlutec® Solid

  • 1

RhinoFLOR® Airflow panels are manufactured from structural steel technology makes the size and thickness same as RhinoFLOR® panels but light weight. The top surface of the panel is laminated with anti-static HPL or conductive vinyl tiles with numbers of different airflow rates, this resistance welded all-steel panels are the premier choice for computer rooms and data centers.

Technical Specs

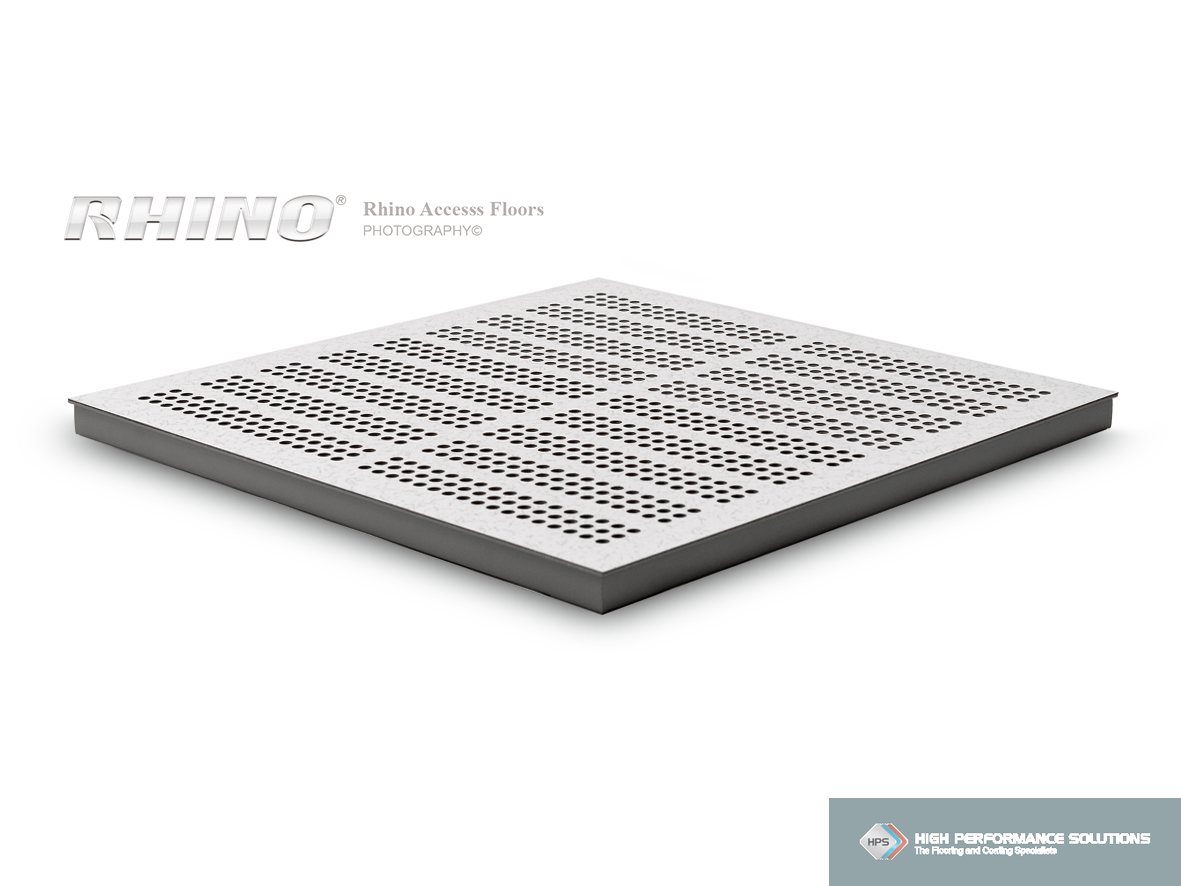

Raised Flooring Philippines - RhinoFLOR Airflow Technical Specs pix
  RSP 800F RSP 1000F
Panel Size 600mm x 600mm 600mm x 600mm
Panel Thickness (nominal) 32.00 mm 32.00 mm
Panel Weight 9.00 kgs 10.00 kgs
System Weight (typical) 31.07 kgs 33.85 kgs
Point load 25x25mm sq 3.00 kN 4.50 kN
UDL/SQM 8.00 kN 12.00 kN
Ultimate load 9.00 kN 13.50 kN
Features

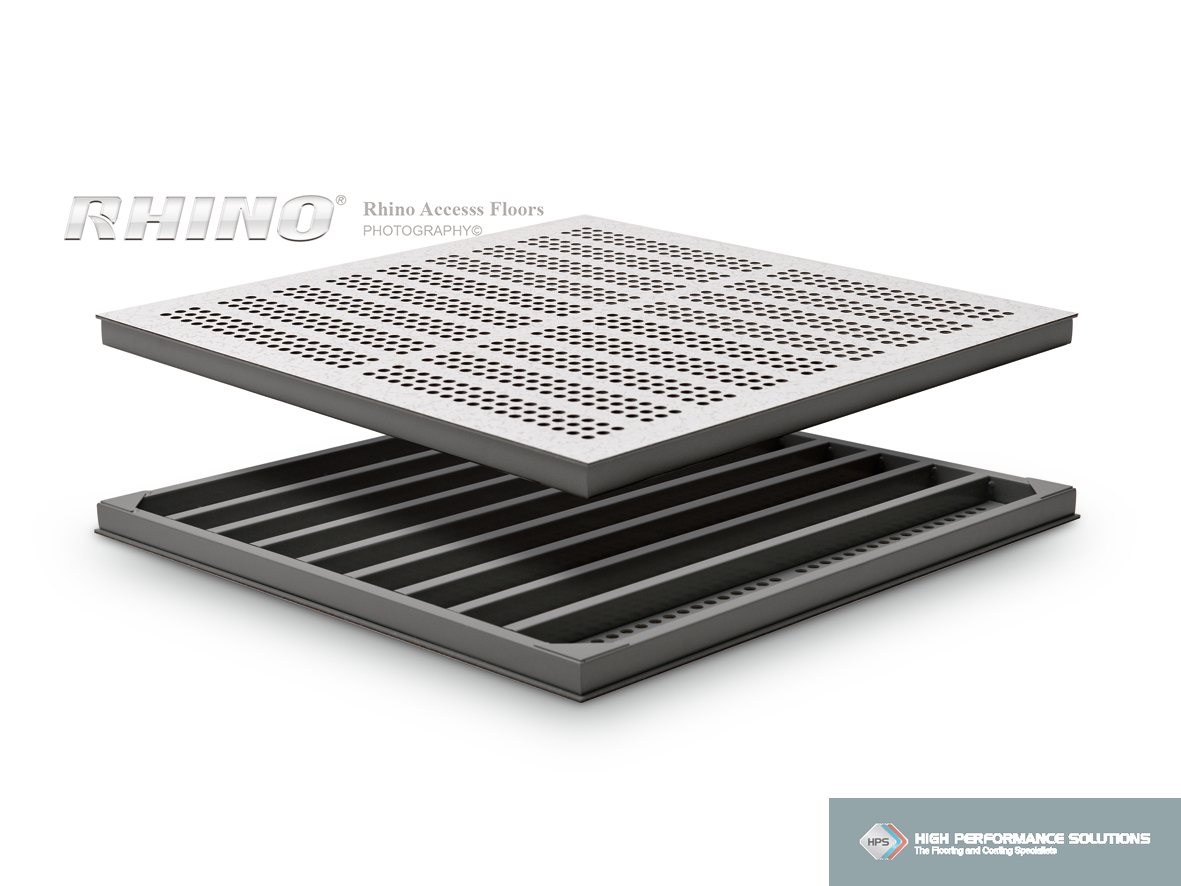

Raised Flooring Philippines - RhinoFLOR Airflow Features pix

1. All-steel structural design

2. 90% recyclable

3. Light weight easy install and removal

4. Powder-coated, protective epoxy finish

5. Fully interchangeable with other RhinoEU® panels
