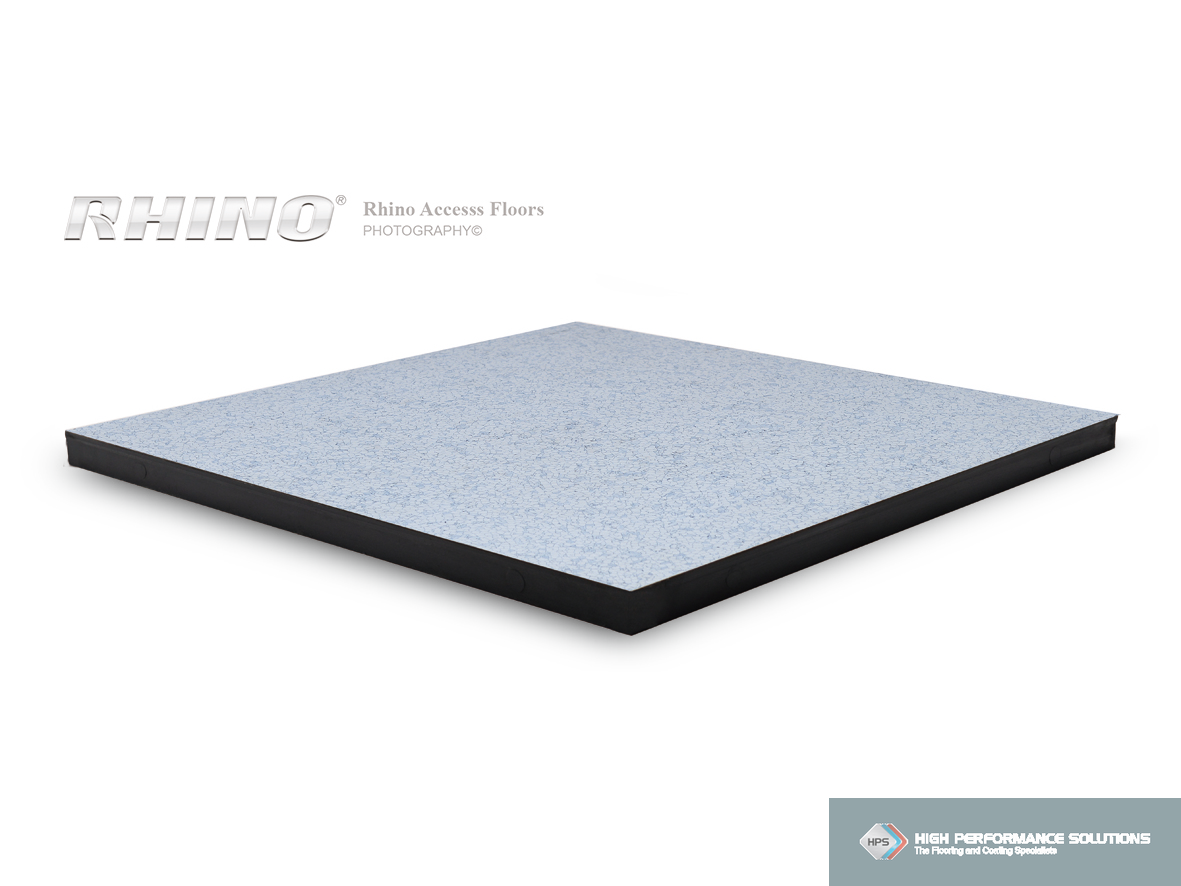

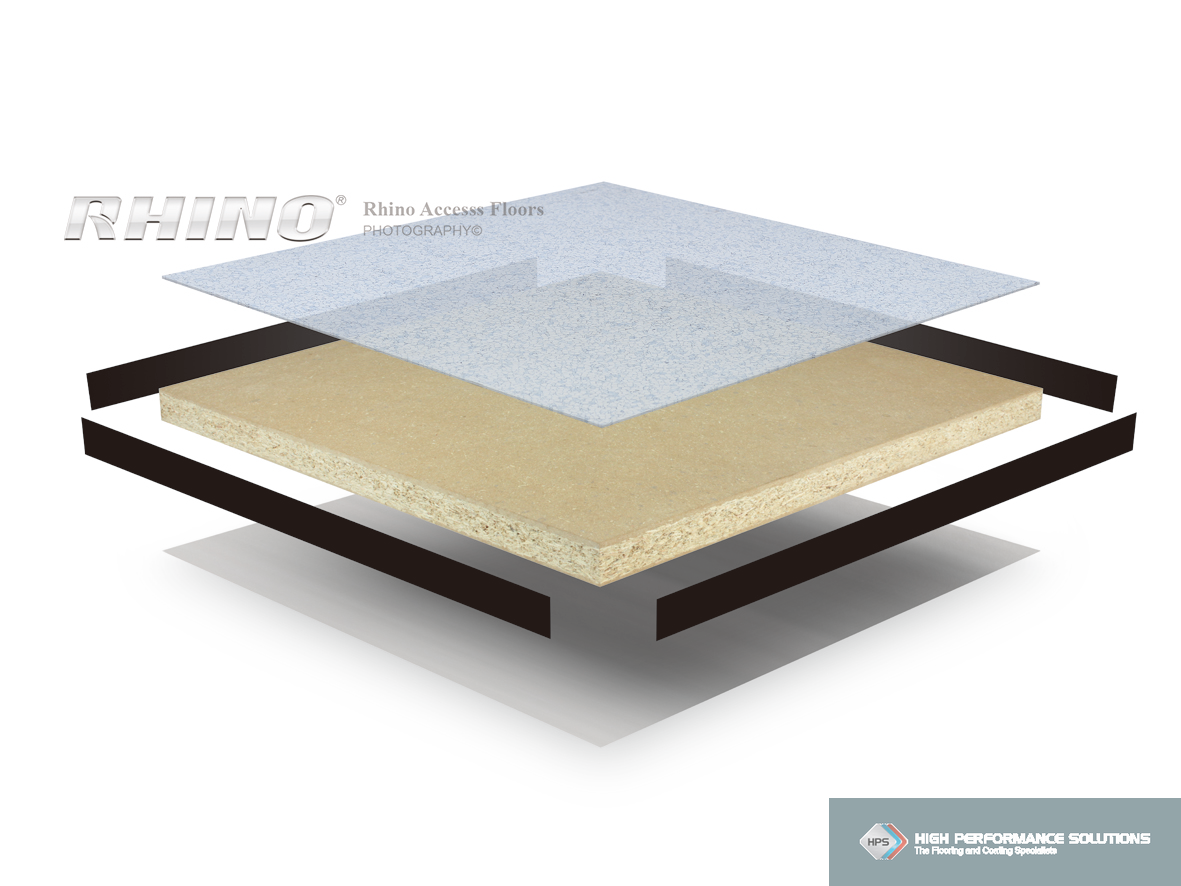

RhinoFLOR® Covered panels are manufactured from a chipboard core (approx. 680 kg/m³) non-toxic and light weight material. The top surface of the core is laminated with anti-static high pressure laminate (HPL) or conductive vinyl (PVC) tiles and the base surface is laminated with galvanized steel sheet. The panel edges are then laminated with an ABS/PVC edge band which provides protection to the chipboard core.

Technical Specs

	F30C	F38C
Panel Size	600mm x 600mm	600mm x 600mm
Panel Thickness (nominal)	32.00 mm	40.00 mm
Panel Weight	8.00 kgs	10.00 kgs
System Weight (typical)	28.29 kgs	33.85 kgs
Point load 25x25mm sq	3.00 kN	4.50 kN
UDL/SQM	8.00 kN	12.00 kN
Ultimate load	9.00 kN	13.50 kN

Features

Light weight

2. Good acoustic performance

3. Solid underfoot

4. Low air leakage rate

5. Safe and easy access

6. Excellent lateral stability

Download Brochures

RhinoFLOR® Covered.pdf (PDF; 449.7kb)
