RhinoROC® Airflow

Category: RhinoROC®
Price: 1,00 Php
  • RhinoROC® Airflow

    RhinoROC® Airflow

  • 1

RhinoROC® Airflow panels are manufactured from structural steel technology makes the size and thickness same as Roc Covered panels but light weight. The top surface of the panel is laminated with anti-static HPL or conductive vinyl tiles with numbers of different airflow rates, this resistance welded all-steel panels are the premier choice for computer rooms and data centers.

Technical Specs

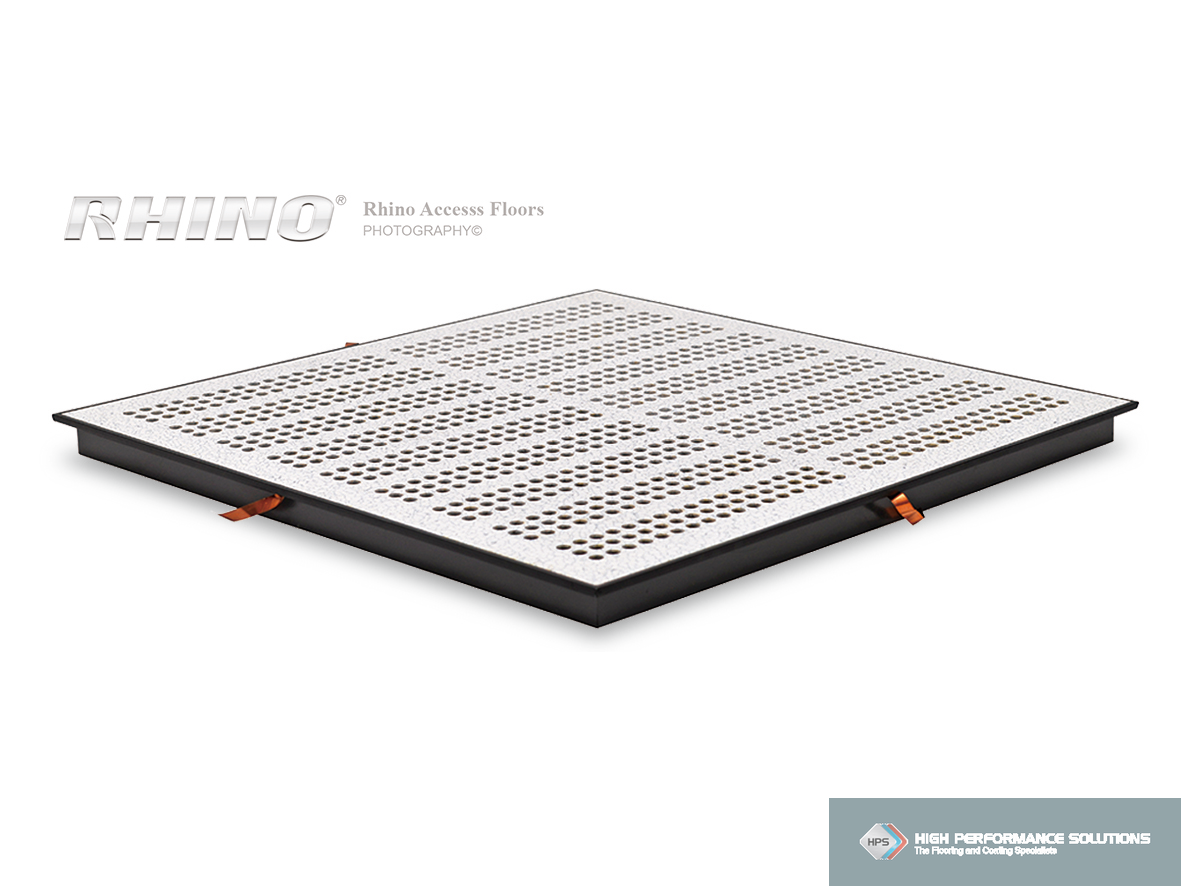

Raised Flooring Philippines - RhinoROC Airflow Technical Specs pix
  Perf 800 Perf 1000
Panel Size 600mm x 600mm 600mm x 600mm
Panel Thickness (nominal) 35.00 mm 35.00 mm
Panel Weight 9.00 kgs 10.00 kgs
System Weight (typical) 28.00 kgs 34.00 kgs
Point load 25x25mm sq 3.56 kN 4.45 kN
UDL/SQM 10.00 kN 12.00 kN
Ultimate load 10.68 kN 13.34 kN
Features

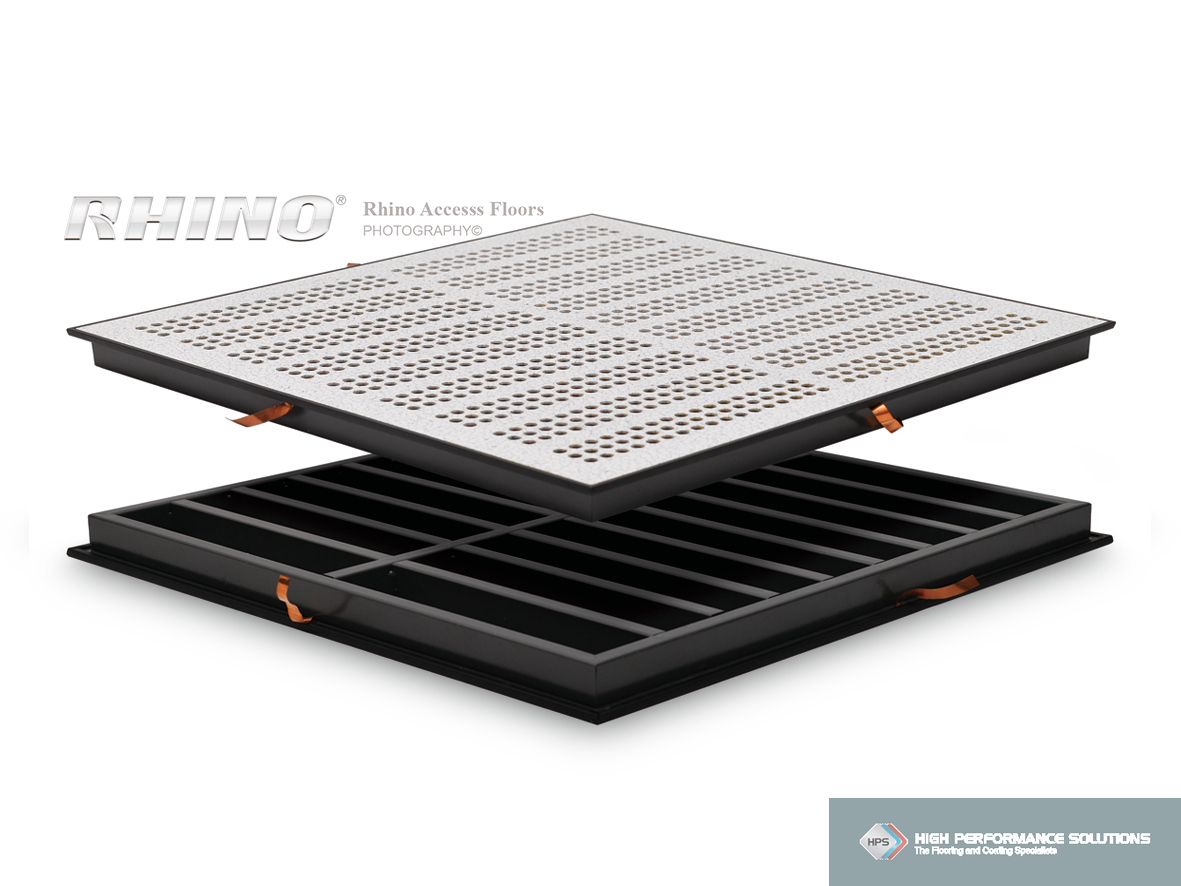

Raised Flooring Philippines - RhinoROC Airflow Features pix

1. All-steel structural design

2. 90% recyclable

3. Light weight easy install and removal

4. Powder-coated, protective epoxy finish

5. Fully interchangeable with other Roc panels

Ask about this product
