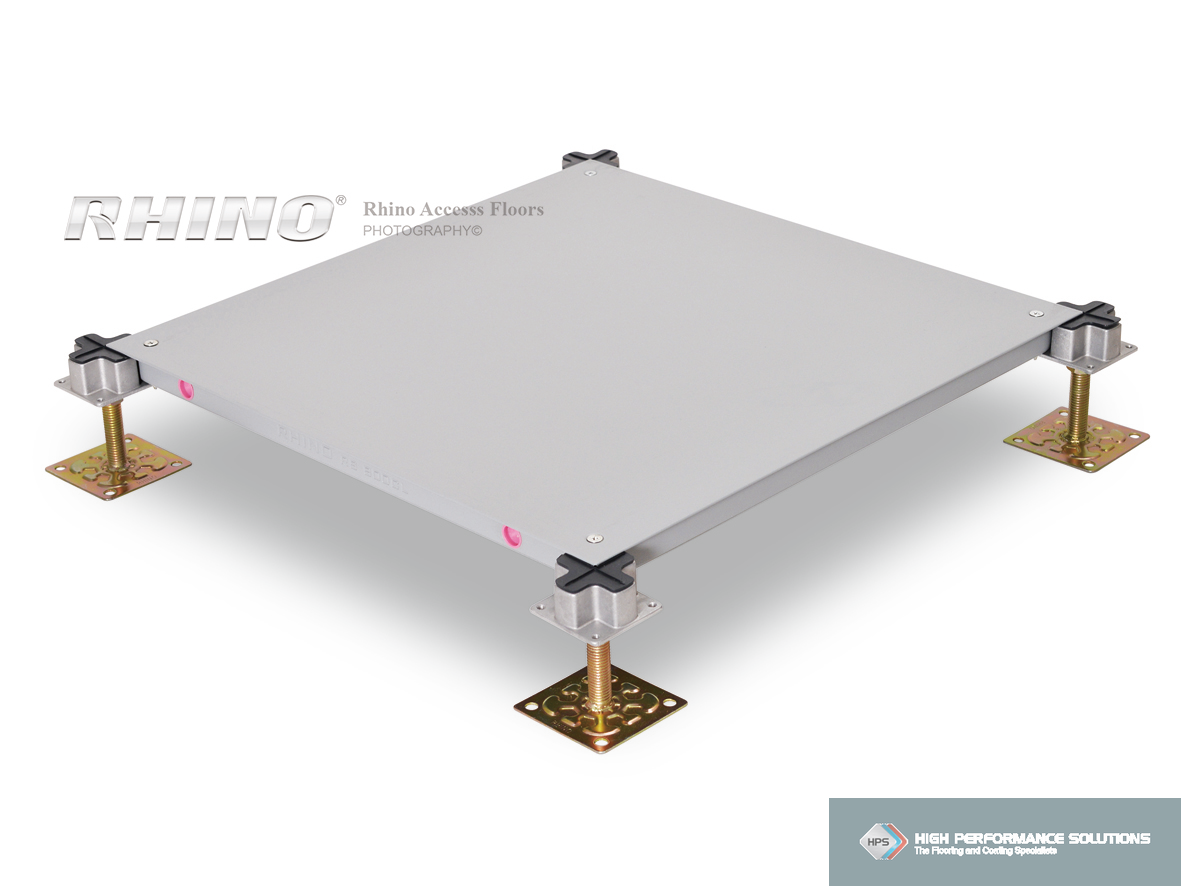

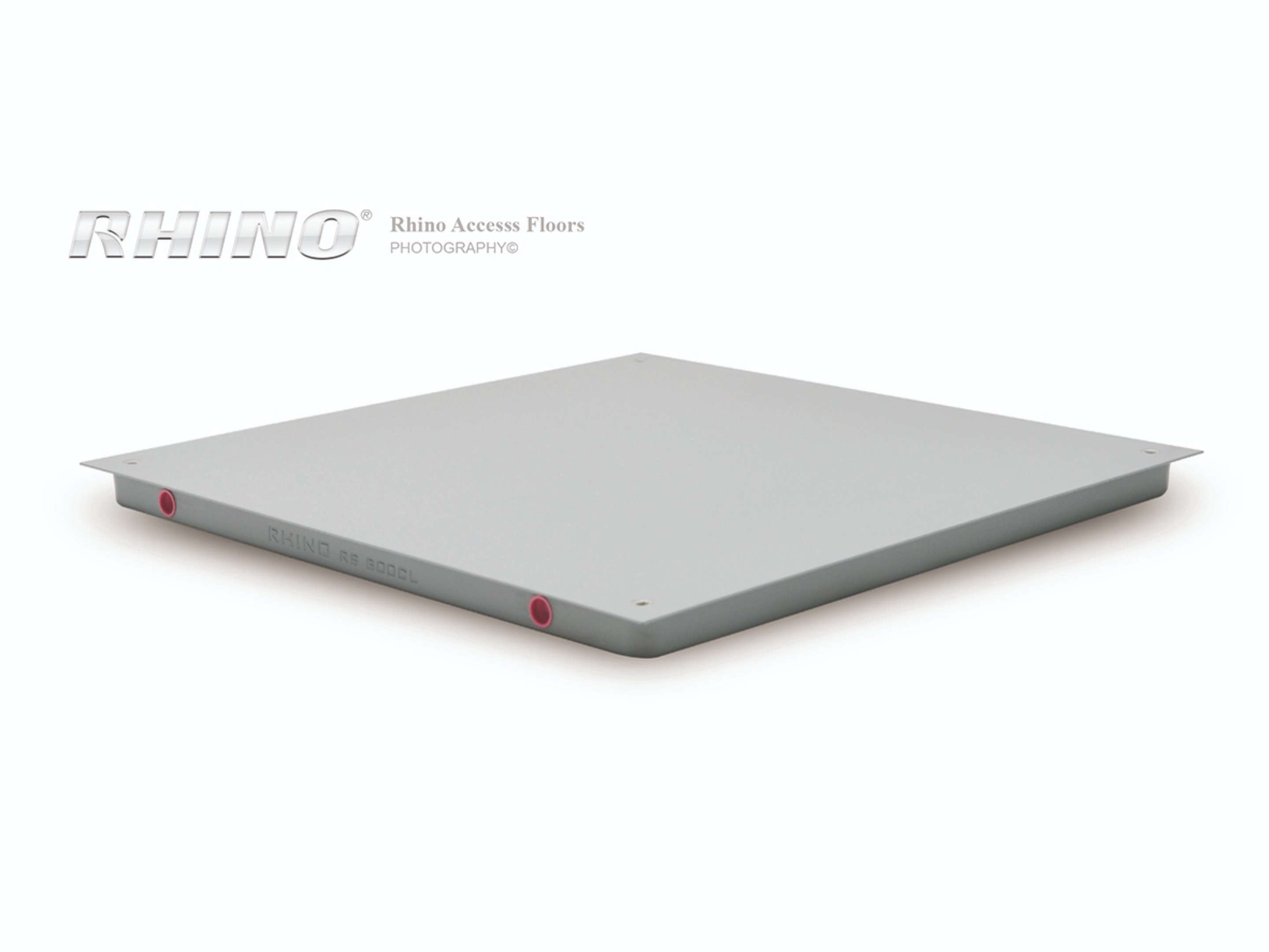

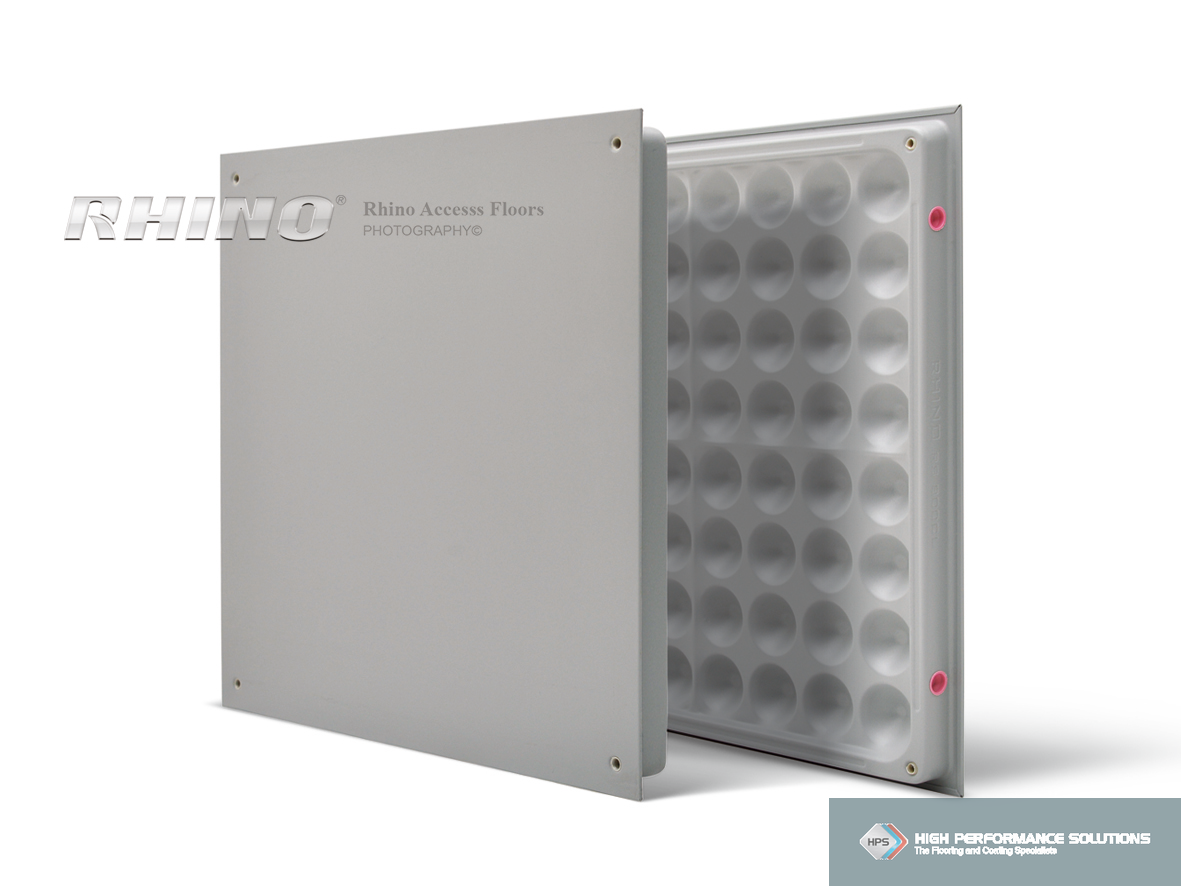

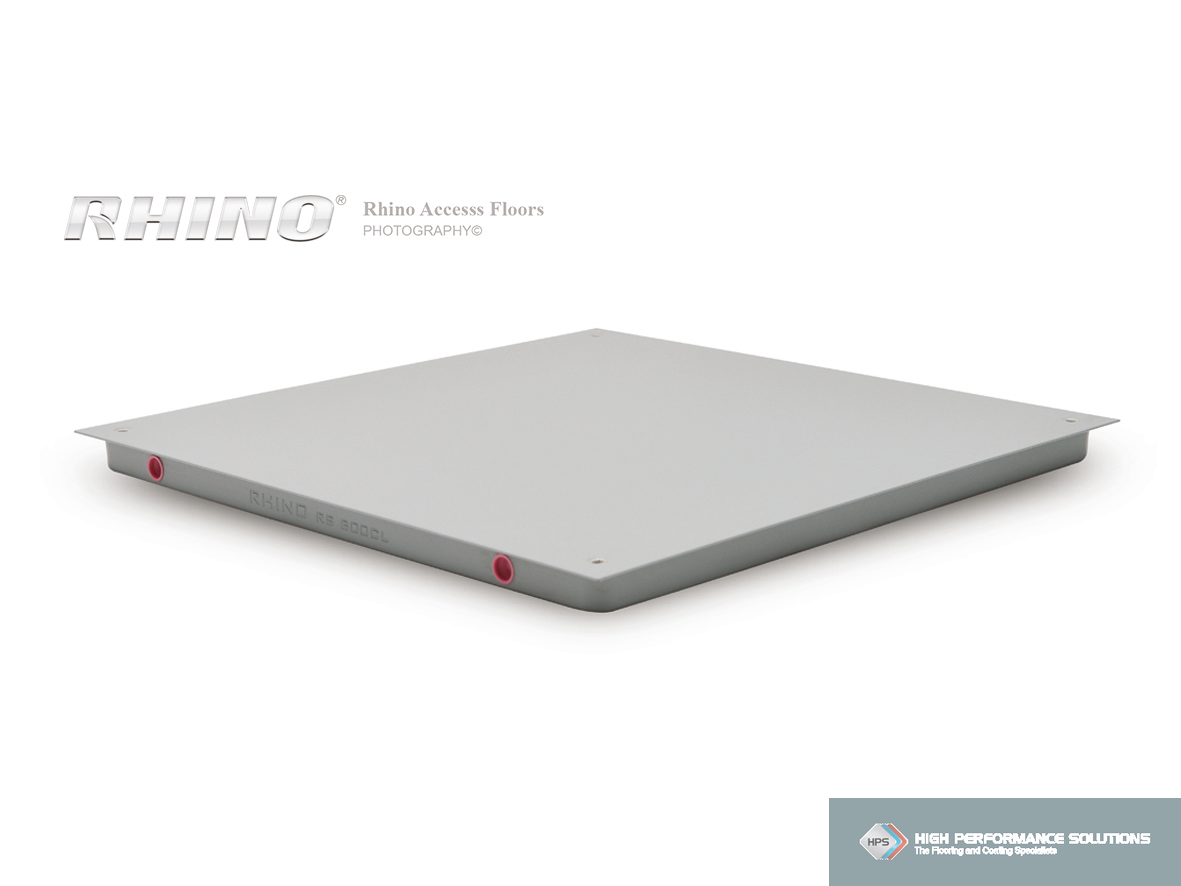

RhinoROC® bare finish panels are manufactured from cold rolled steel resistance welded, light weight cement-filled steel panels are specifically designed to accommodate dynamic loads and to withstand some of the highest ultimate loads in the industry. The design incorporates a classic 64 domes bottom shell with cross-beams and 4-ribbed beams strengthen center and perimeter of the panel, total 140 resistance welds dramatically improved edge load capacities, and overall panel durability.

Technical Specs

	ROC100	ROC200	ROC300	ROC400	ROC500
Panel Size	600mm x 600mm	600mm x 600mm	600mm x 600mm	600mm x 600mm	600mm x 600mm
Panel Thickness (nominal)	33.50 mm	33.50 mm	34.00 mm	34.00 mm	34.00 mm
Panel Weight	12.00 kgs	13.00 kgs	14.00 kgs	15.00 kgs	16.00 kgs
System Weight (typical)	42.00 kgs	45.00 kgs	48.00 kgs	51.00 kgs	54.00 kgs
Point load 25x25mm sq	3.56 kN	4.45 kN	5.56 kN	6.67 kN	8.90 kN/
UDL/SQM	14.00 kN	17.00 kN	19.00 kN	22.00 kN	26.00 kN
Ultimate load	10.68 kN	13.34 kN	16.68 kN	20.02 kN	26.70 kN

Features

1.Accommodates maximum dynamic loads to 20.01kN

2.Interchangeable with other Roc panels

3.Quiet, with a solid feel underfoot

4.Powder-coated, protective epoxy finish

Download Brochures

RhinoROC Bare.pdf (PDF; 424.1kb)
