Rhino Raised Flooring / Product information

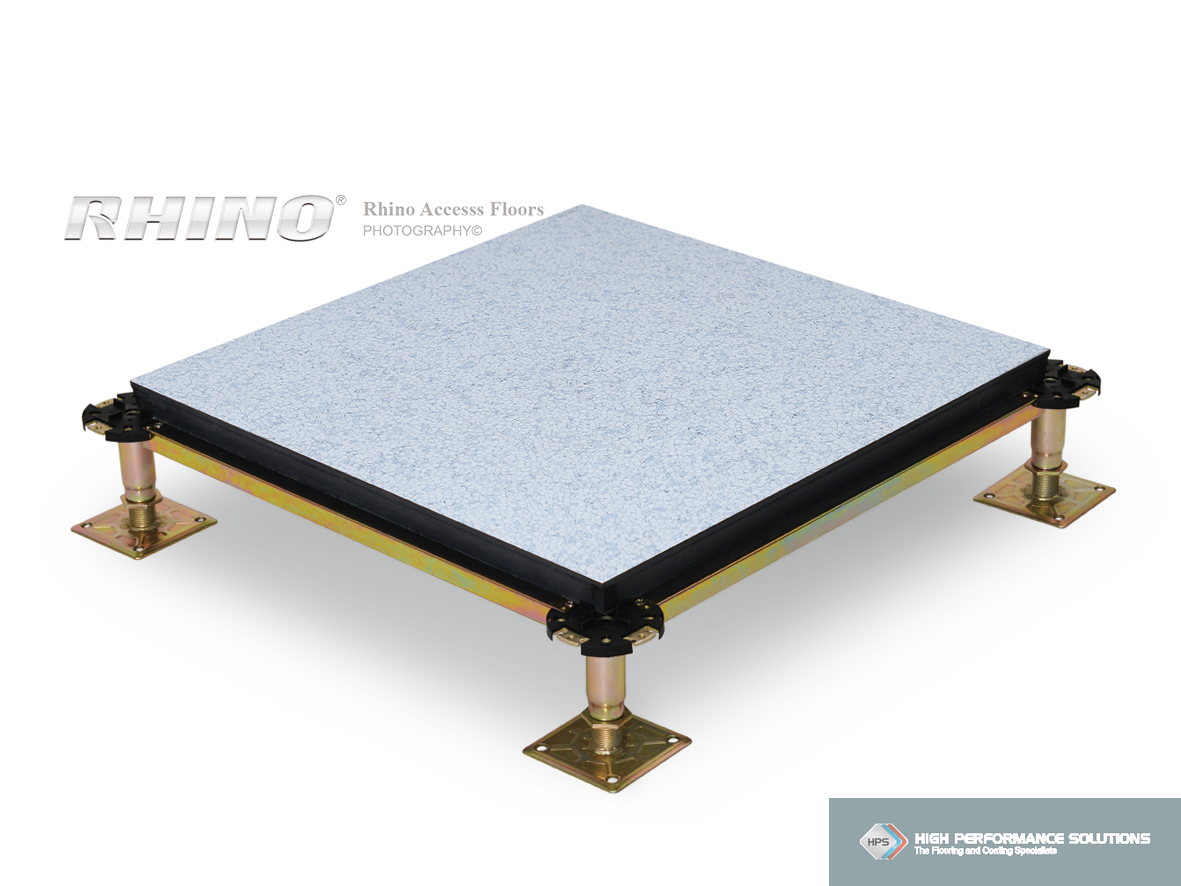

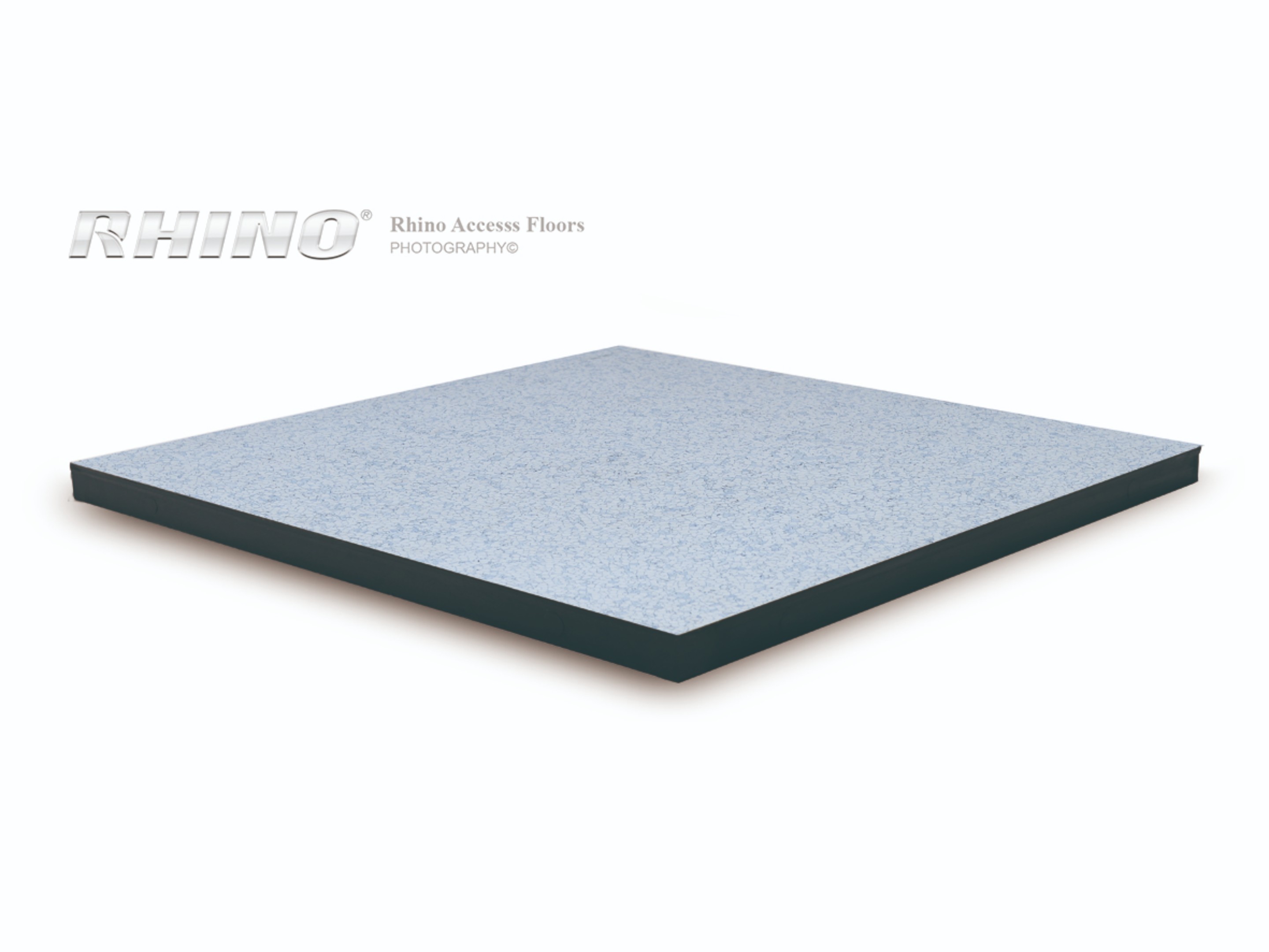

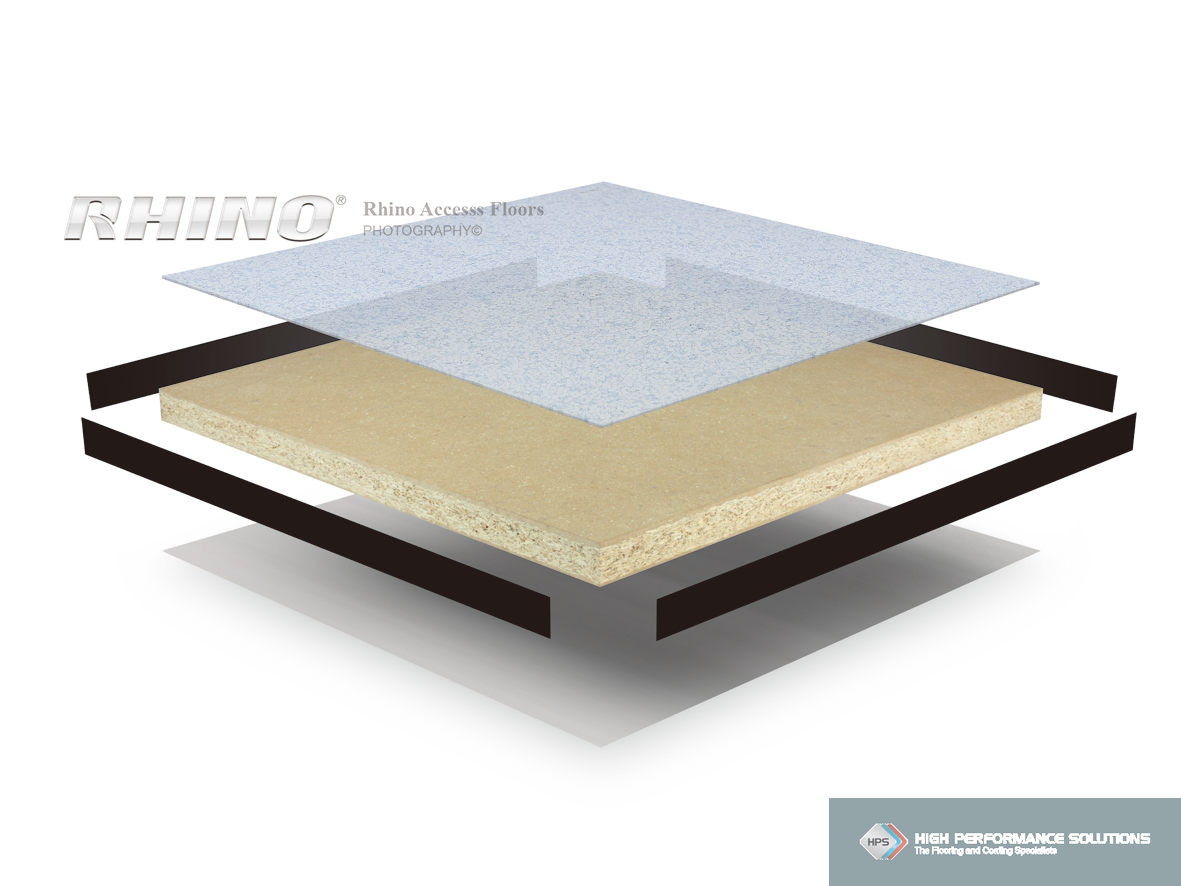

RhinoFLOR® Covered panels are manufactured from a chipboard core (approx. 680 kg/m³) non-toxic and light weight material. The top surface of the core is laminated with anti-static high pressure laminate (HPL) or conductive vinyl (PVC) tiles and the base surface is laminated with galvanized steel sheet. The panel edges are then laminated with an ABS/PVC edge band which provides protection to the chipboard core.

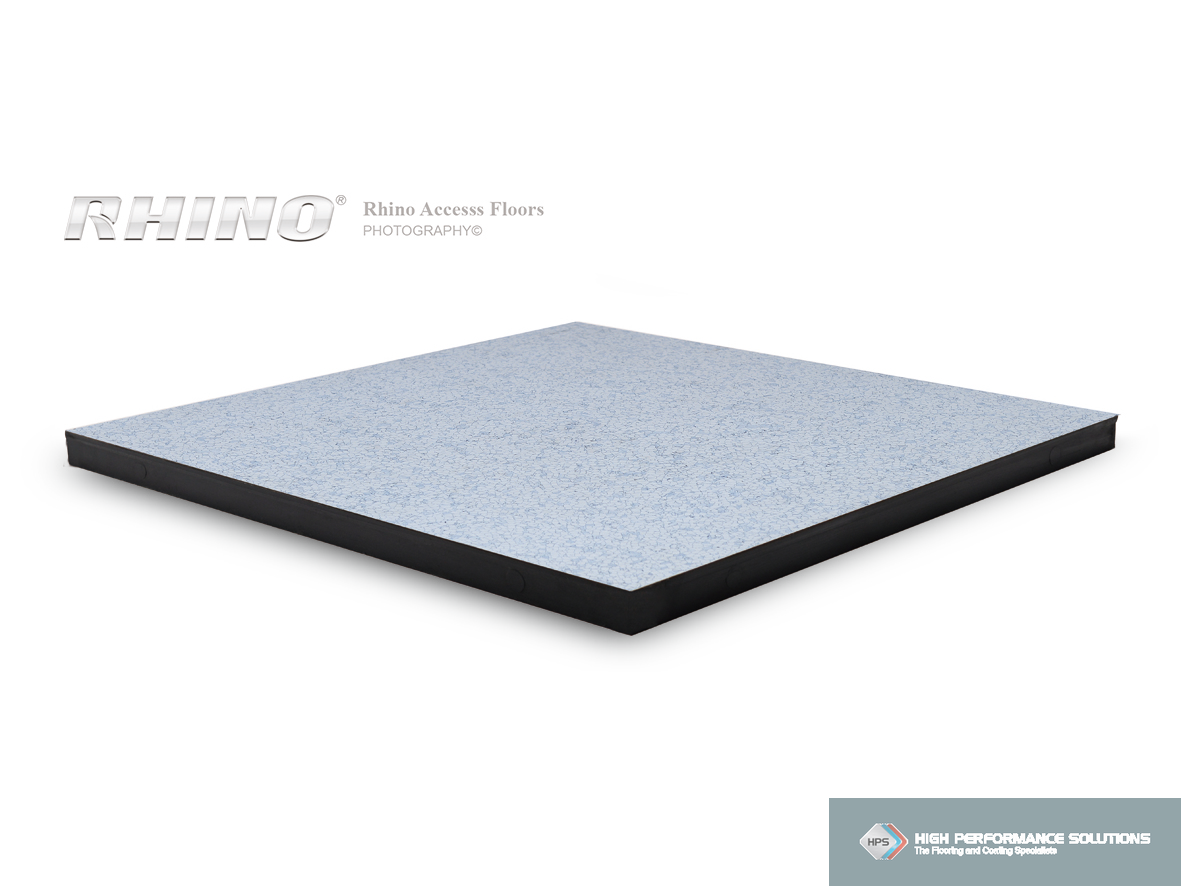

Technical Specs
| F30C | F38C | |
|---|---|---|
| Panel Size | 600mm x 600mm | 600mm x 600mm |
| Panel Thickness (nominal) | 32.00 mm | 40.00 mm |
| Panel Weight | 8.00 kgs | 10.00 kgs |
| System Weight (typical) | 28.29 kgs | 33.85 kgs |
| Point load 25x25mm sq | 3.00 kN | 4.50 kN |
| UDL/SQM | 8.00 kN | 12.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN |
Features
Light weight
2. Good acoustic performance
3. Solid underfoot
4. Low air leakage rate
5. Safe and easy access
6. Excellent lateral stability
