Rhino Raised Flooring / Product information

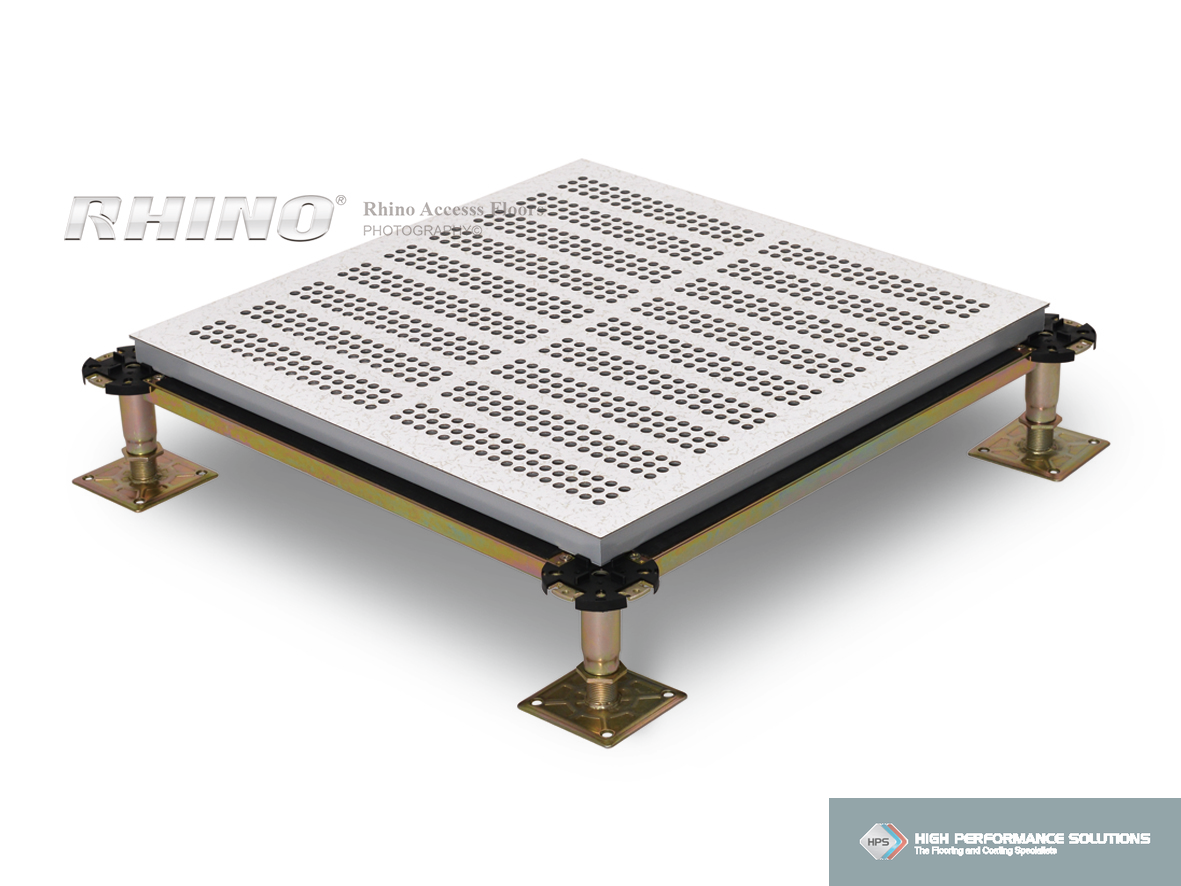

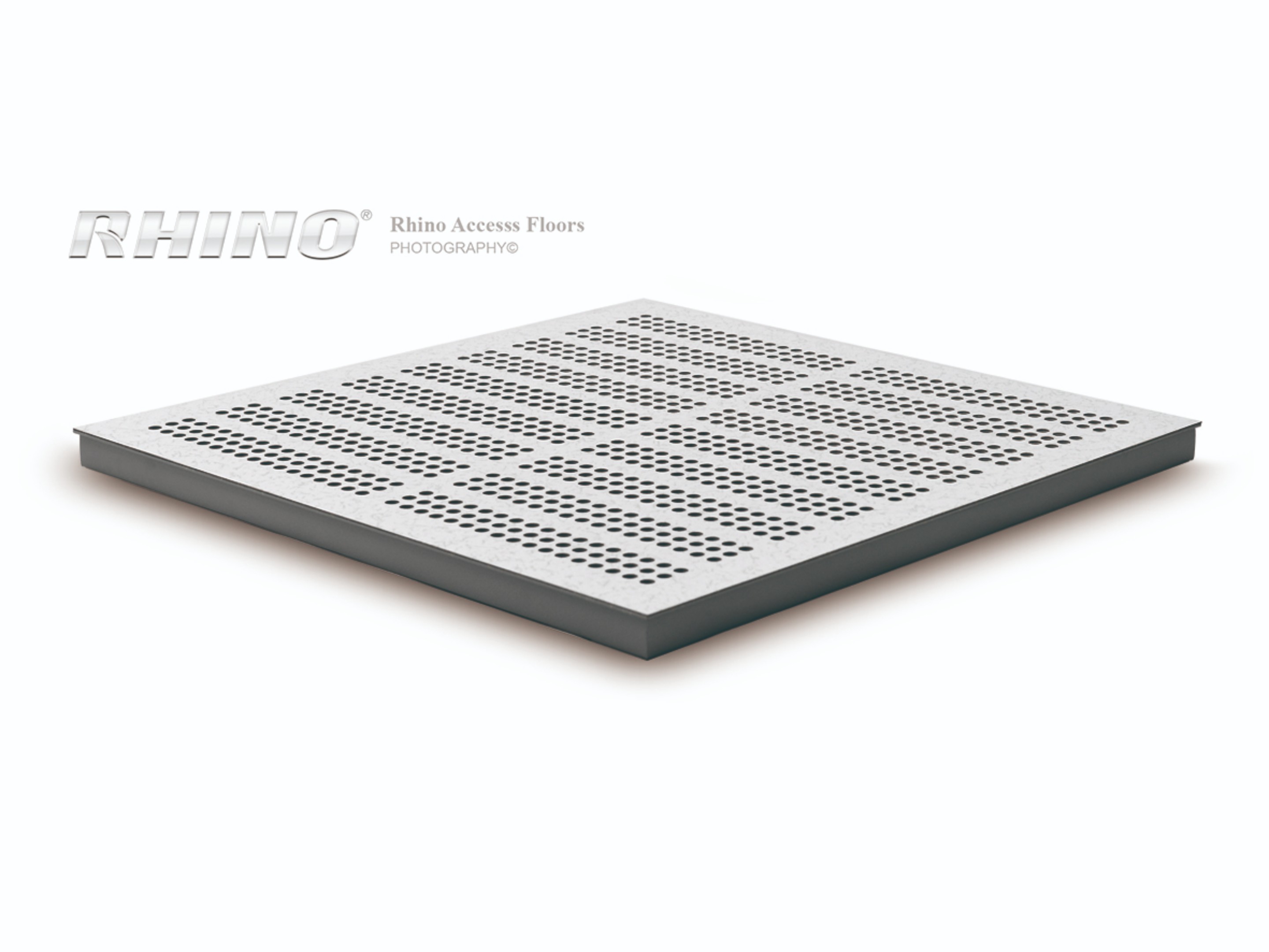

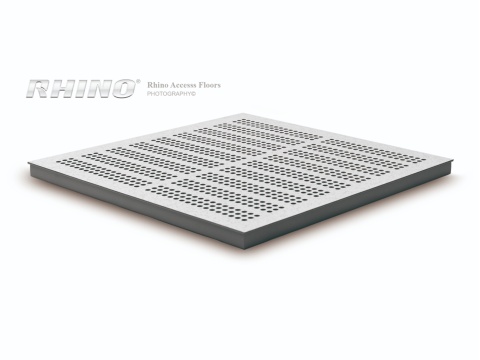

RhinoEU® Airflow panels are manufactured from structural steel technology makes the size and thickness same as EU panels but light weight. The top surface of the panel is laminated with anti-static HPL or conductive vinyl tiles with numbers of different airflow rates, this resistance welded all-steel panels are the premier choice for computer rooms and data centers.

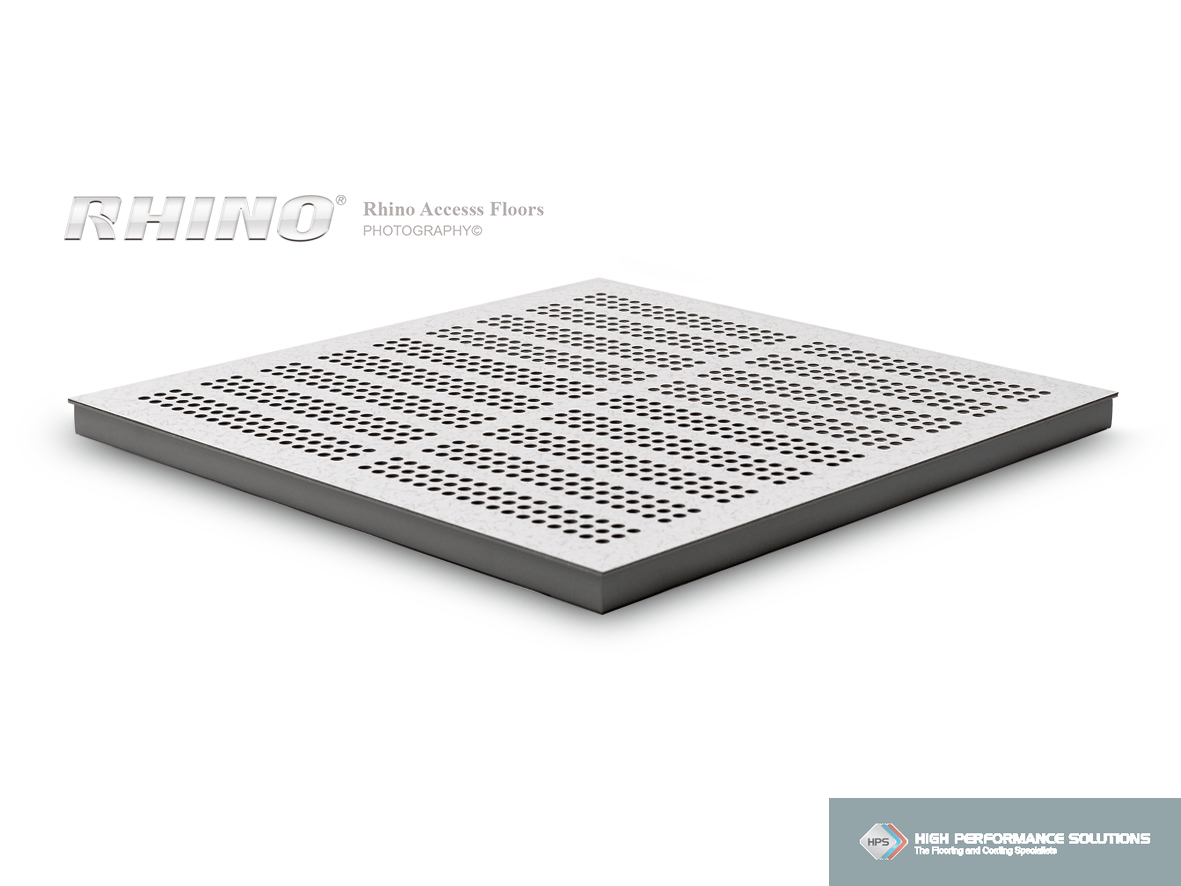

Technical Specs
| RSP 800EU | RSP 1000EU | |
|---|---|---|
| Panel Size | 600mm x 600mm | 600mm x 600mm |
| Panel Thickness (nominal) | 32.00 mm | 32.00 mm |
| Panel Weight | 9.00 kgs | 10.00 kgs |
| System Weight (typical) | 31.07 kgs | 33.85 kgs |
| Point load 25x25mm sq | 3.00 kN | 4.50 kN |
| UDL/SQM | 8.00 kN | 12.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN |

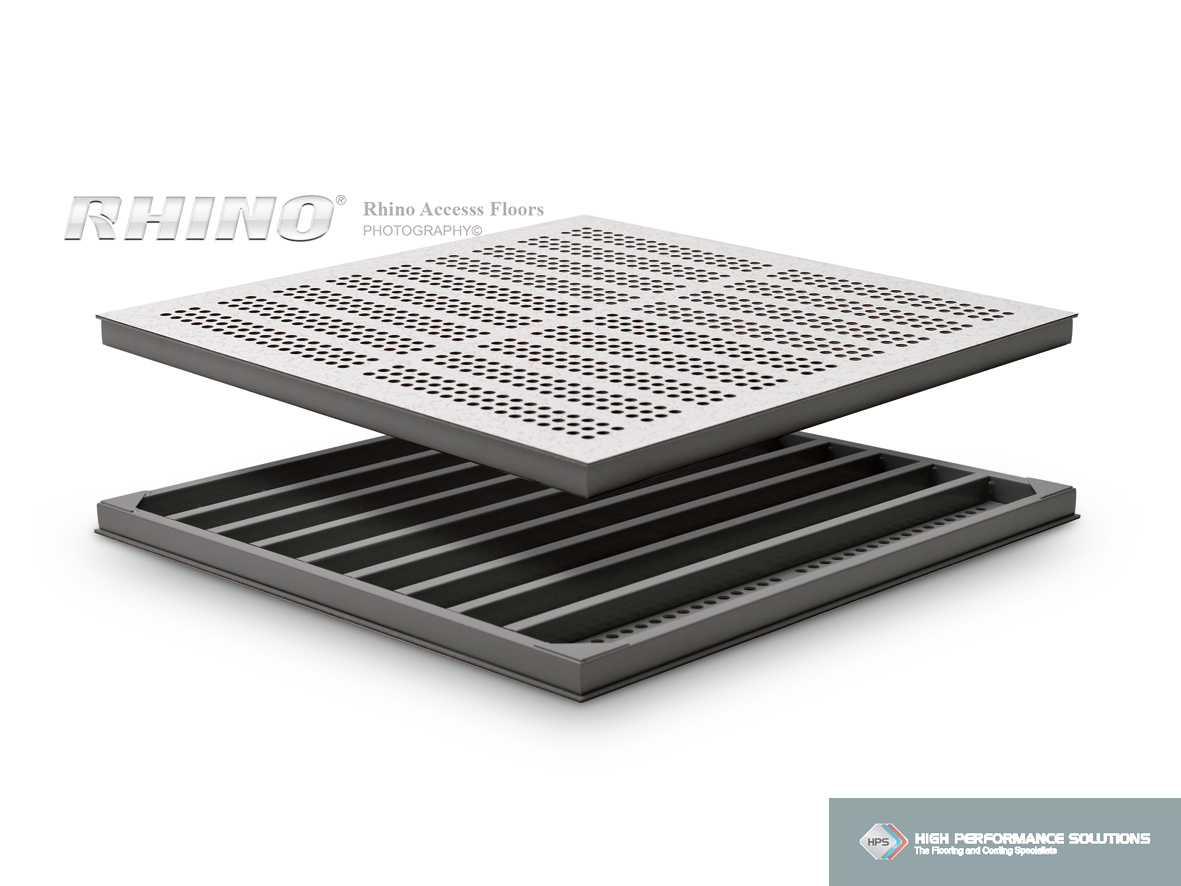

Features
All-steel structural design
2. 90% recyclable
3. Light weight easy install and removal
4. Powder-coated, protective epoxy finish
5. Fully interchangeable with other RhinoEU® panels
Download Brochures
Specify it for your project.
Contact HPS for current technical documentation and guidance on your project requirements.
Request technical information
