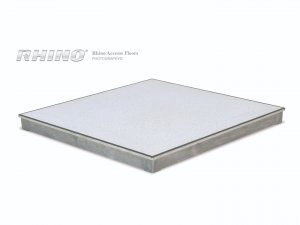

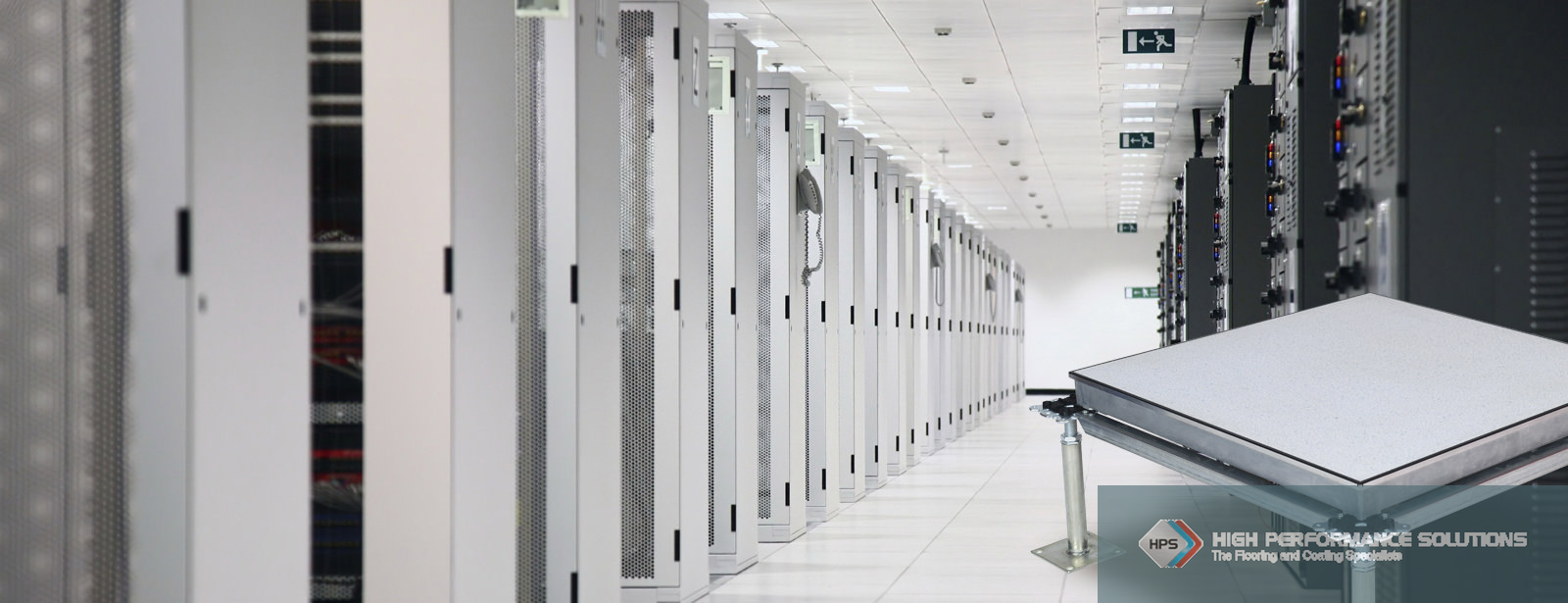

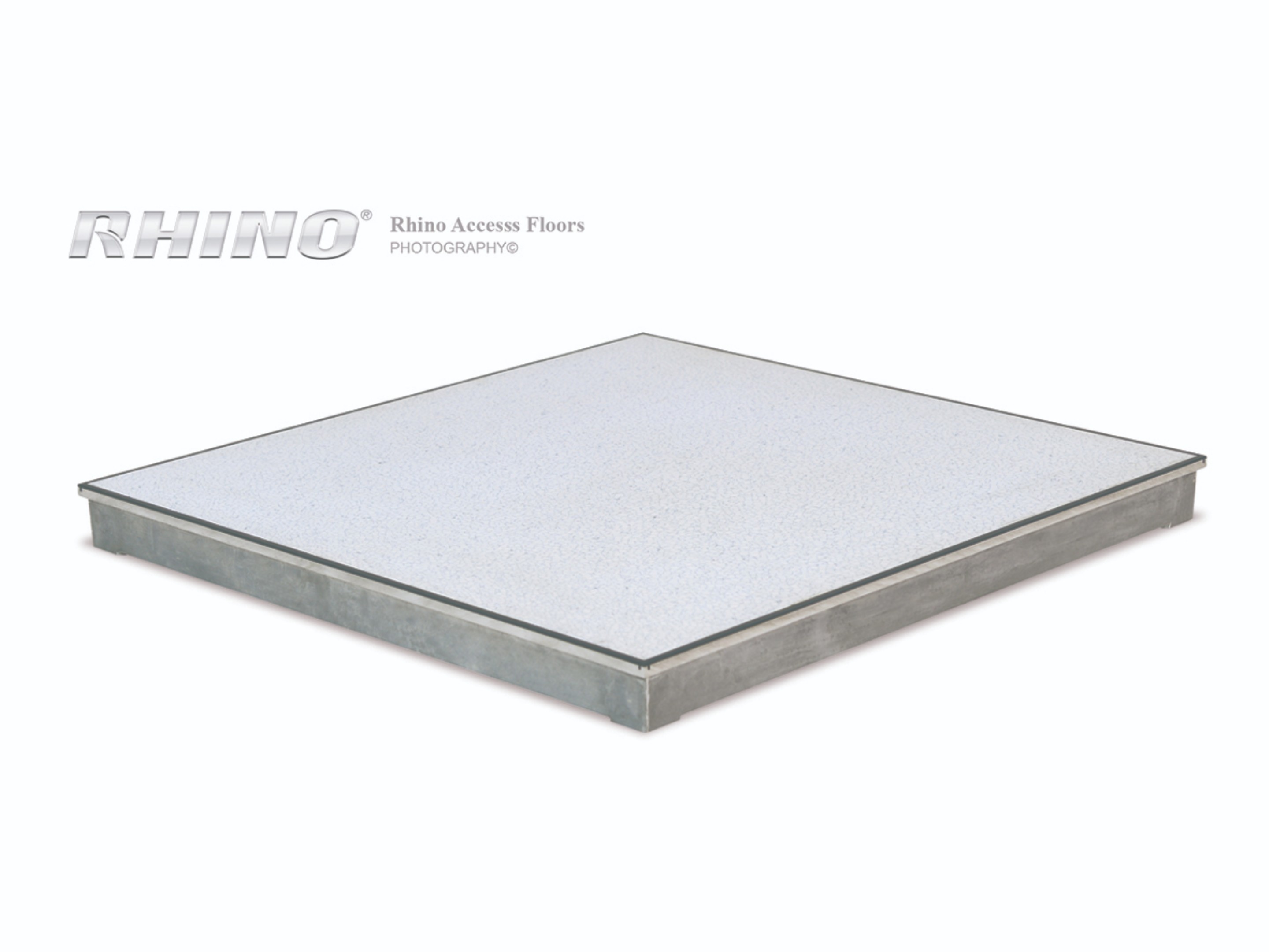

Alutec aluminum solid panels are specifically designed for the areas inside clean rooms where extremely heavy equipments are installed. The unique lattice structure of Rhino’s solid panel allows for excellent weight dispersion. Non-ferrous, precision-machined and lightweight, these panels offer ease-of-handling and a tight, precise fit.

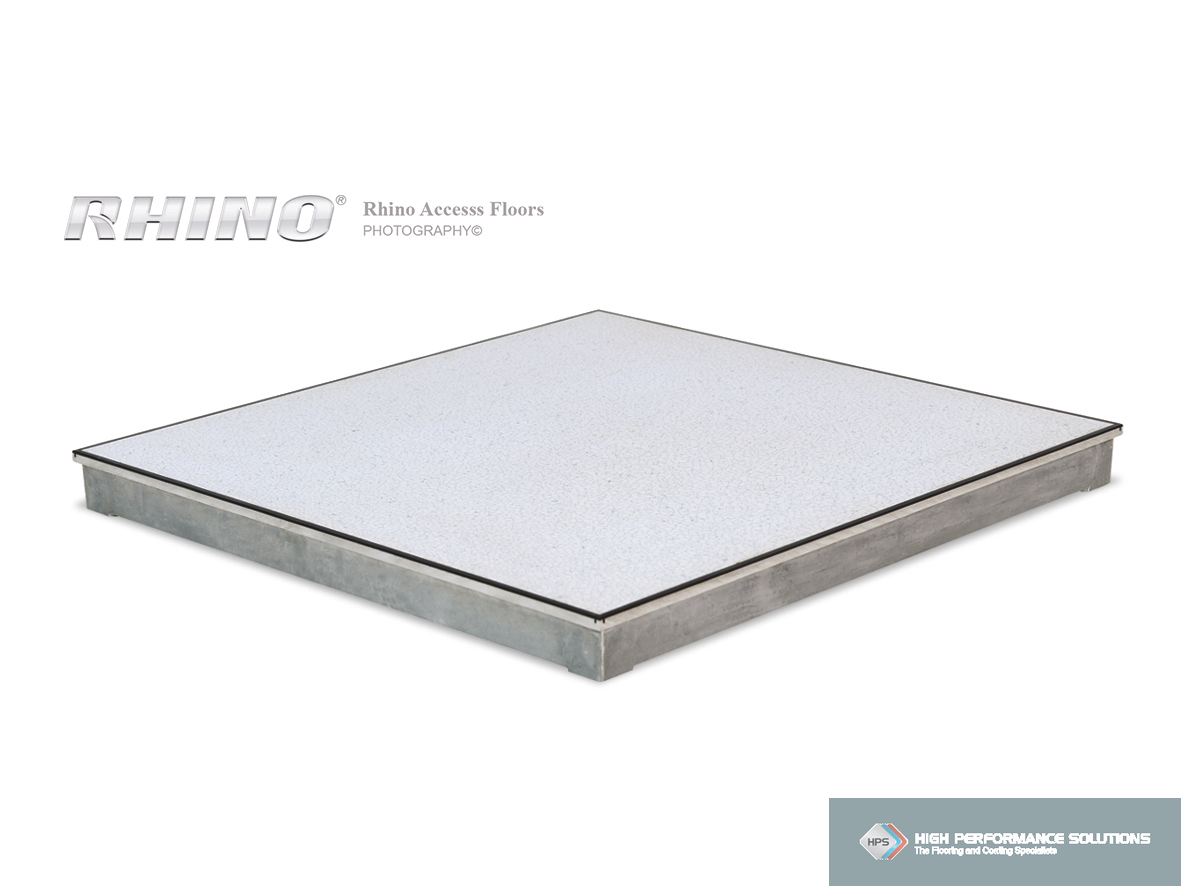

Technical Specs
ALS1000 | ALS1250 | ALS1500 | |
---|---|---|---|
Panel Size | 600mm x 600mm | 600mm x 600mm | 600mm x 600mm |
Panel Thickness (nominal) | 55.00 mm | 55.00 mm | 55.00 mm |
Panel Weight | 10.00 kgs | 11.00 kgs | 12.00 kgs |
System Weight (typical) | 33.85 kgs | 36.63 kgs | 39.41 kgs |
Point load 25x25mm sq | 4.50 kN | 5.56 kN | 6.67 kN |
UDL/SQM | 12.00 kN | 14.83 kN | 17.80 kN |
Ultimate load | 13.50 kN | 16.68 kN | 20.01 kN |

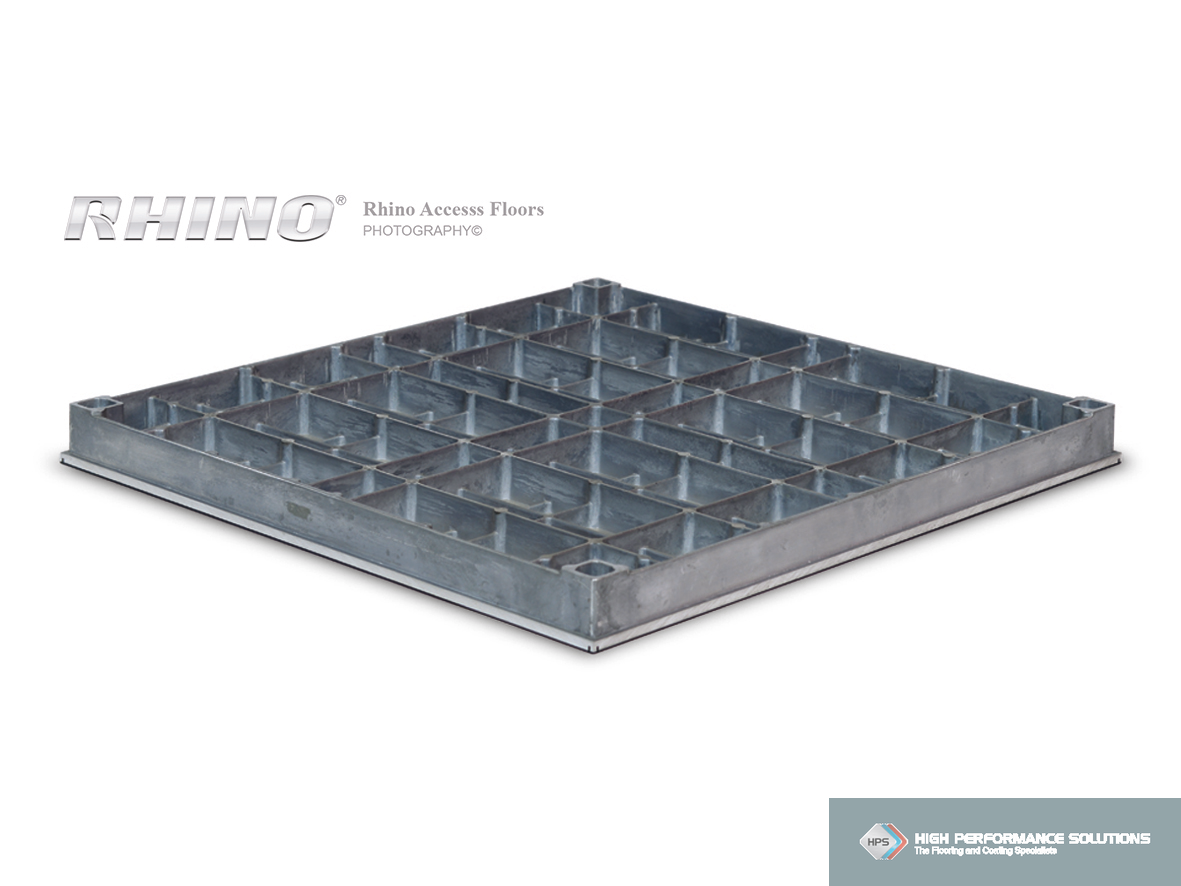

Features
1. Anti-corrosion and anti-magnetic
2. Impressive acoustic performance
3. Superb underfoot comfort
4. Light weight and high loading capacity
5. Low air leakage rate
6. Wide range of covering options
