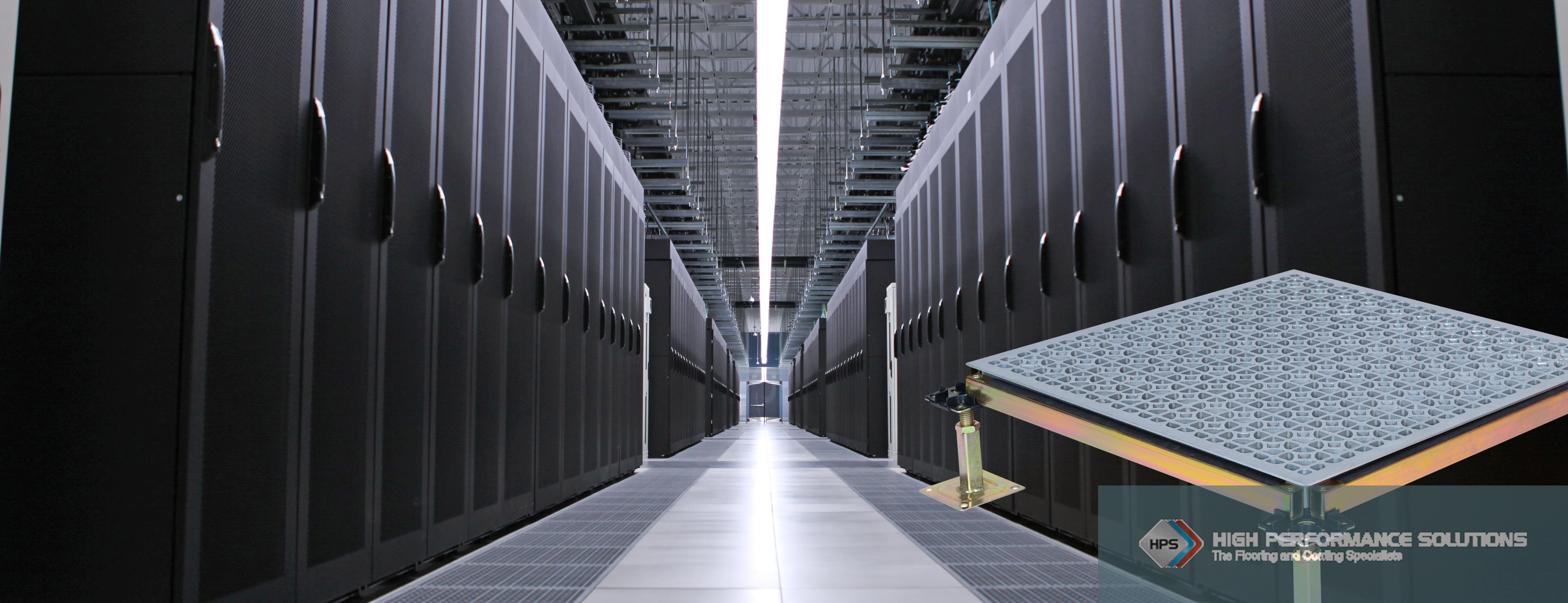

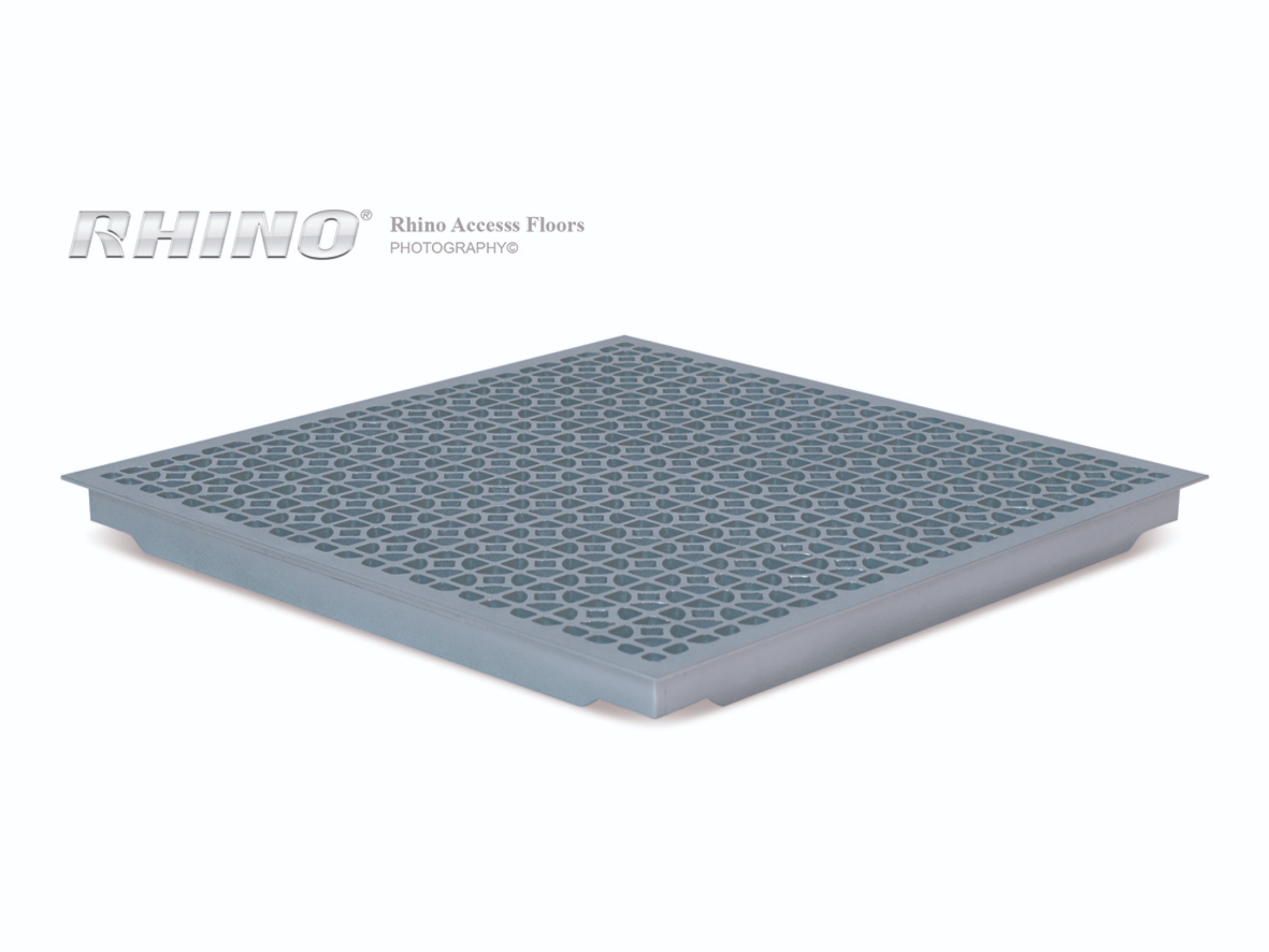

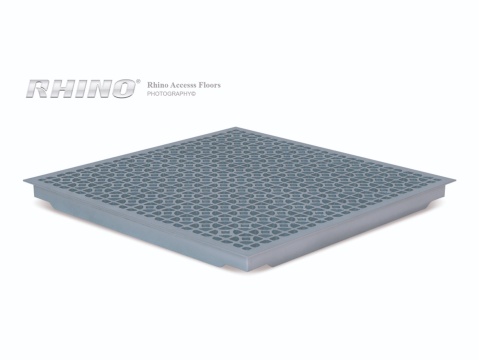

Alutec aluminum circular panel (55% airflow) is an ideal solution for cooling, this panel is specifically designed with no underside obstructions to provide optimum laminar air flow. It has been widely used in data centers and server rooms.

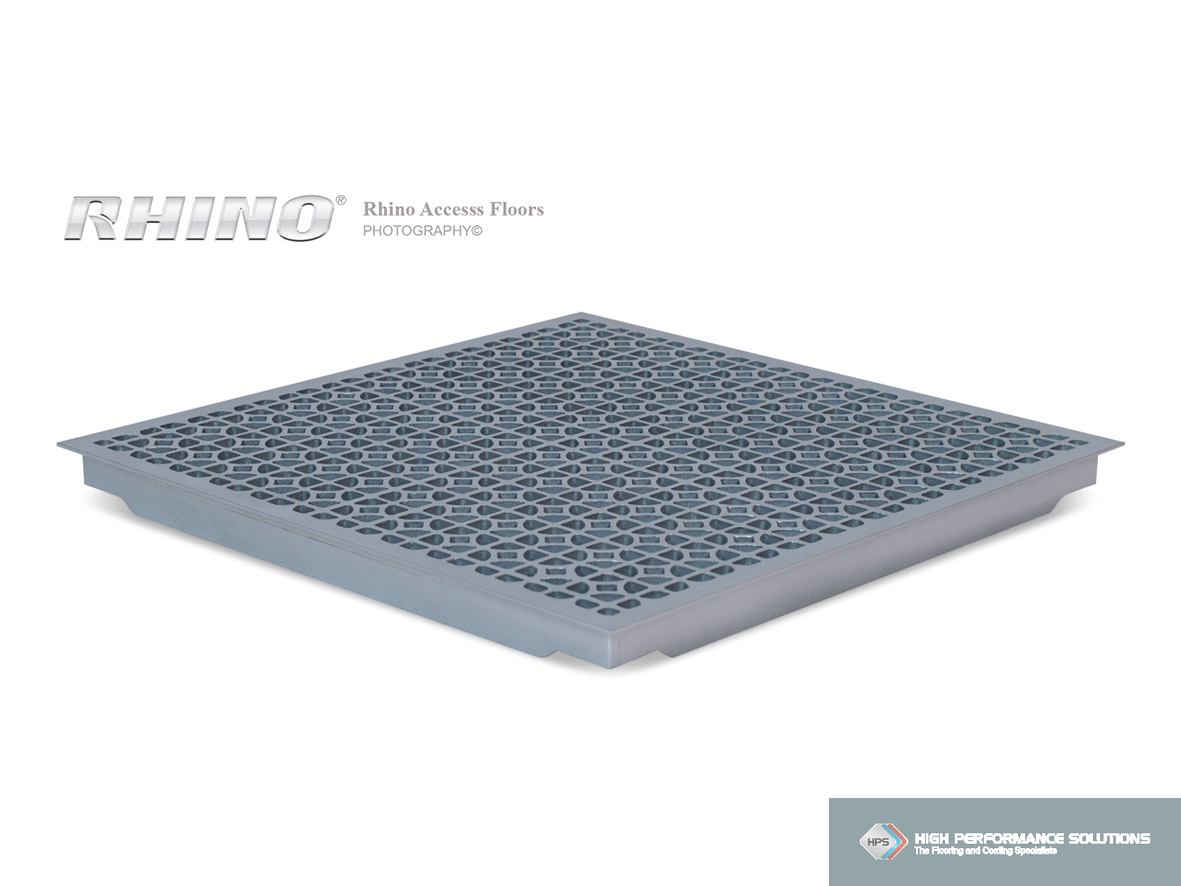

Technical Specs
ALC1000 | ALC1250 | ALC1500 | |
---|---|---|---|
Panel Size | 600mm x 600mm | 600mm x 600mm | 600mm x 600mm |
Panel Thickness (nominal) | 55.00 mm | 55.00 mm | 55.00 mm |
Panel Weight | 9.00 kgs | 10.00 kgs | 11.00 kgs |
System Weight (typical) | 31.07 kgs | 33.85 kgs | 36.63 kgs |
Point load 25x25mm sq | 4.50 kN | 5.56 kN | 6.67 kN |
UDL/SQM | 12.00 kN | 14.83 kN | 17.80 kN |
Ultimate load | 13.50 kN | 16.68 kN | 20.01 kN |

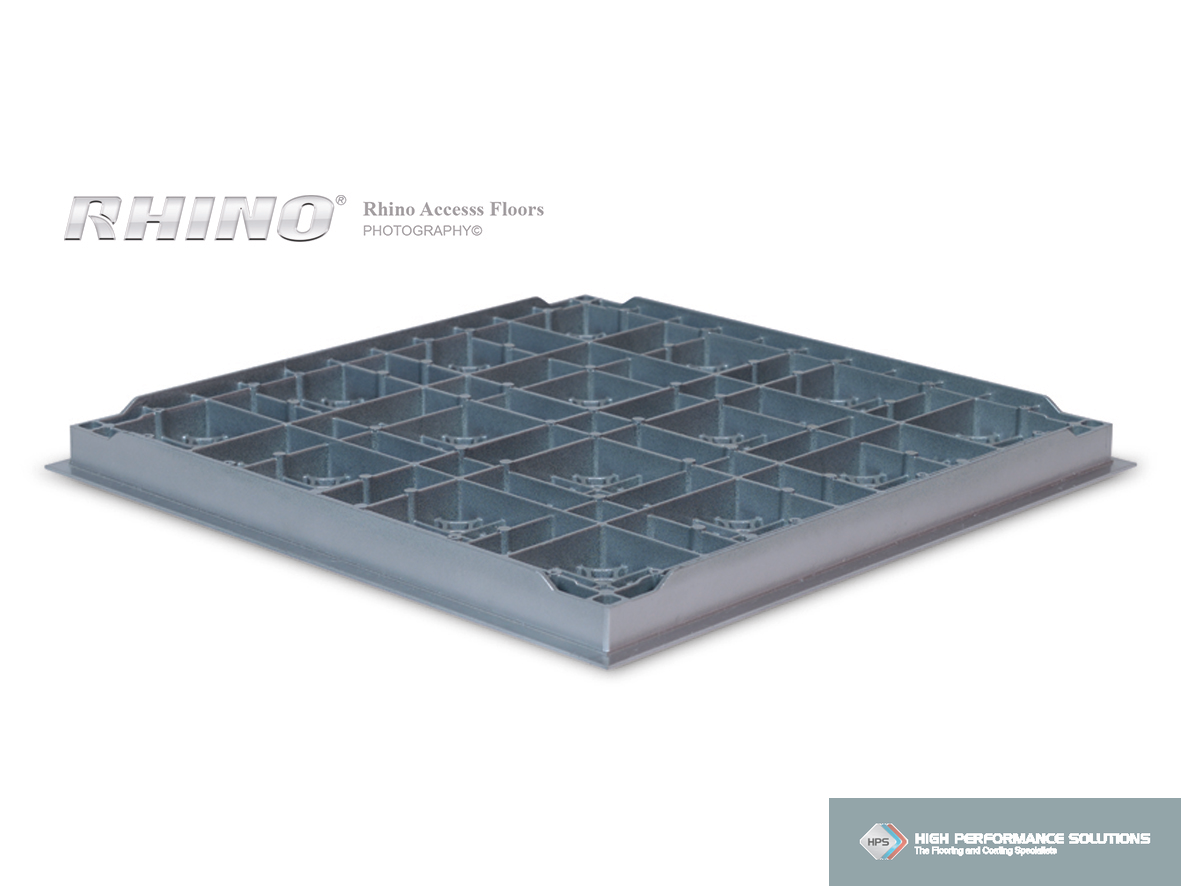

Features
1. Non-toxic and non-combustible
2. Anti-corrosion and anti-magnetic
3. Superb underfoot comfort
4. Light weight and high loading capacity
5. 55% airflow rates
6. Adaptable for both EU and Roc syste
