RhinoCross® Channel
Rhino Raised Flooring / Product information

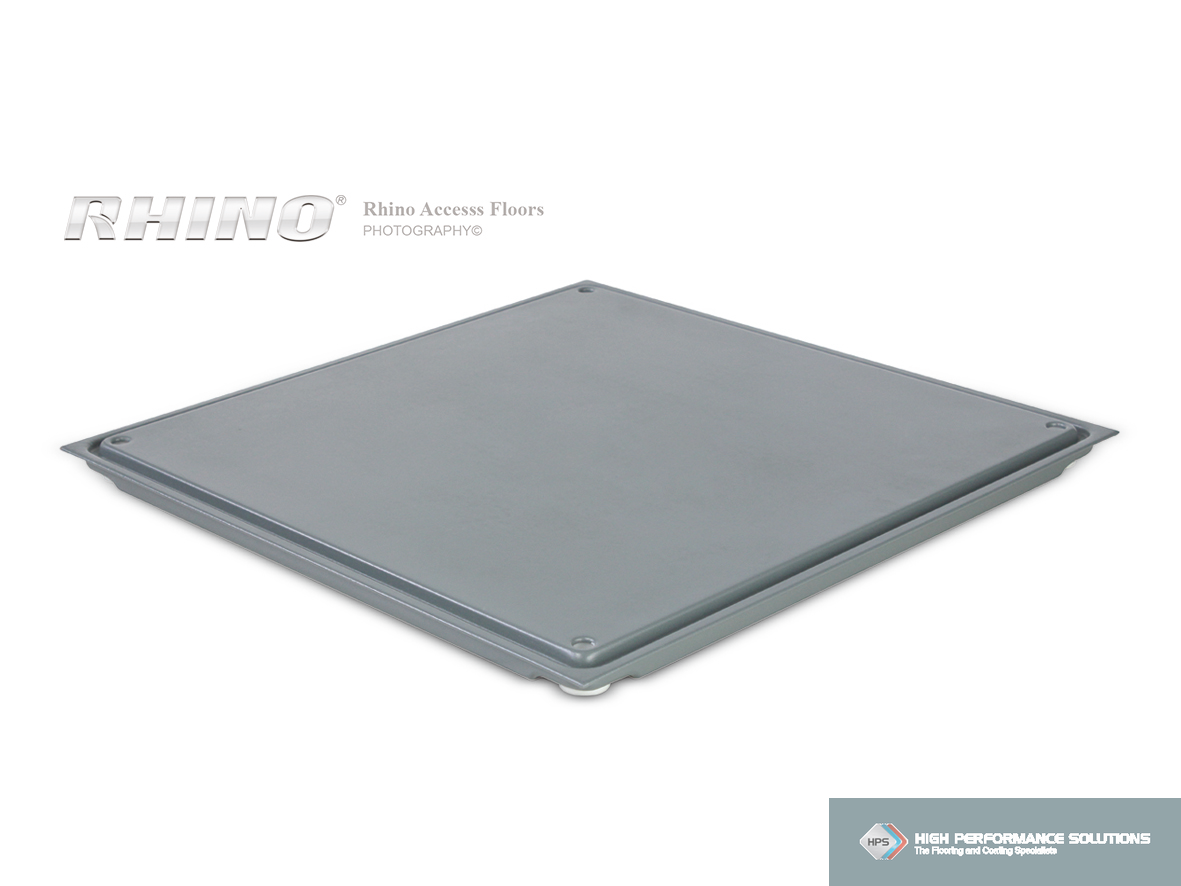

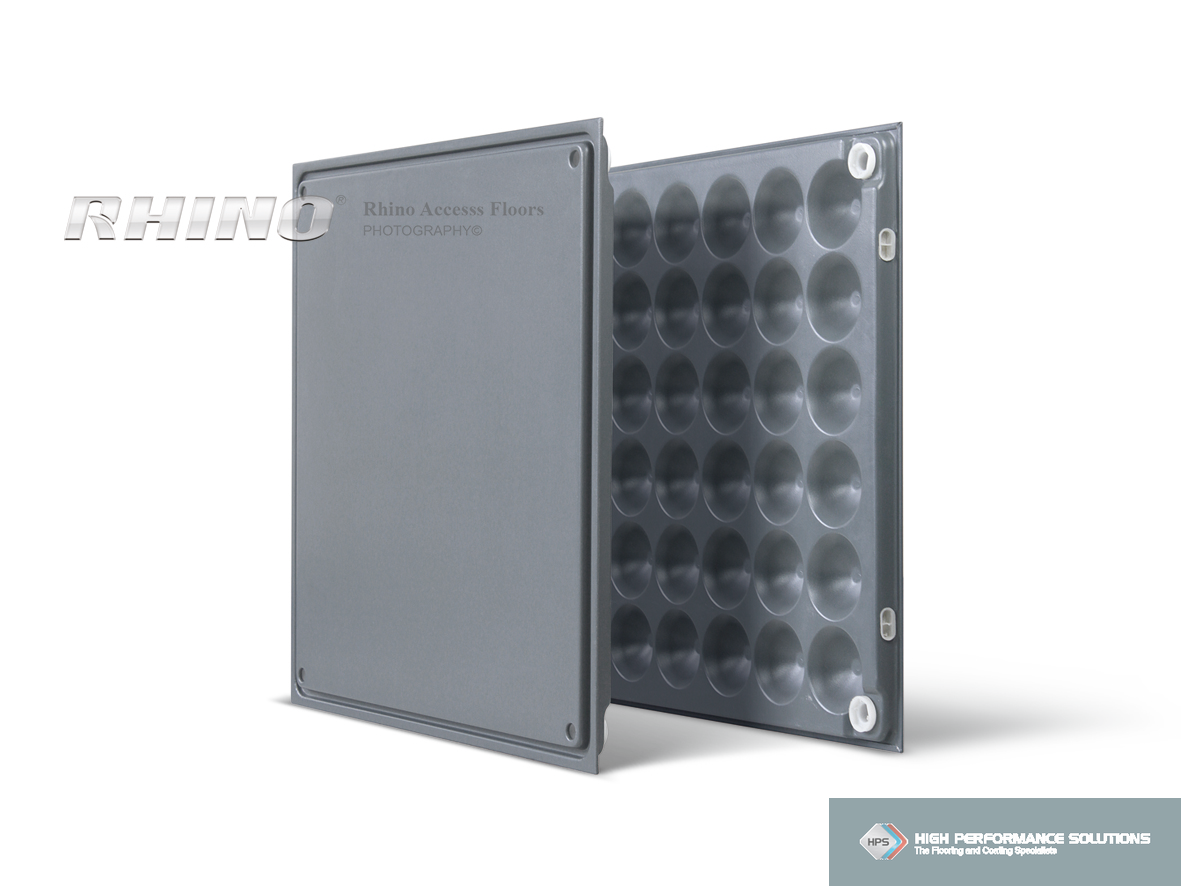

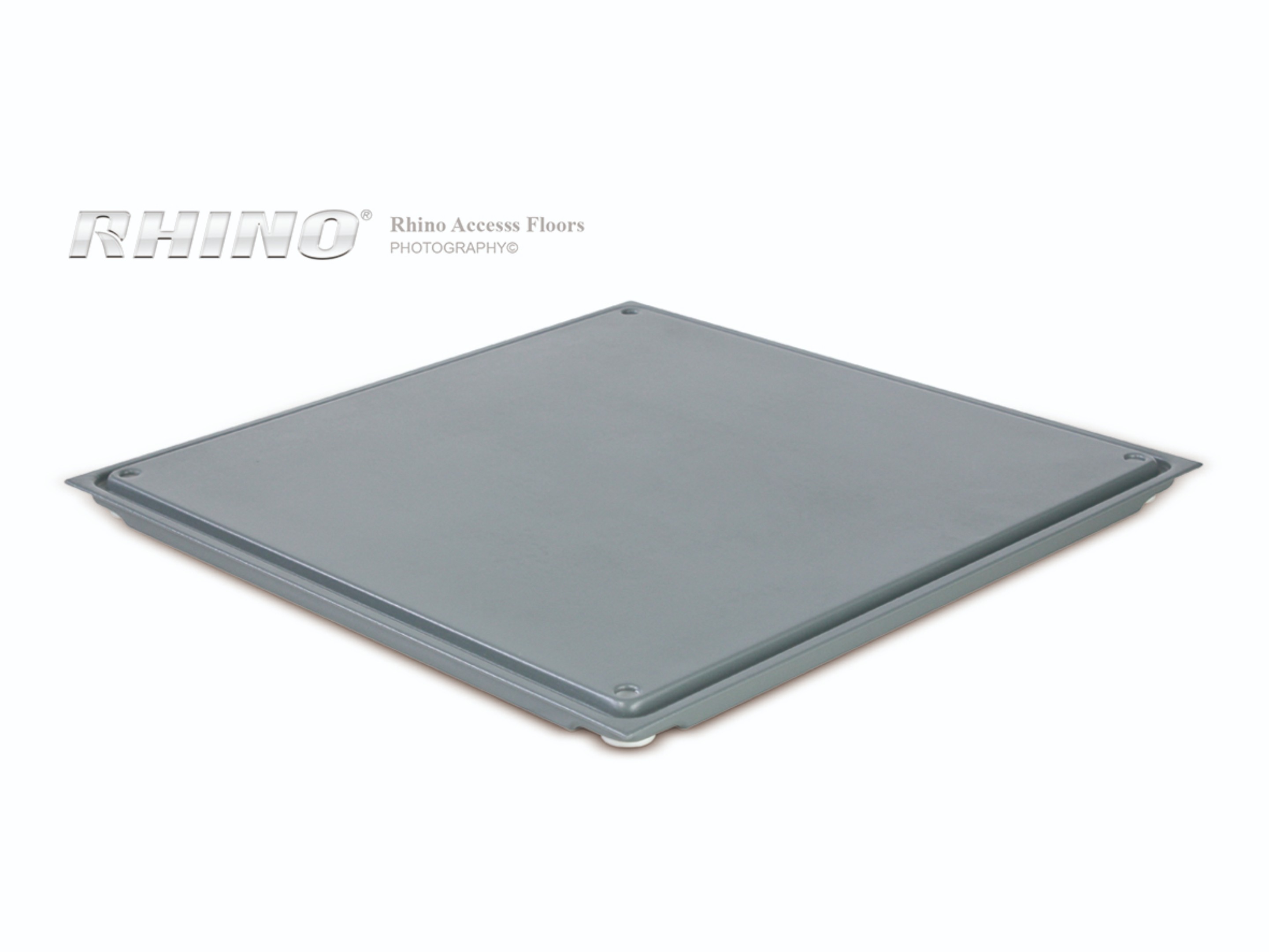

Cross Channel® system low-profile access floor is a cementitious filled steel multi-channel cable management system. It is height adjustable from 35mm to 100mm. The panel is made of high quality steel plates which are press-formed and filled with bubble cement, then sprayed with powder coat epoxy finish. Zinc-plated height-adjustable pedestals are self locking and range in height from 35mm to 100mm. Grooved channels interlock and keep components in place. Symmetrical concave design distributes loads evenly.
| CL501 | CL502 | |
|---|---|---|
| Panel Size | 500mmx500mm | 500mmx500mm |
| Panel Thickness (nominal) | 25.00 mm | 26.00 mm |
| Panel Weight | 9.50 kgs | 10.00 kgs |
| System Weight (typical) | 35.19 kgs | 36.58 kgs |
| Point load 25x25mm sq | 3.00 kN | 4.50 kN |
| UDL/SQM | 8.00 kN | 12.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN |
1. Low-profile height adjustable 35-100mm
2. Quick connect channel system
3. Organized channels for high volume cable management
4. Save time and expense for facility re-configurations
5. Eliminate electrified furnishings, save costs on moves or changes, improved esthetics
Specify it for your project.
Contact HPS for current technical documentation and guidance on your project requirements.
