Rhino iPed® outdoor adjustable pedestal is an innovative solution for external raised and ventilated terraces. Technology is based on usage height regulated adjustable pedestals supports which can adjust height of every terrace easily. Terrace supports eliminate water laying on the surface, constant humidity, moss and lichen expansion and water drainage problems. Ventilated terrace allows all time access to waterproof layer and easy maintenance.

Technical Specs

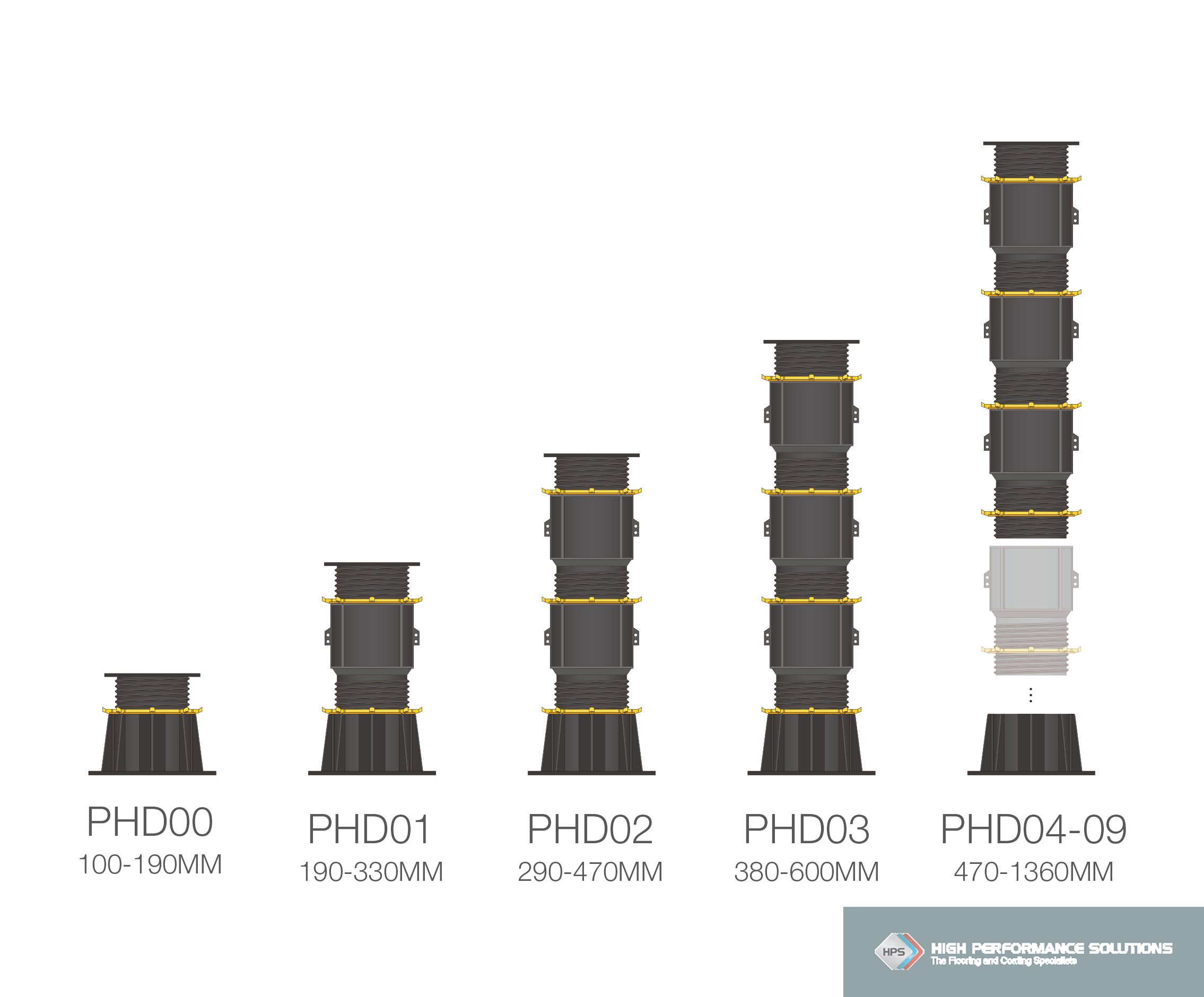

Model No.	Performance Grades	Height Ranges	Static Load			Ultimate Load
			1 Circle	1/2 Circle	1/4 Circle	1 Circle	1/2 Circle	1/4 Circle
PHD00	Heavy Duty	100-190 mm	3,320 kg	2,140 kg	1,750 kg	4,230 kg	2,640 kg	2,340 kg
PHD01	Heavy Duty	190-330 mm	3,070 kg	1,910 kg	1,580 kg	3,990 kg	2,460 kg	2,100 kg
PHD02	Heavy Duty	290-470 mm	2,960 kg	2,030 kg	1,530 kg	3,890 kg	2,410 kg	2,040 kg
PHD03	Heavy Duty	380-600 mm	2,920 kg	1,970 kg	1,500 kg	3,820 kg	2,370 kg	1,980 kg
PHD04-09	Heavy Duty	470-1360 mm	2,890 kg	1,900 kg	1,470 kg	3,780 kg	2,320 kg	1,940 kg

Features

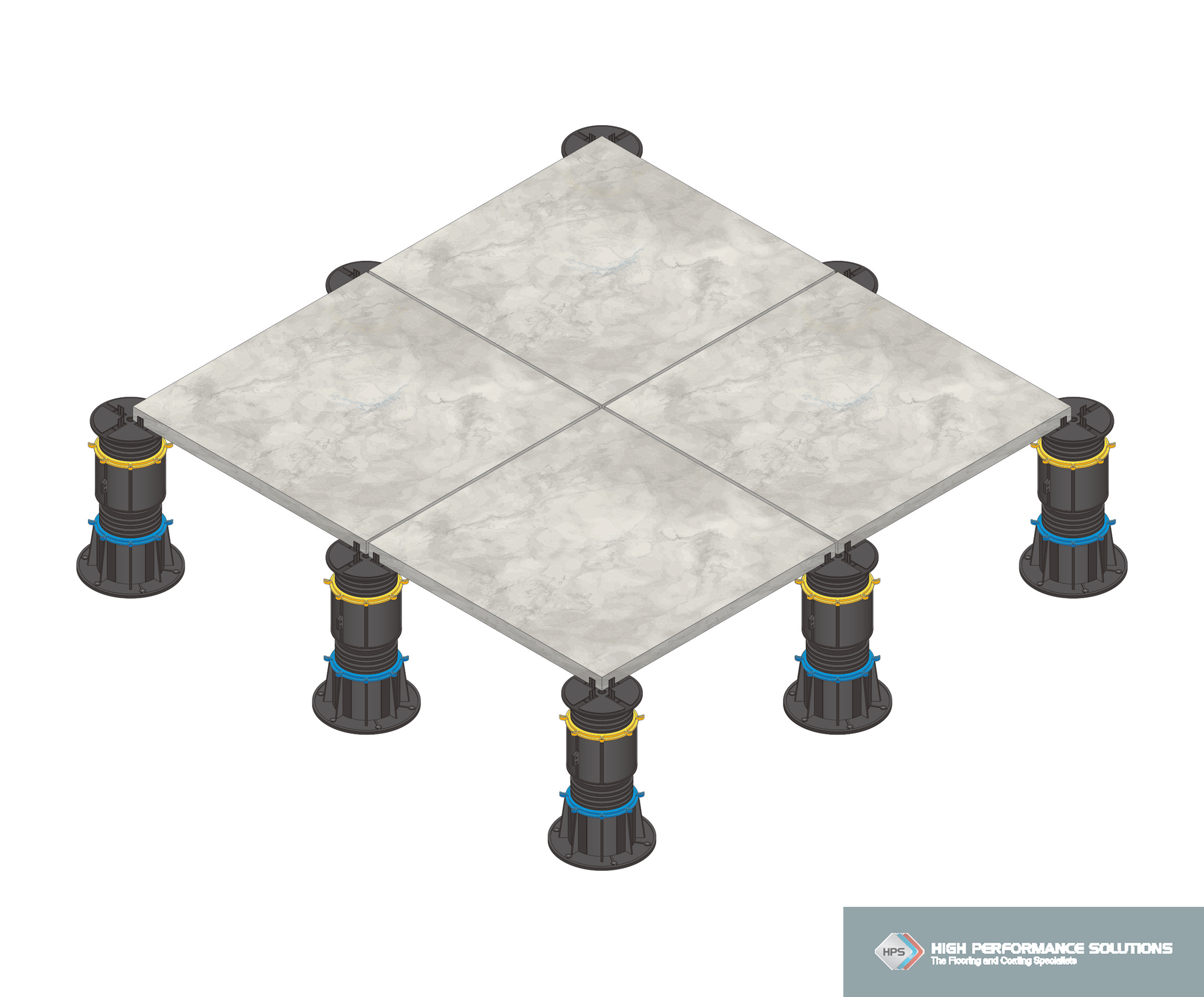

1. Pavers: natural stone, concrete tiles, ceramic tiles etc…

2. Timber decking: natural wood, wooden decking, WPC composite decking etc…

3. Glass or polycarbonate

4. Gratings: metal, aluminum, FRP

Download Brochures

RhinoIPED® Outdoor Pedestal.pdf (PDF; 2664.2kb)
