Floor Box

Category: Accessories
Price: 1,00 Php
  • Floor Box

    Floor Box

  • 1

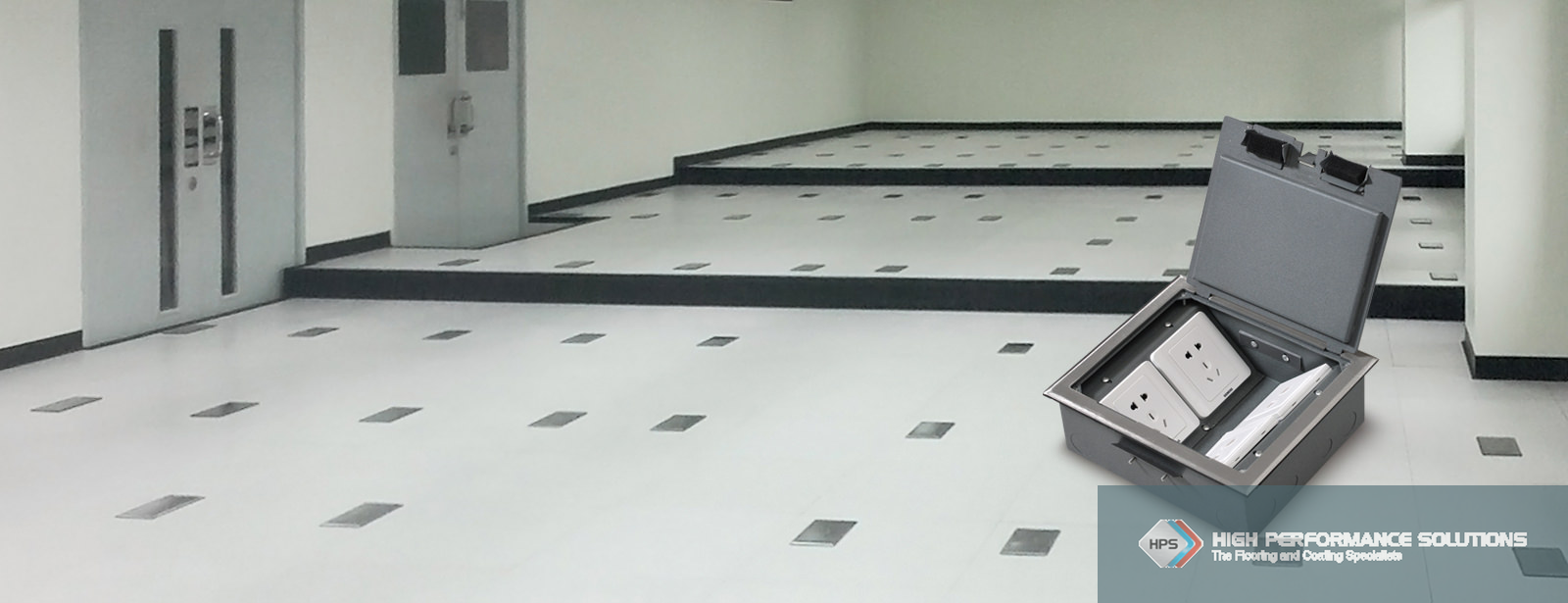

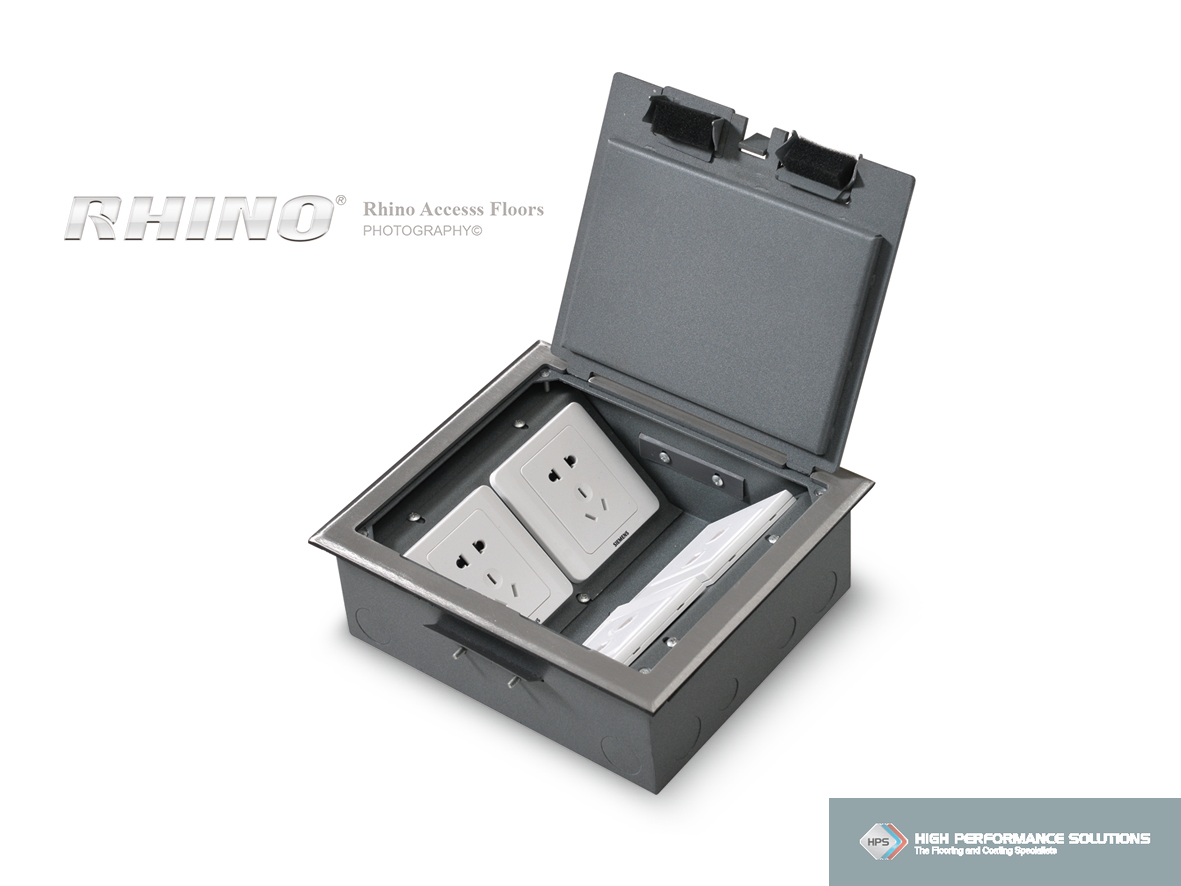

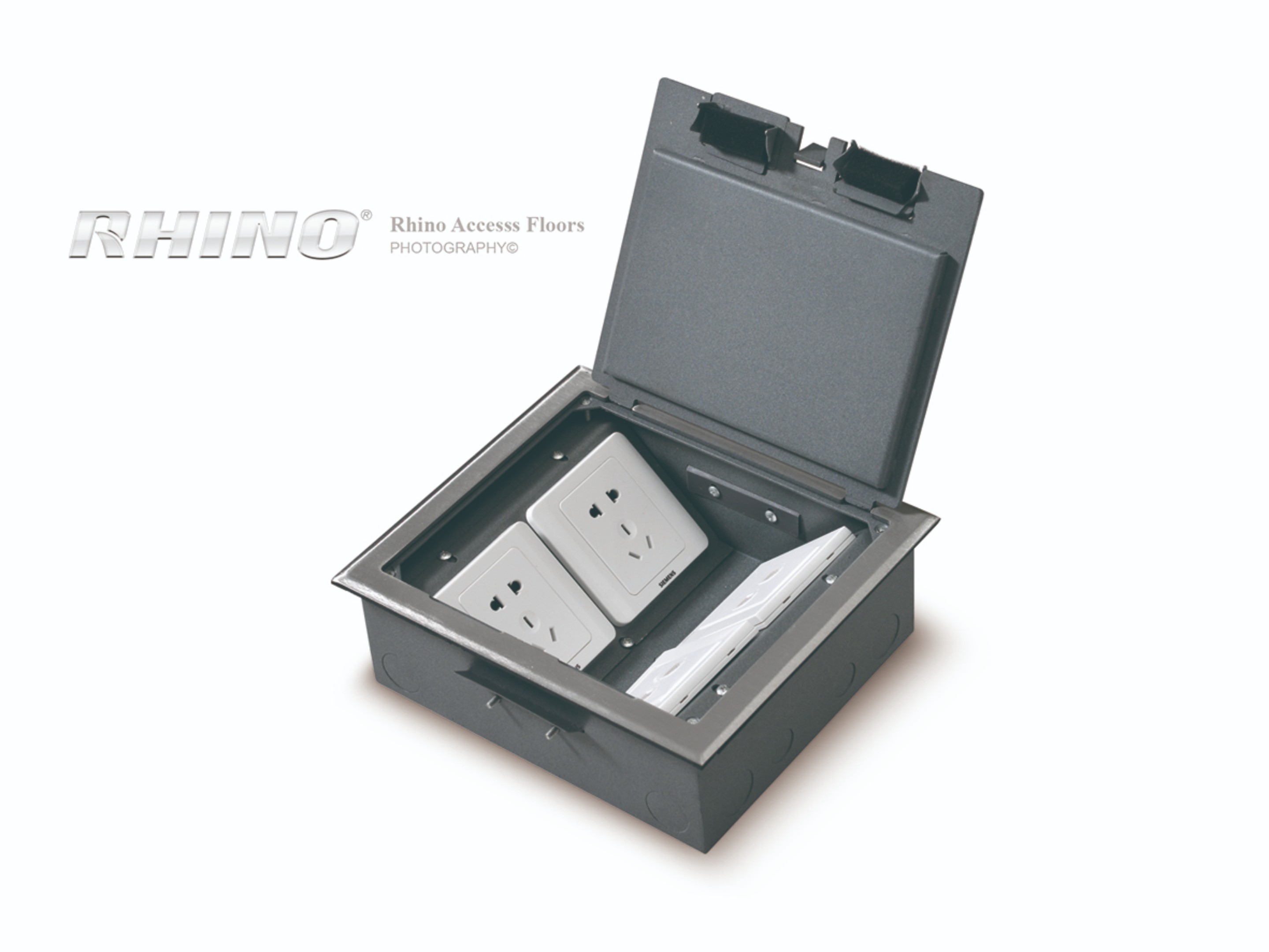

Rhino stainless steel floor box is a cable management system designed specifically for the distribution of power, voice and data service to meet the requirements of raised access flooring environments. The system is economical, relocatable, easily installed and highly flexible thus providing good solution to meet every requirement demand by building owners, architects and consultants involving in providing a highly efficient and easily managed system for both new buildings and buildings under refurbishing.

Floor Box

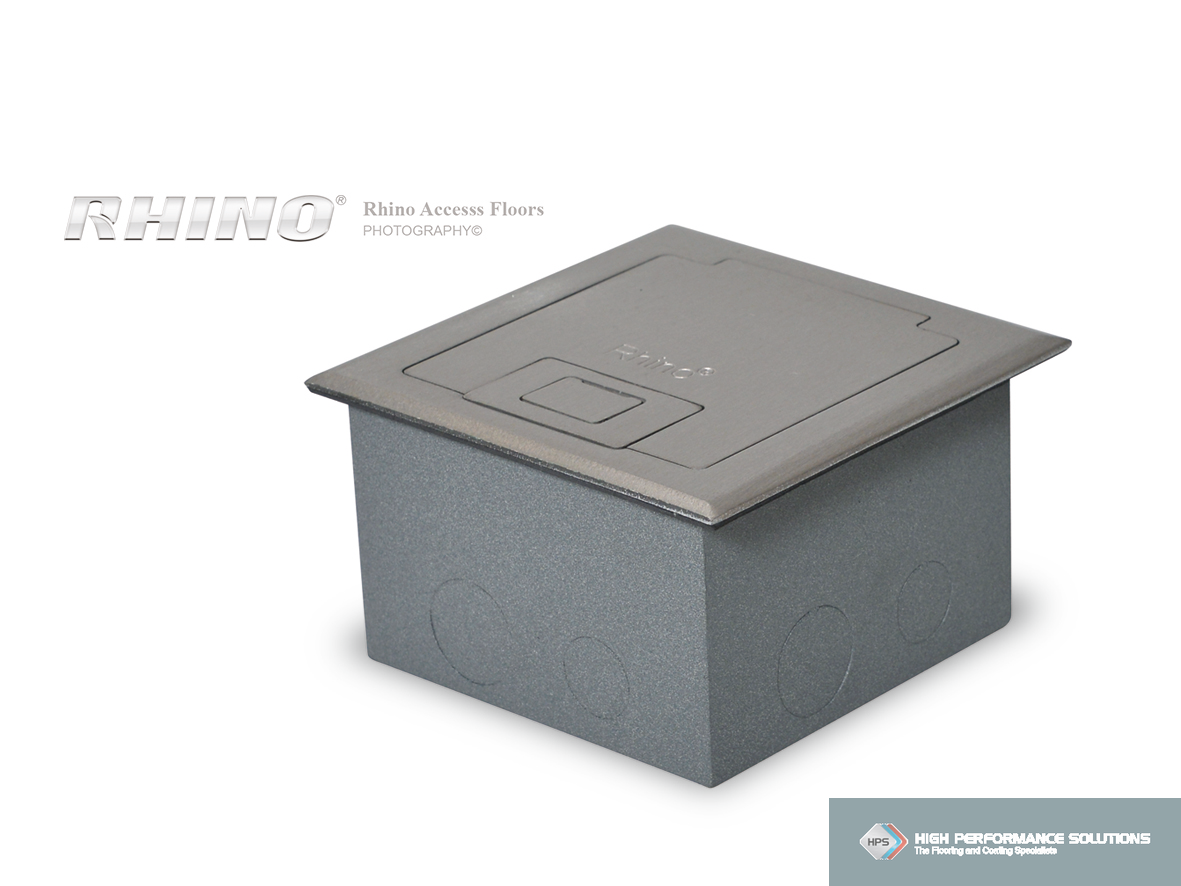

Raised Flooring Philippines - RFB-130 pix

RFB-130

Cover size:
 130mm x 130mm
 Box body size:
 112mm x 112mm
 Access floor open size:
 117mm x 117mm
The RFB-130 features a stainless steel cover. This model has beveled edges to allow the cover to conceal the cut edge of the carpet or flooring below. The solid stainless steel cover is useful for installations where the flooring material is not suitable for use in rebated cover. One cord outlet port folds into the box to allow cables to exit when in use.

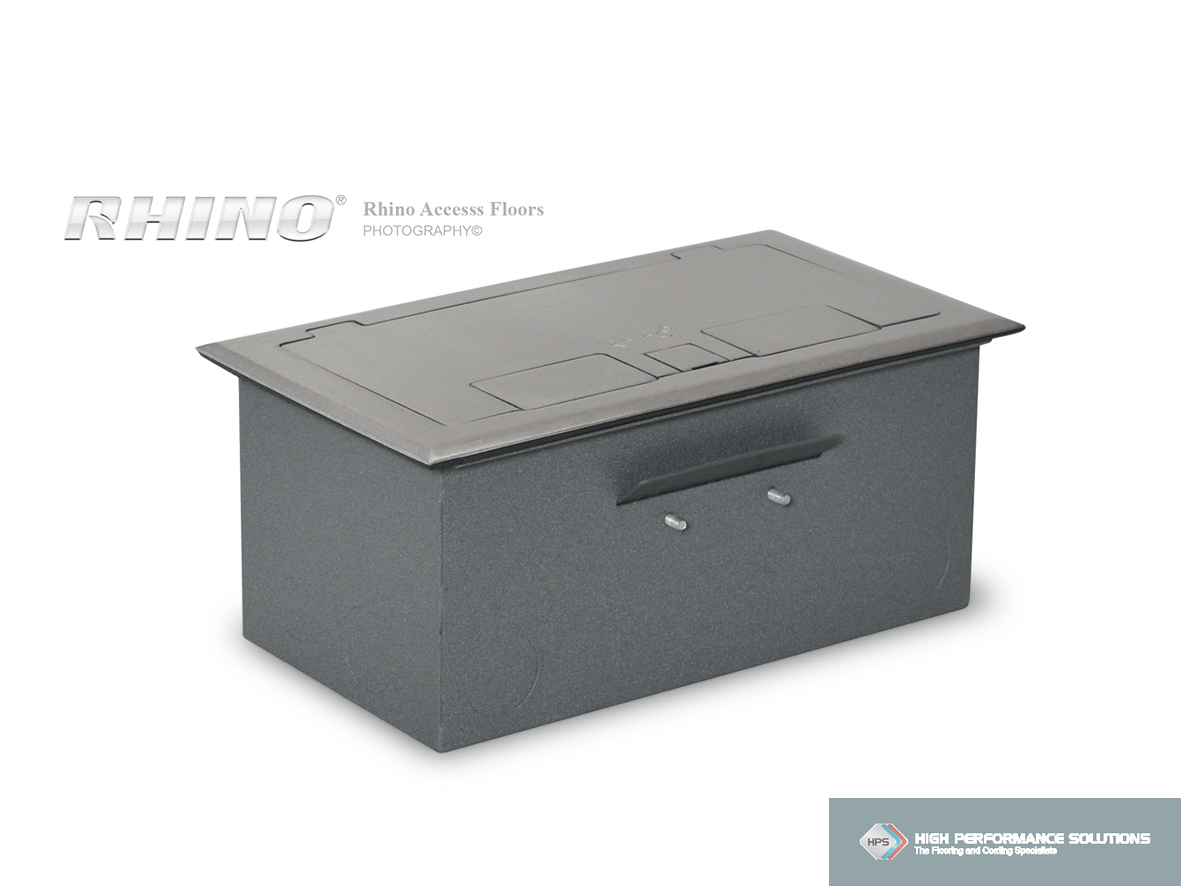

Raised Flooring Philippines - RFB-230 pix

RFB-230

Cover size:
 230mm x 130mm
 Box body size:
 210mm x 110mm
 Access floor open size:
 215mm x 115mm
The RFB-230 features a stainless steel cover. This model has beveled edges to allow the cover to conceal the cut edge of the carpet or flooring below. The solid stainless steel cover is useful for installations where the flooring material is not suitable for use in rebated cover. Two cord outlet ports fold into the box to allow cables to exit when in use.

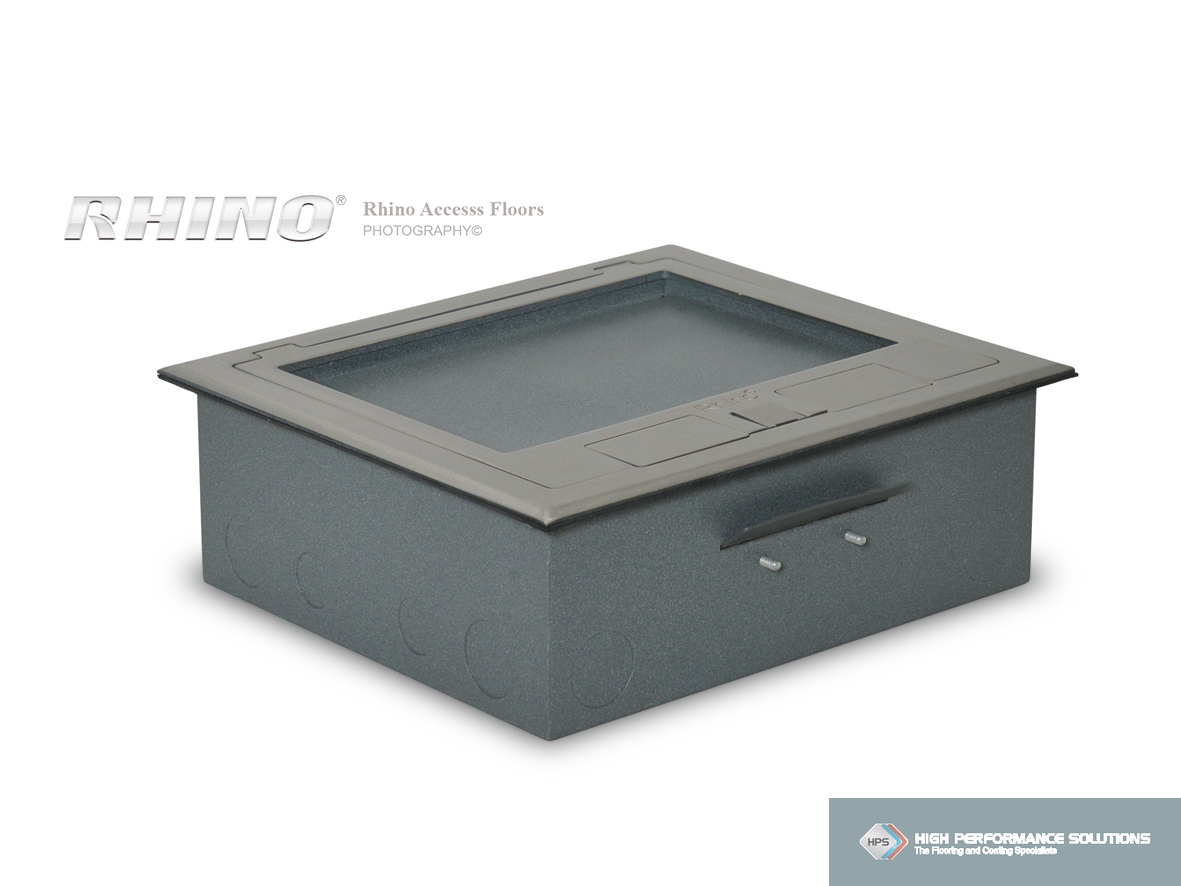

Raised Flooring Philippines - RFB-250 pix

RFB-250

Cover size:
 250mm x 220mm
 Box body size:
 230mm x 200mm
 Access floor open size:
 235mm x 205mm
The RFB-250 Floor Box features a solid, 4mm thick stainless steel lid. This box has straight edges to allow the stainless steel lid to butt join the flooring. Suitable for use with polished timber flooring, carpet tiles, stone and vinyl floor coverings. The 10mm deep rebate allows floor covering to be inserted into the lid. Two wide cable exit ports fold down when in use to allow cables to exit the floor box. When not in sue the cable exit ports finish flush with the level of the cover.

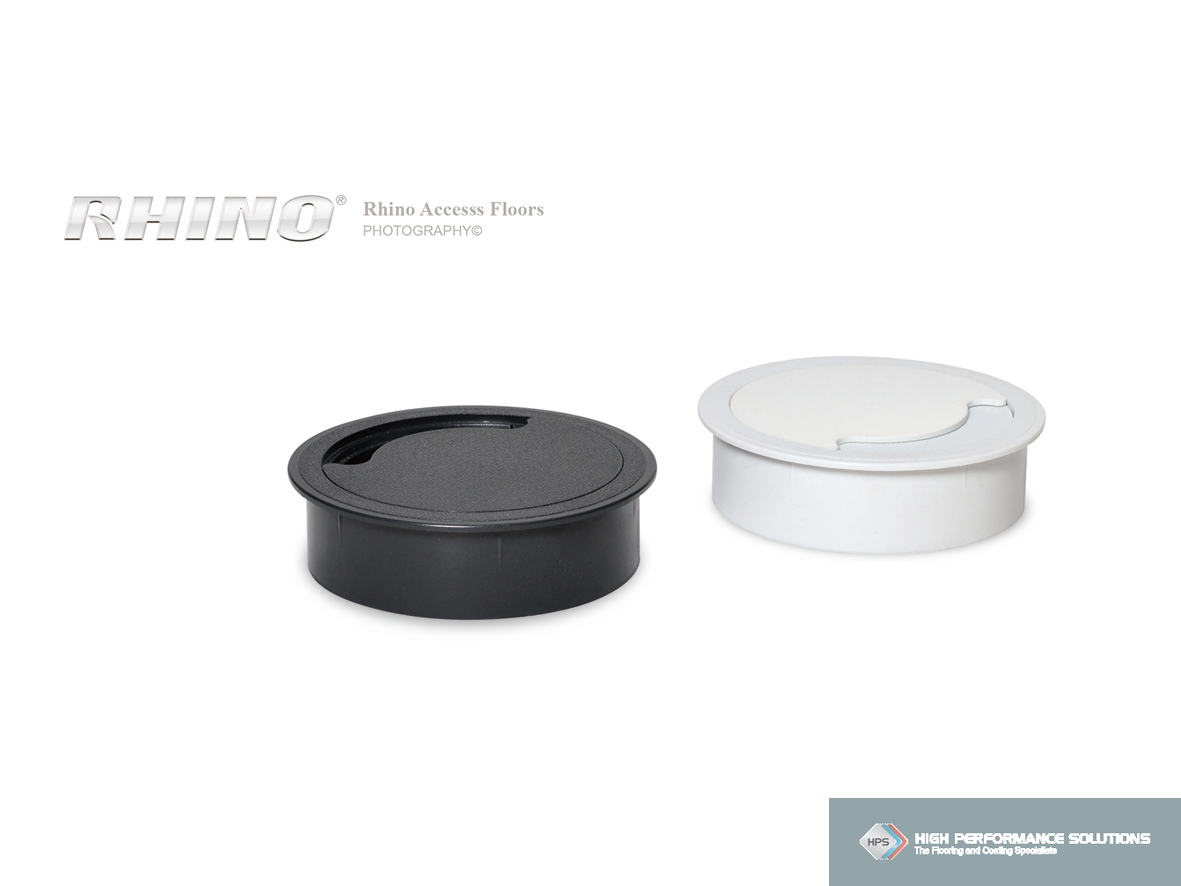

Raised Flooring Philippines - RFG-137 pix

RFB-137

Cover size:
 Ø137mm
 Body size:
 Ø125mm
 Access floor open size:
 Ø127mm
The RFG-137 floor access grommet made of durable ABS plastic, designed specifically for grommets to enable floor access for runs from below. Available in two distinguished hues of black and white, the grommet is smooth and will incorporate easily with any flooring Installation will be quick with the small hole-cut size Grommet remains low profile, regardless of its placement Rotating lid prevents heels or items from snagging or falling through the hole itself
Ask about this product
