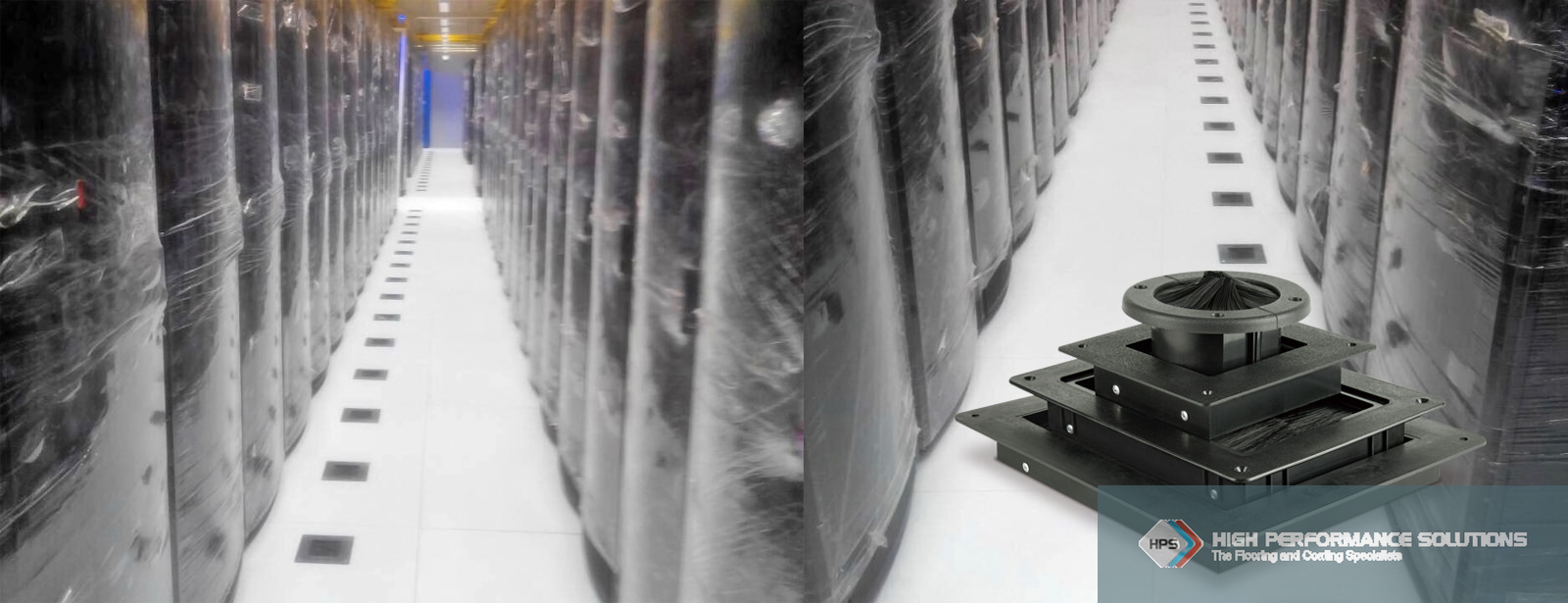

AirSeal® grommet is an airflow management to prevent cold and hot air mixing in a data center, and increase a data center’s energy efficiency while increasing its cooling capacity. The Rhino AirSeal® grommet designed to seal access floor holes required for cable routing through the data center raised access floors, these products significantly minimize cool air loss, while improving the static pressure to effectively cool data center equipment, which helps prevent expensive electrical equipment from overheating.

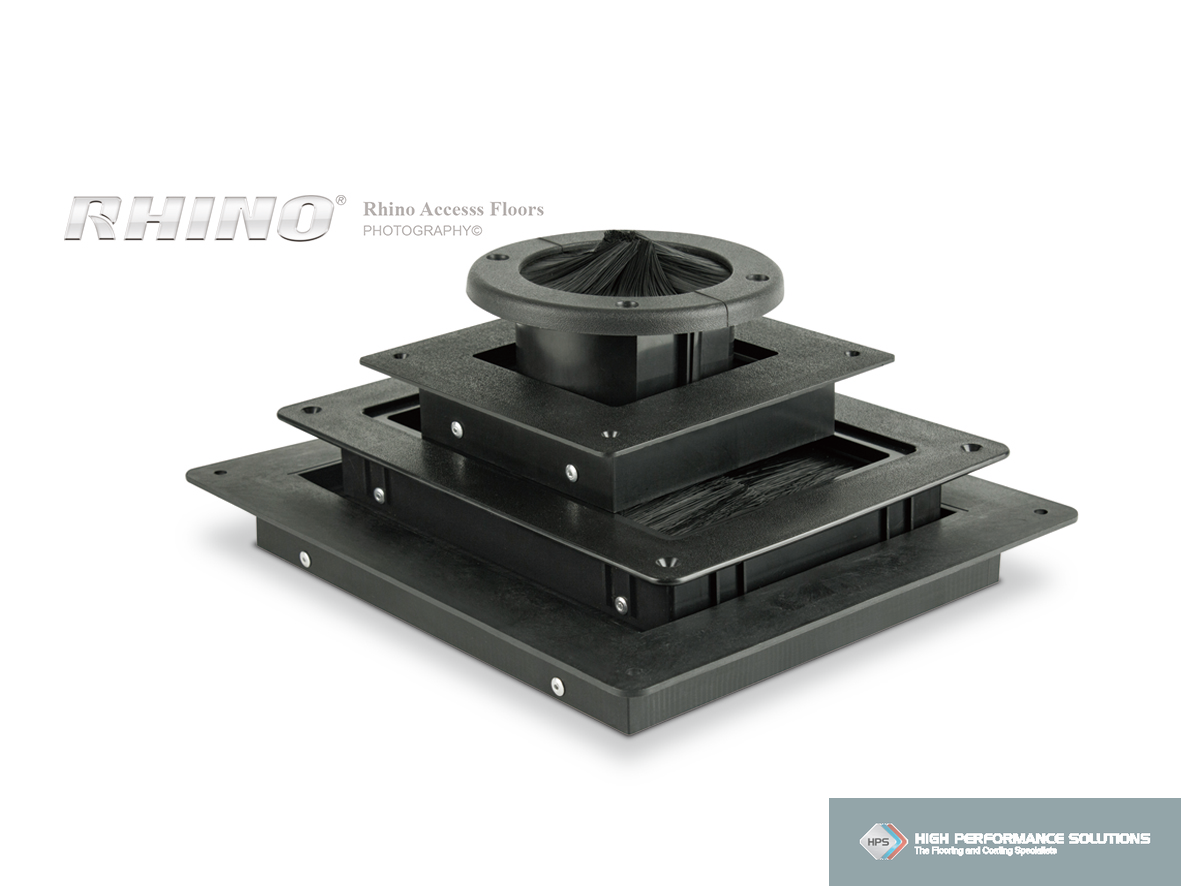

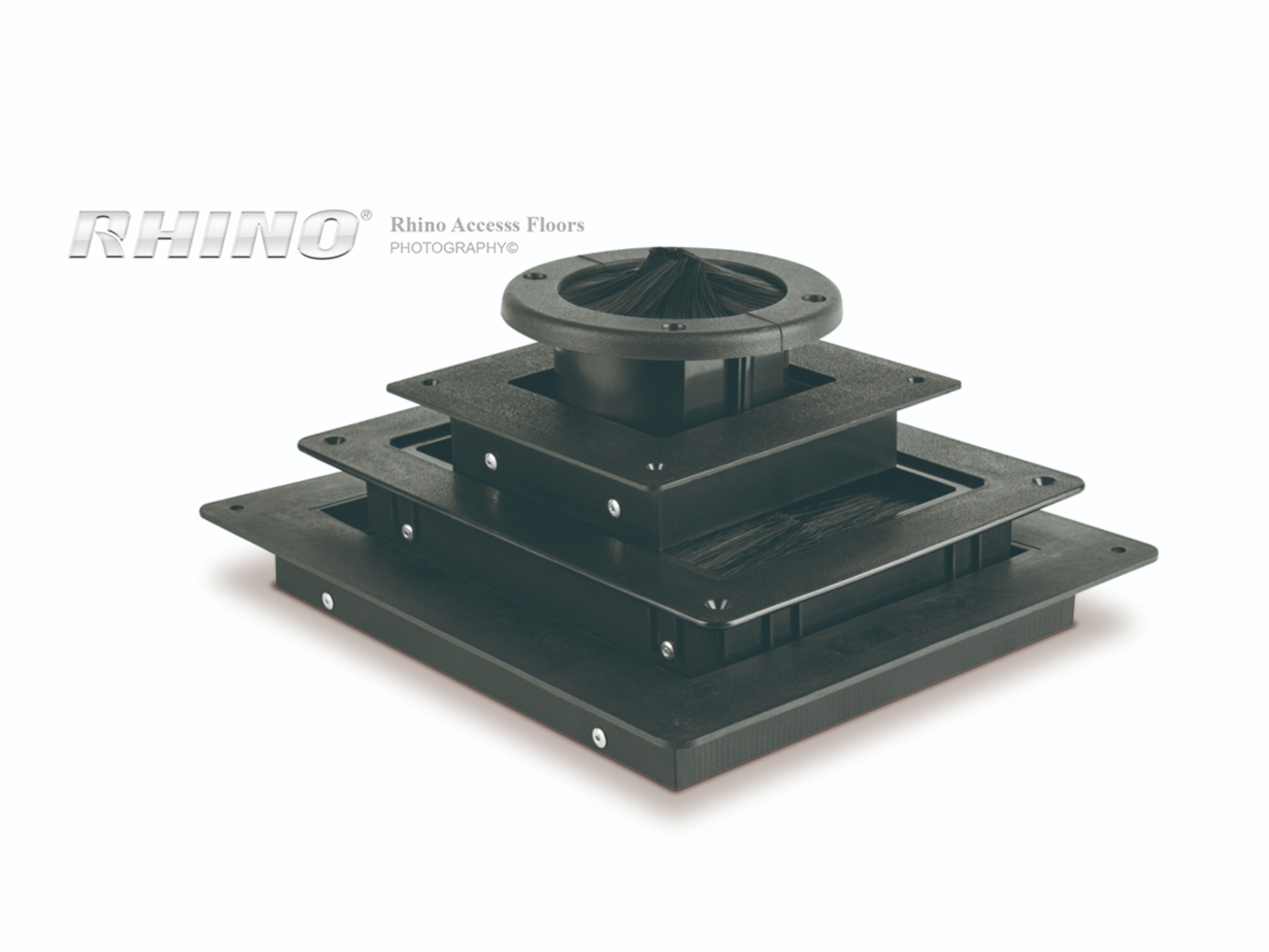

AirSeal Grommet

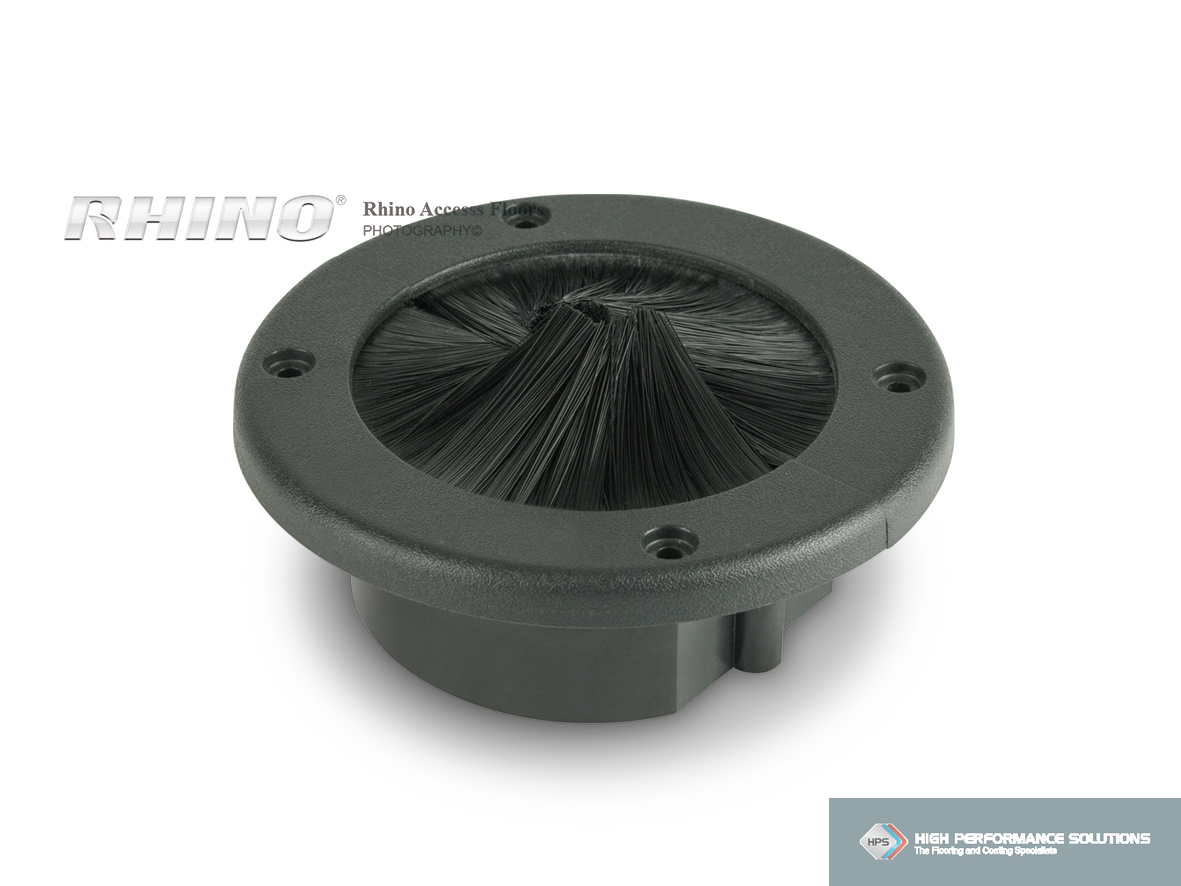

RAG-140
Cover size:
Ø145mm
Box body size:
Ø100mm
Access floor open size:
Ø105mm
Ø145mm
Box body size:
Ø100mm
Access floor open size:
Ø105mm
Together the brushes and rubber gasket work in tandem to hold cables in the center of the cutout while limiting the passage of contaminants under the floor. The dual stage sealing system provides a superior seal to prevent airflow bypass, reduce energy consumption, and aid in the implementation of hot/cold aisle containment or floor configurations.

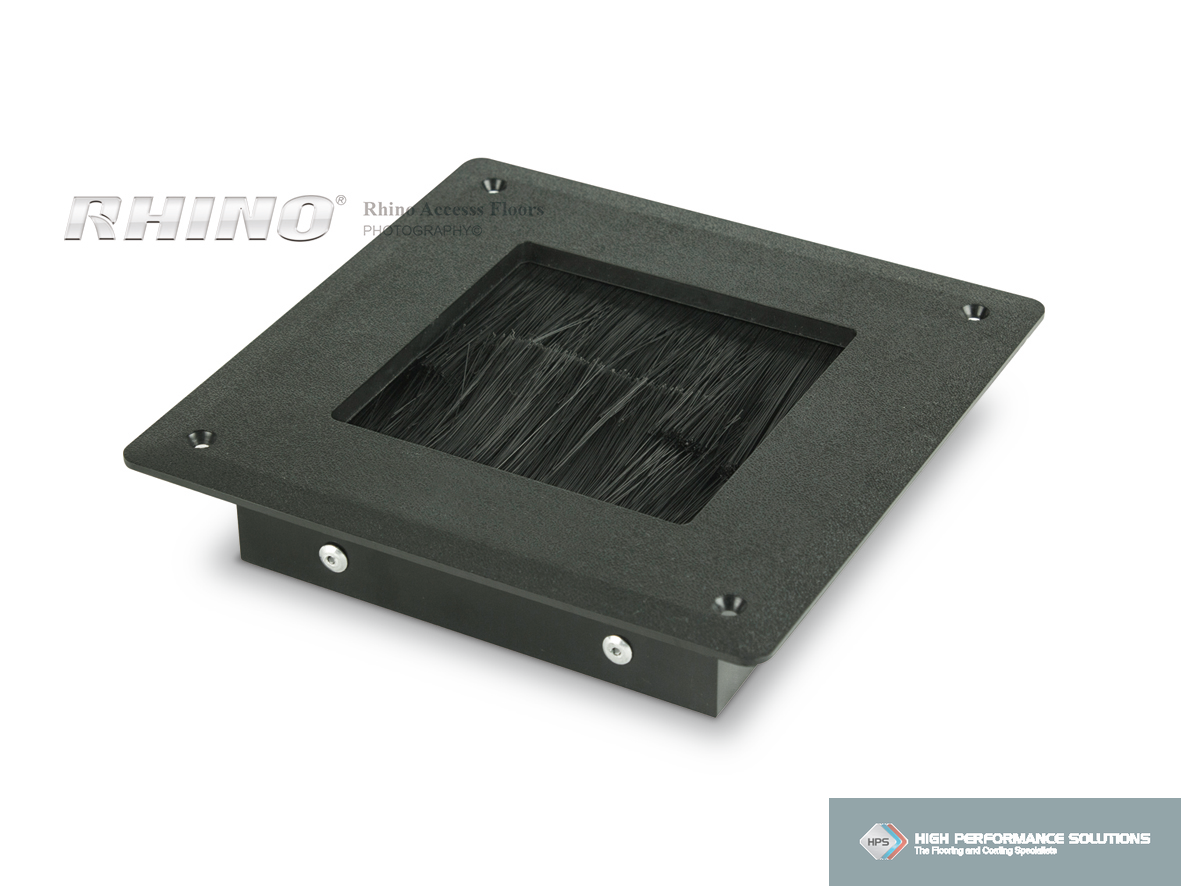

RAG-175
Cover size:
175mm x 175mm
Body size:
134mm x134mm
Access floor open size:
135mm x 135mm
175mm x 175mm
Body size:
134mm x134mm
Access floor open size:
135mm x 135mm
The RAG-175 is a square design of heavy duty air seal grommet for raised floor cutouts prior to installation of communications or power cabling. ABS polycarbonate material made provides a finished look on all raised floor panels. Solid construction and the textured surface compliment all floor coverings.

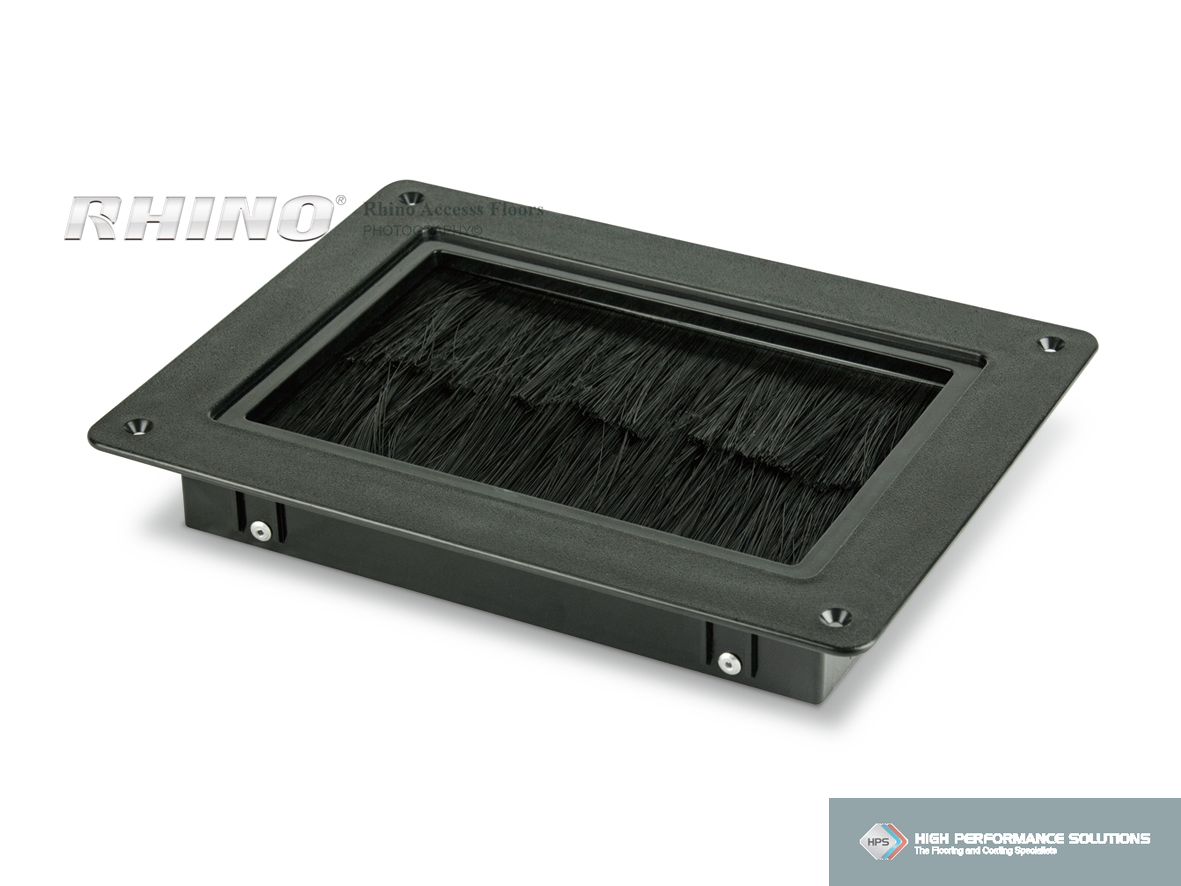

RGB-280
Cover size:
280mm x 210mm
Box body size:
235mm x 165mm
Access floor open size:
237mm x 167mm
280mm x 210mm
Box body size:
235mm x 165mm
Access floor open size:
237mm x 167mm
Cover size:
280mm x 210mm
Box body size:
235mm x 165mm
Access floor open size:
237mm x 167mm
280mm x 210mm
Box body size:
235mm x 165mm
Access floor open size:
237mm x 167mm

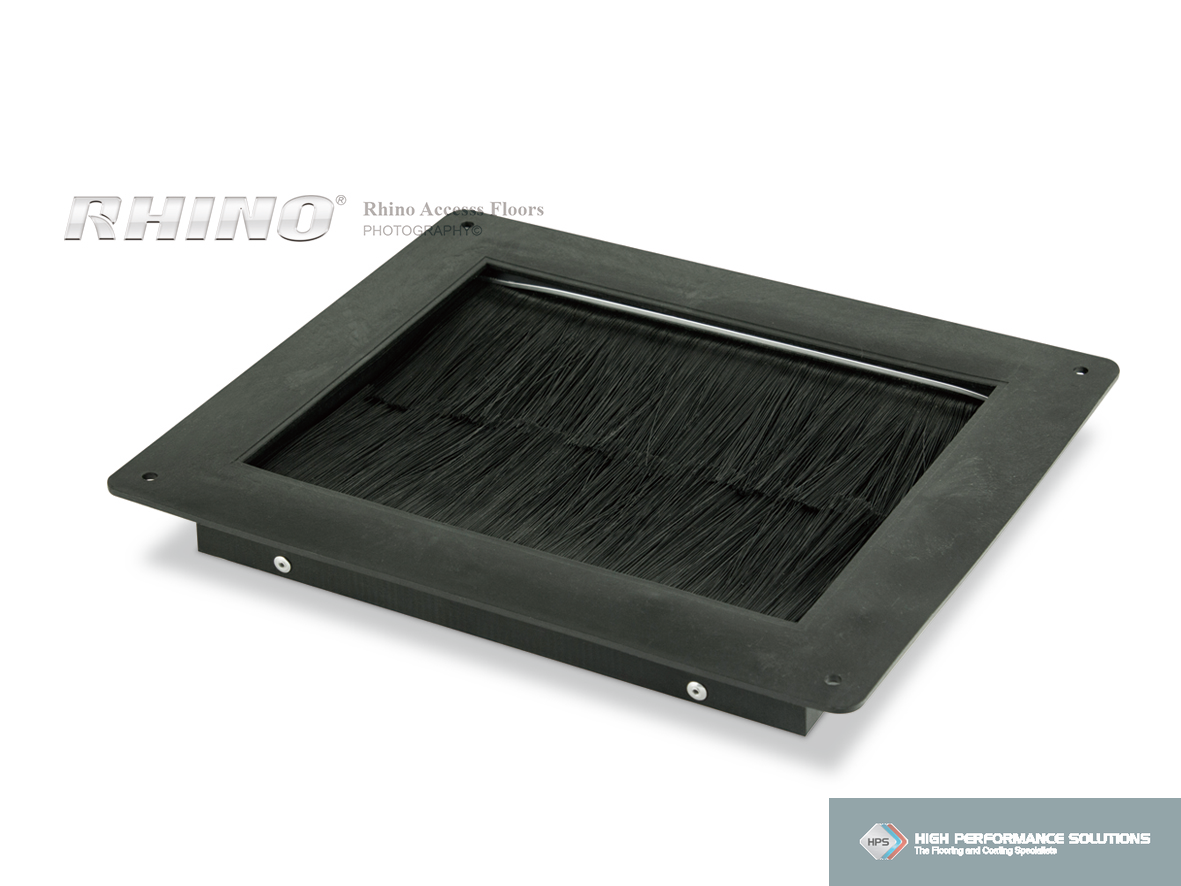

RAG-320
Cover size:
320mm x270mm
Body size:
265mm x 227mm
Access floor open size:
270mm x 230mm
320mm x270mm
Body size:
265mm x 227mm
Access floor open size:
270mm x 230mm
The RAG-320 Ultra designed to accommodate large bundles of cables through the same opening, providing flexibility for future wiring needs. ABS polycarbonate material made provides a finished look on all raised floor panels. Solid construction and the textured surface compliment all floor coverings.
